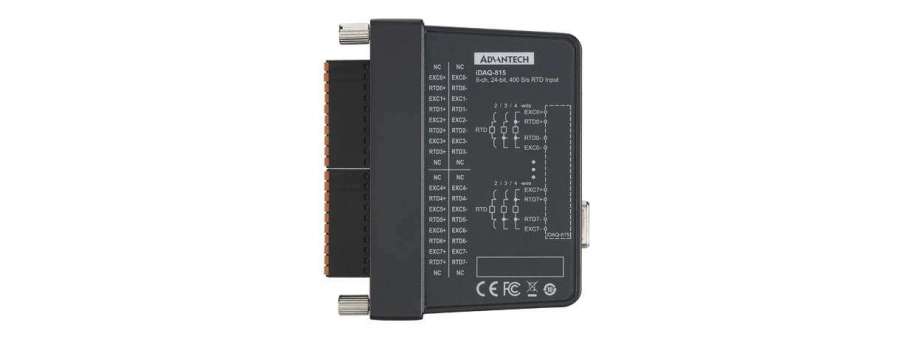

8-канальний модуль вводу RTD iDAQ 24-бітна роздільна здатність Advantech iDAQ-815
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| IDAQ-815-AE | 8-ch RTD Input iDAQ module | 37 985,5 |
- Гаряча заміна у системі iDAQ
- 8-канальна одночасна вибірка RTD
- 24-бітна роздільна здатність
- Декілька підтримуваних типів RTD і типів підключення
- Захист ізоляції до 600V RMS
Додаткова інформація
Analog Input |
|
| Channels | 8 |
| Resolution | 24 bits |
Supported RTD type and range |
|
| RTD | Temperature Range |
| Pt100 (α= 0.00385) | -200 °C to 850 °C |
| Pt100 (α= 0.00392) | -200 °C to 630 °C |
| Pt1000 (α= 0.00385) | -200 °C to 550 °C |
| NiFe604 (α= 0.00518) | -100 °C to 200 °C |
| Balco500 (α= 0.00518) | -40 °C to 150 °C |
Maximum input voltage |
±20 V |
| Over-voltage protection | ±30 V |
| Isolation protection | 600 VRMS |
| Conversion mode | High-resolution mode or high-speed mode, software configured automatically according to the sampling rate (1) |
Conversion time |
|
| High-resolution mode | 110 ms per channel, 880 ms total for all channels |
| High-speed mode | 1.5 ms per channel, 12 ms total for all channels |
Bandwidth (-3 dB) |
|
| High-resolution mode | 4.7 Hz |
| High-speed mode | 574 Hz |
Acquisition type |
Instant or buffered, software configurabl |
Buffered Acquisition |
|
| Enabled channel combination | Each channel can be enabled/disabled independently by software |
| Sample rate | 200 kS/s max., for all channels(2), simultaneous sampling, software configurable |
| Internal data buffer (FIFO) size | 512 samples |
Absolute accuracy |
|
| Voltage input Operating temperature within ±5°C of last | |
| Auto-calibration temperature | ±0.01% of full-scale range max |
| Over full operating temperature range | ±0.05% of full-scale range max. |
Current input |
|
| Operating temperature within ±5°C of last | |
| Auto-calibration temperature | ±0.1% of full-scale range max |
| Over full operating temperature range | ±0.5% of full-scale range max |
DC Performance (2) |
|
| Idle channel noise | 336 μVrms |
| ENOB | 16 bits |
AC Performance (3) |
|
| SNR | 89.21 dB |
| THD | -103.93 dB |
| THD+N | -89.06 dB |
| SFDR | 101.99 dB |
| Dynamic Range | 95.78 dB |
| Crosstalk | -100.88 dB |
Analog Trigger |
|
| Channel | 2 (start and stop) |
| Source | One of the analog input channels, software configurable |
| Threshold level | Full scale of analog input range, software configurable |
| Hysteresis | 1/256 of analog input range, software configurable |
| Polarity | Rising edge or falling edge, software configurable |
Power Requirement |
|
| Power consumption from chassis | 650 mW typ./ 900 mW max. |
Mechanical |
|
| Module dimensions | 100 x 80 x 25 mm (3.94 x 3.15 x 0.98 in.) |
| Weight | 176 g |
Environment |
|
| Operating temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating humidity | 10% to 90% RH, non-condensing |
| Storage humidity | 5% to 95% RH, non-condensing |
| Random Vibration | 5Grms, , random, 5~500Hz, 1hr/axis |
| Shock | 30G, half sine, 11ms |
Certification |
|
| EMC | CE, FCC |
