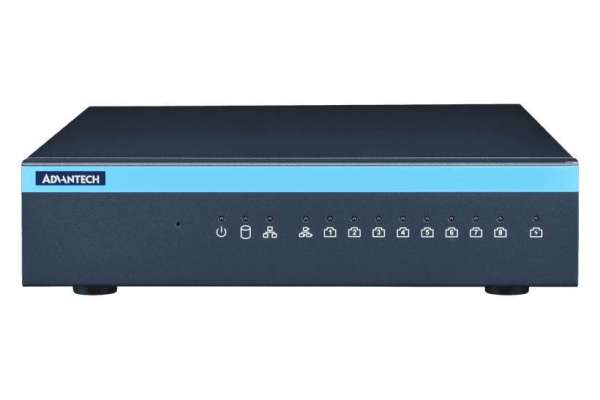

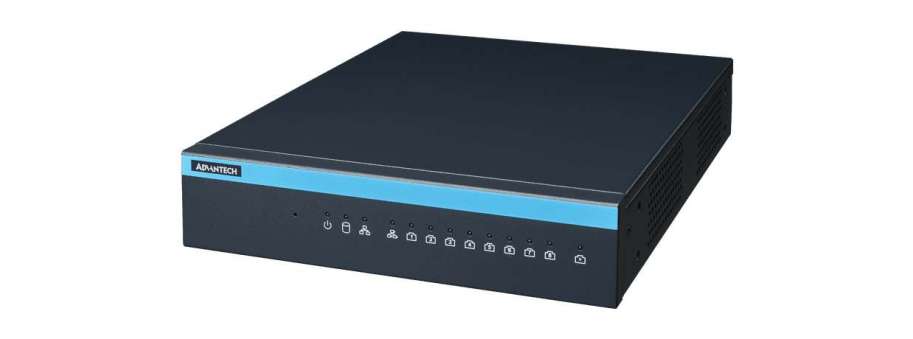

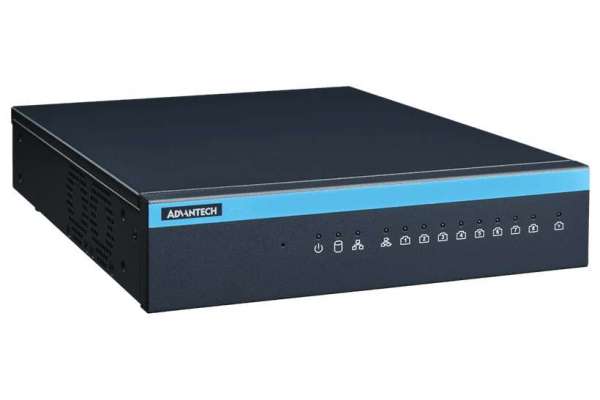

Рішення штучного інтелекту NVR з мікросервісами NVIDIA Metropolis на Jetson Orin Advantech MIC-717-OX
- Компактний дизайн із вентилятором
- Вбудований NVIDIA® Jetson Orin™ NX із продуктивністю до 100 TOPS
- Підтримка 1 x 3,5" SATA HDD або 1 x 2,5" SSD
- Інтеграція з мікросервісами NVIDIA Metropolis на Jetson
- Підтримка віддаленого моніторингу Allxon 24/7 і розгортання OTA
Додаткова інформація
| MIC-717-OX | MIC-717-OX | |
| Processor System | ||
| CPU Model | Jetson Orin NX 16GB | Jetson Orin NX 16GB |
| AI Performance | 100 TOPS | 70 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2 MB L2 + 4 MB L3 | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5 MB L2 + 4 MB L3 |
| Memory Capacity | 16 GB 128-bit LPDDR5 102.4 GB/s | 8 GB 128-bit LPDDR5 102.4 GB/s |

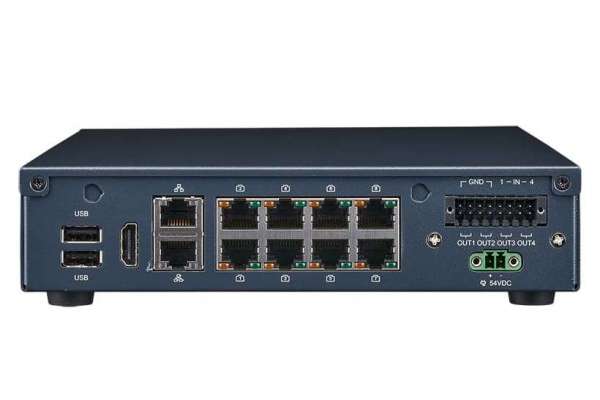

I/O |
||
| Ethernet | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps |
| Display | HDMI (max. resolution 3840 x 2160 @ 60 Hz) | HDMI (max. resolution 3840 x 2160 @ 60 Hz) |
| USB | 1 x USB 3.0 ((Internally used for recovery mode) 2 x USB 2.0 | 1 x USB 3.0 ((Internally used for recovery mode) 2 x USB 2.0 |
| Digital I/O | 4-ch DI, 4-ch DO | 4-ch DI, 4-ch DO |
| PoE + Ports | 8 x RJ-45 (10/100 Mbps + PoE / total power: 123.2 W) | 8 x RJ-45 (10/100 Mbps + PoE / total power: 123.2 W) |
Expansion |
||
| M.2 | 1 x M.2 3042 (B-Key, signal: USB) | 1 x M.2 3042 (B-Key, signal: USB) |
| SIM | 1 x Nano SIM slot | 1 x Nano SIM slot |
| TPM | 1 x TPM 2.0 | 1 x TPM 2.0 |
Storage |
||
| M.2 | 1 x M.2 2280 (M-Key, NVMe, signal: PCIe x4) | 1 x M.2 2280 (M-Key, NVMe, signal: PCIe x4) |
| HDD/SSD | 1 x 3.5" HDD or 1 x 2.5" SSD | 1 x 3.5" HDD or 1 x 2.5" SSD |
Power |
||
| Power Input | 54 V DC, 4.26 A | 54 V DC, 4.26 A |
| Power Supply | Adapter (external) | Adapter (external) |
Environment |
||
| Operating Temperature* | 0 to 50°C (32 to 122°F) | 0 to 50°C (32 to 122°F) |
| Operating Humidity | 95% relative humidity @ 40°C (104°F), non-condensing | 95% relative humidity @ 40°C (104°F), non-condensing |
| Vibration | 3 Grms @ 5 to 500 Hz, random, 1 hr/axis | 3 Grms @ 5 to 500 Hz, random, 1 hr/axis |
| Shock | 10G / 11ms | 10G / 11ms |
Mechanical |
||
| Dimensions (W x D x H) | 254.5 x 195.0 x 44.45 mm (10.0 x 7.67 x 1.75 in) | 254.5 x 195.0 x 44.45 mm (10.0 x 7.67 x 1.75 in) |
| Weight | 1.14 kg (2.5 lb) | 1.14 kg (2.5 lb) |
| Installation | Desktop / wallmount | Desktop / wallmount |
BSP |
||
| Jetpack | Above 5.1 | Above 5.1 |
| Certifications | UL, cUL, CE, UKCA, RoHS, Reach (SVHC) | UL, cUL, CE, UKCA, RoHS, Reach (SVHC) |
| Safety | UL/CSA/IEC/EN 62368-1 | UL/CSA/IEC/EN 62368-1 |
