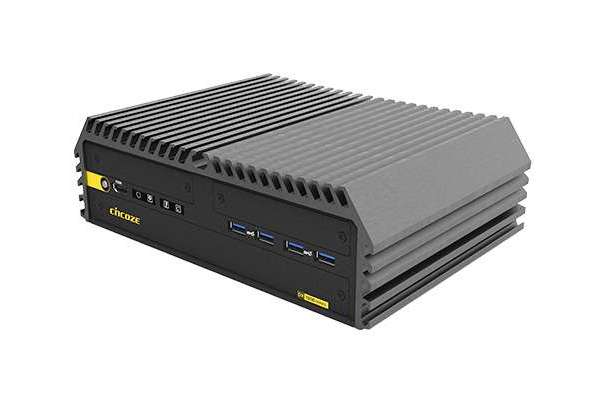

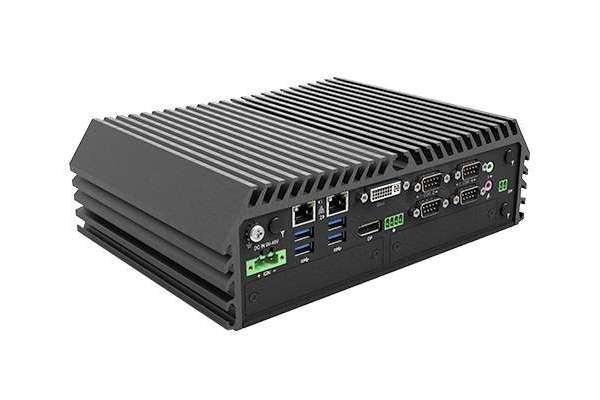

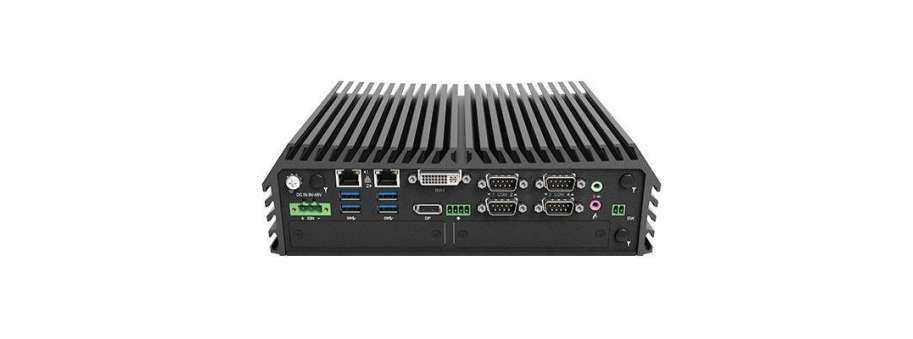

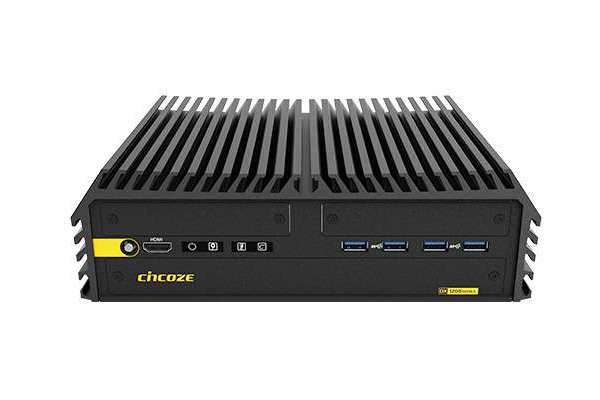

Високопродуктивний захищений вбудований комп'ютер на Intel® Core 14/13/12-го пок. Cincoze DX-1200

Вартість та наявність

Код товару Опис товару Ціна з ПДВ Наявність
DX-1200-R10 Високопродуктивний компактний комп'ютер Cincoze DX-1200-R10, 13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer  68 231,6

DX-1200 - безвентиляторний вбудований комп'ютер, у якому екстремальна продуктивність укладена в міцний і компактний корпус, що робить його ідеальним вибором для інтелектуального виробництва, машинного зору та граничних застосунків штучного інтелекту. Процесор Intel® Core™ 14-го/13-го/12-го покоління (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) (TDP до 65 Вт) і пам'ять DDR5 5600 МГц забезпечують високу швидкість обчислень, а додаткові функції, включно з багатим власним вводом/виводом і модульною конструкцією розширення, відповідають вимогам широкого спектра застосунків.

  • Процесори Intel® 14/13/12th Gen. Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 (макс. 65 Вт TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC / non ECC type Memory, Up to 5600MHZ, 64GB
  • 4-х незалежних дисплея (HDMI / DP / DVI-I)
  • 1x M.2 Key E Type 2230 для модуля Intel CNVi / бездротового модуля
  • Технологія CMI для додаткового розширення модулів вводу/виводу
  • Технологія CFM для датчика запалювання живлення та функції PoE
  • Широка робоча температура -40°C - 70°C
  • Стандарт безпеки: UL, cUL, CB, IEC, EN 62368-1

Додаткова інформація

System

Processor

14th Generation Intel® Raptor Lake-S Refresh Series CPU:

- Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W

- Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W

- Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W

- Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W

- Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W

- Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W

- Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W

- Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W

- Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W

- Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W

- Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W

- Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W

- Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W

- Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W

- Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W

- Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W

- Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W

13th Generation Intel® Raptor Lake-S Series CPU:

- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W

- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W

- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W

- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

12th Generation Intel® Alder Lake-S Series CPU:

- Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W

- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W

- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W

- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W

- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W

- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W

- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W

- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W

- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W

- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W

- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset Intel R680E Chipset
Memory

2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 64GB.

- Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.

- Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.

BIOS AMI BIOS

Graphics

Graphics Engine
  • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
  • Integrated Intel® UHD Graphics 730: Core™ i3
  • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output Supports Quad Independent Display
DVI

1x DVI-I Connector

- VGA: 1920 x 1080 @ 60 Hz

- DVI-D: 1920 x 1200 @ 60 Hz

DP

1x DP Connector: 4096 x 2304 @ 60Hz

* Verified maximum resolution: 3840 x 2160 @ 60Hz

HDMI 1x HDMI Connector: 3840 x 2160 @ 30Hz

Audio

Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O

LAN

2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)

- GbE1: Intel® I219

- GbE2: Intel® I210

COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 4 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 4 x USB 3.2 Gen1x1 (5Gbps), Type A

Storage

SSD/HDD 2x 2.5" SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0)
mSATA 2x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket )
RAID Support RAID 0/1/5/10

Expansion

Mini PCI Express 2x Full-size Mini-PCIe Socket
M.2 E Key Socket 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
SIM Socket 1x SIM Socket
CMI (Combined Multiple I/O) Interface
  • 2x High Speed CMI Interface for optional CMI Module Expansion
  • 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Other Function

External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset

Power

Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9-48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
  • 35WCPU: 201.17W
  • 65WCPU: 274.80W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during b
Inrush Current (Peak)
  • 35W CPU: 4.151 A@24V
  • 65W CPU: 4.360 A@24V

Physical

Dimension ( W x D x H ) 242 x 173 x 75 mm
Weight Information 3.05 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL / VESA / Side Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Operating System

Windows Windows®11, Windows® 10
Linux Ubuntu Desktop 22.04 LTS

Environment

Operating Temperature
  • 35W TDP Processor: -40°C to 70°C
  • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 70°C (Non-condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN 50155 (EN 50121-3-2 Only)
  • E-Mark
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
Fire Protection EN 45545-2
