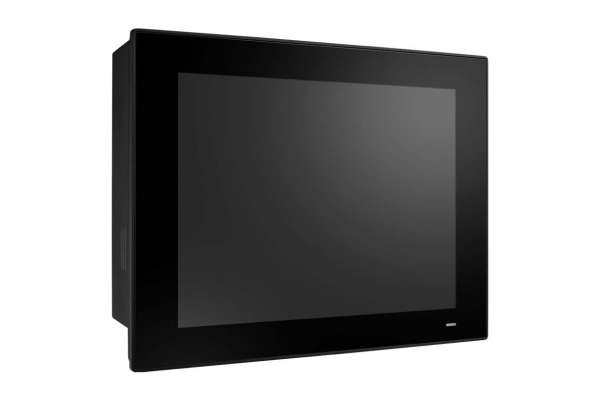

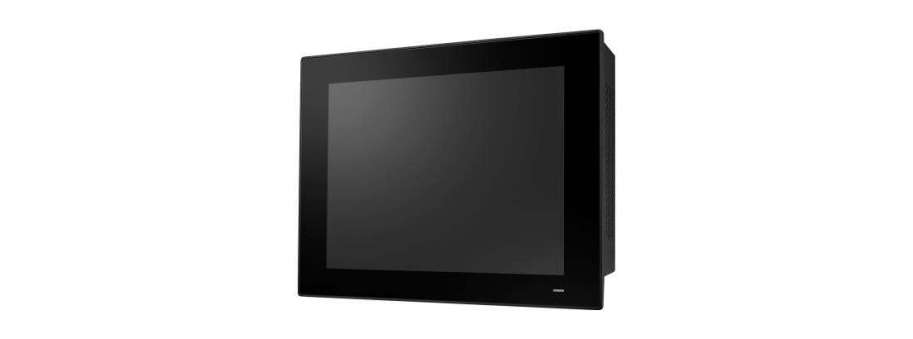

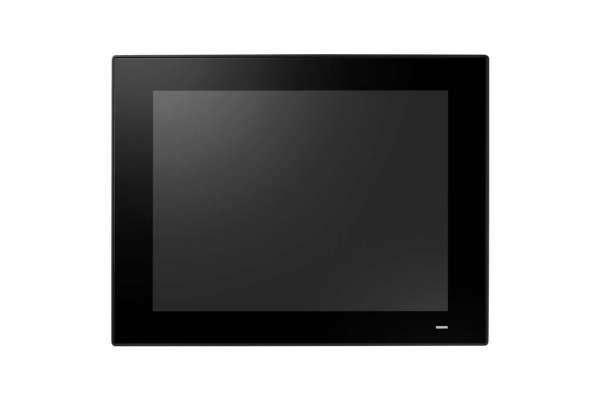

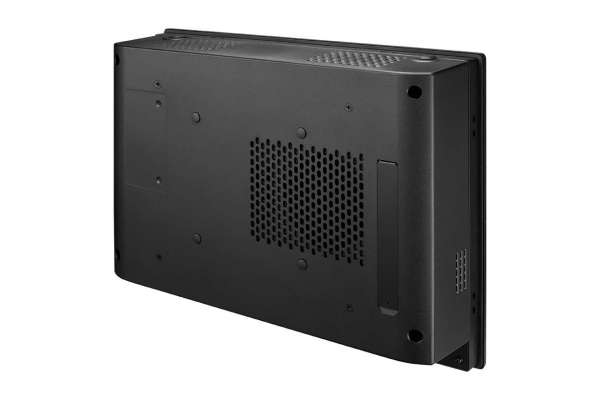

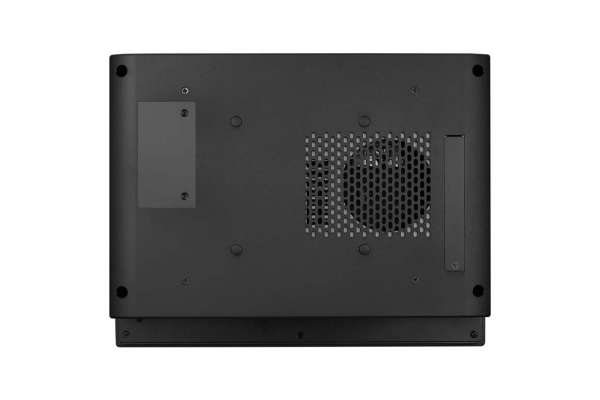

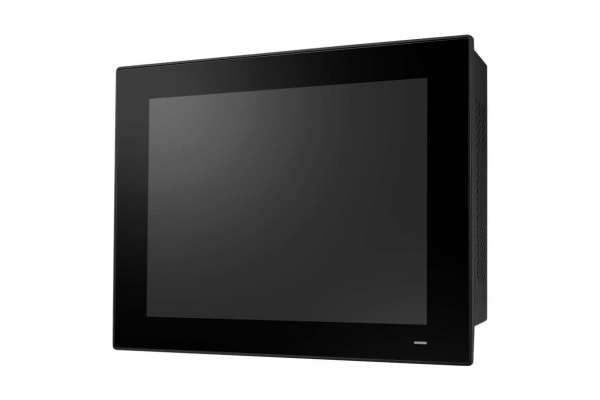

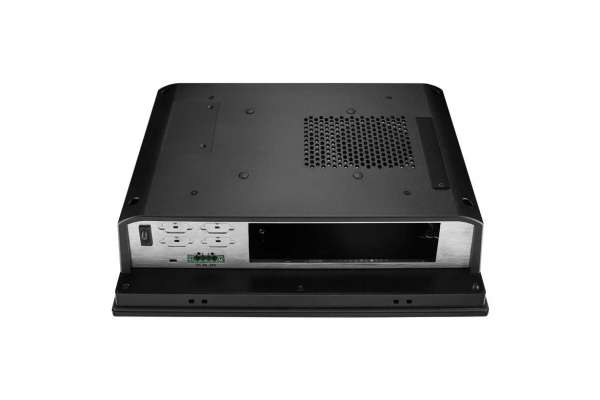

12.1" шасі для панельного ПК з можливістю вибору материнських плат Mini-ITX Advantech PPC-612
Вартість та наявність
| Код товару | Опис товару | Ціна з ПДВ | Наявність |
|---|---|---|---|
| PPC-MB-8260B | Материнська плата Advantech, Mini-ITX M/B support 6/7th Core i for PPC-61X1C-RTAE, 2xLan Realtek 8119i | 17 990,6 | |
| PPC-MB-610B | Материнська плата Advantech PPC-MB-610B, Mini-ITX M/B support 8/9th Core i for PPC-MB-610 | 24 234,3 | |
| PPC-MB-620A | Материнська плата Advantech PPC-MB-620 12th Core i M/B,H610E,3 x LAN for PPC-600 | 24 486,5 | |
| PPC-MB-620B | Материнська плата Advantech PPC-MB-620 12th Core i M/B,Q670E,2 x LAN for PPC-600 | 27 707,1 |
- 12.1" ПК з плоским екраном і резистивним сенсорним екраном (за замовчуванням) або проекційним ємнісним сенсорним екраном (опція)
- Підтримує сертифіковані материнські плати mini-ITX (процесор з TDP до 35 Вт)
- Слоти розширення PCI або PCIe
- Світлодіодні індикатори стану живлення на передній панелі
- Передня панель з класом захисту IP66
Додаткова інформація
Processor System |
||||
| M/B | PPC-MB-8260B | PPC-MB-610B | PPC-MB-620A | PPC-MB-620B |
| CPU | Intel® 6/7th Core™ i LGA1151 | Intel® 8/9th Core™ i LGA1151 | Intel® 12/13th Core™ i LGA1700 | Intel® 12/13th Core™ i LGA1700 |
| TDP | 35W | 35W | 35W | 35W |
| Chipset | H110 | Q370 | H610E | Q670E |
| Memory | 1 x SODIMM DDR4, 2133 MHz (max.16G) | 2 x SODIMM DDR4 , 2666 MHz (max.32 GB ) | 2 x SODIMM DDR5 , 4800 MHz , (max,64 GB) | 2 x SODIMM DDR5 , 4800 MHz , (max,64 GB) |
| Network (LAN) | 2 x 1Gb Realtek 8119i |
|
|
|
| I/O ports |
|
|
|
|
| Expansion |
1 x full-size mSATA or mini PCIe 1 x PCIe x4 slot for riser card
1 x PCI (optional)
1 x PCIe x4 (optional)
|
1 x M.2 M key 2280 (PCIe x 4 & SATA)
1 x M.2 E key 2230 (PCIe & USB2.0)
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x PCIe x16 (optional)
|
1 x M.2 M key 2280 (PCIe x 4 & SATA)
1 x M.2 E key 2230 (PCIe & USB2.0)
1 x M.2 B key 3042/3052 (PCIe & USB2.0)
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x PCIe x16 (optional, only for PPC-MB-6x0)
|
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x PCIe x16 (optional, only for PPC-MB-6x0)
|
| Storage | 1 x 2.5" SATA HDD bay | 1 x 2.5" SATA HDD bay | 1 x 2.5" SATA HDD bay | 1 x 2.5" SATA HDD bay |
| Speaker | 2 x 1 W | 2 x 1 W | 2 x 1 W | 2 x 1 W |
| Fan | 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) | 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) | 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) | 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) |
OS Support |
||||
| OS Support | Windows 7, Windows 8.1, Windows 10 LTSC (**KBL CPU only support windows 10 64bit) | Windows 10 LTSC, Windows 11, Linux | Windows 10 LTSC, Windows 11, Linux | Windows 10 LTSC, Windows 11, Linux |
Physical Characteristics |
||||
| Dimensions (W x H x D) | 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) | 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) | 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) | 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) |
| Weight | 3.98kg (8.76lb) | 3.98kg (8.76lb) | 3.98kg (8.76lb) | 3.98kg (8.76lb) |
Power Comsumption |
||||
| Input Voltage | 24VDC ± 20% | 24VDC ± 20% | 24VDC ± 20% | 24VDC ± 20% |
| Power Consumption | 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) | 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) | 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) | 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) |
LCD Display |
||||
| Display Type | 12.1" TFT LED panel | 12.1" TFT LED panel | 12.1" TFT LED panel | 12.1" TFT LED panel |
| Max. Resolution | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1024 x 768 |
| Viewing Angle | 89 (left), 89 (right), 89 (up), 89 (down) | 89 (left), 89 (right), 89 (up), 89 (down) | 89 (left), 89 (right), 89 (up), 89 (down) | 89 (left), 89 (right), 89 (up), 89 (down) |
| Luminance(cd/m2 ) | 600 | 600 | 600 | 600 |
| Contrast Ratio | 1000 | 1000 | 1000 | 1000 |
| Backlight Lifetime | 50,000 hr | 50,000 hr | 50,000 hr | 50,000 hr |
Touchscreen |
||||
| Touch Type | 5-wire analog resistive | 5-wire analog resistive | 5-wire analog resistive | 5-wire analog resistive |
| Light Transmission | 80+/-5% | 80+/-5% | 80+/-5% | 80+/-5% |
| Controller | USB interface | USB interface | USB interface | USB interface |
| Durability (Touches) | 35 million touches | 35 million touches | 35 million touches | 35 million touches |
Environment |
||||
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) | 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) | 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) | 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) |
| Storage Temperature | -40 ~ 60 °C (-40 ~ 140 °F) | -40 ~ 60 °C (-40 ~ 140 °F) | -40 ~ 60 °C (-40 ~ 140 °F) | -40 ~ 60 °C (-40 ~ 140 °F) |
| Relative Humidity | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) |
| Shock | Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant | Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant | Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant | Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant |
| Vibration | Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant | Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant | Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant | Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant |
| EMC | CE,FCC,Class A,UKCA,VCCI | CE,FCC,Class A,UKCA,VCCI | CE,FCC,Class A,UKCA,VCCI | CE,FCC,Class A,UKCA,VCCI |
| Safety | CB,CCC,UL,UKCA | CB,CCC,UL,UKCA | CB,CCC,UL,UKCA | CB,CCC,UL,UKCA |
| Front Panel Protection | IP66 compliant | IP66 compliant | IP66 compliant | IP66 compliant |
