10.4" Fanless Panel PC with Intel® Celeron® J6412 Processor Advantech PPC-310

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-310-RJ60A Панельний комп'ютер Advantech PPC-310 Intel Celeron J6412 fanless 10.1" Res Panel PC  48 525,2
PPC-310-PJ60A Панельний комп'ютер Advantech PPC-310 Intel Celeron J6412 fanless 10.1" PCT Panel PC  48 525,2

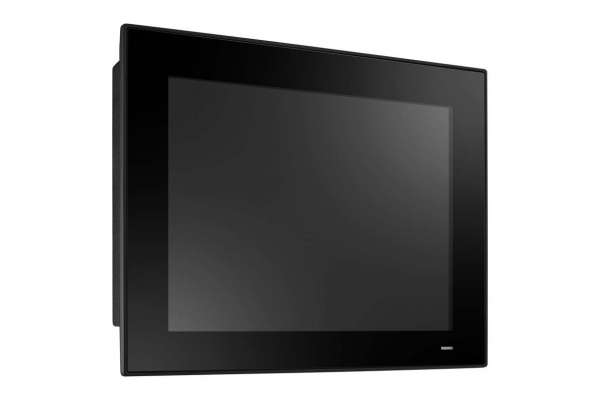

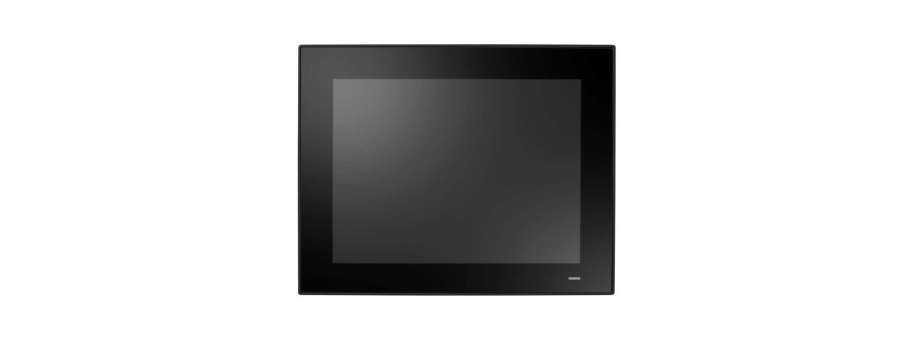

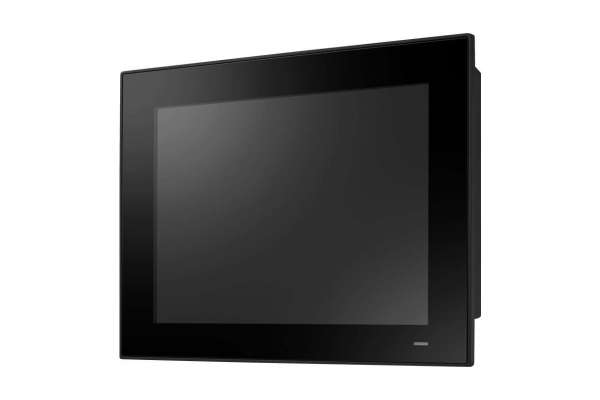

PPC-310 EHL is an industrial panel PC with 10.4" XGA LCD, powered by Intel Celeron quad core J6412 processor. With aesthetic aluminum alloy enclosure, PPC-310 EHL ensures fanless reliability and easy maintenance in diverse industrial applications. Moreover, it provides more faster and flexible connection via 2 x 2.5G Ethernet port, 2 x USB 3.1 and 1 x Type C (USB only). The PPC-310 EHL is ideal for MES, processing and general industrial equipment integration.

  • Industrial-grade 10.4" XGA TFT LCD with 30K backlight lifetime
  • Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
  • Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
  • Up to 32 GB DDR4 SDRAM
  • 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
  • Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
  • Supports E-key for wireless module
  • Supports expansion via M.2 slot
  • Supports Windows Embedded Linux and Android OS
  • Supports VESA 75 x 75 mounting holes
  • Dual 2.5GBASE-T Ethernet Supports Time-Sensitive Network(TSN) technology

Additional information

System

PPC-310-RJ60A PPC-310-PJ60A
CPU Intel® Celeron® J6412 quad core Intel® Celeron® J6412 quad core
Frequency 2.0 GHz 2.0 GHz
L2 Cache 1.5 MB 1.5 MB
Memory 1 x SDRAM DDR4 3200 MHz (max. 32G) 1 x SDRAM DDR4 3200 MHz (max. 32G)
Storage
  • 1 x 2.5" SATA bay (optional; requires a bracket module for installation)
  • 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280)
  • 1 x 2.5" SATA bay (optional; requires a bracket module for installation)
  • 1 x M.2 slot: M key for storage (SATA only, 2242 & 2280)
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I225-LM) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I225-LM)

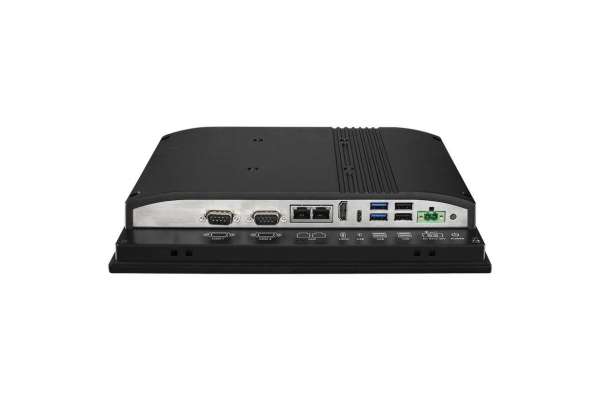

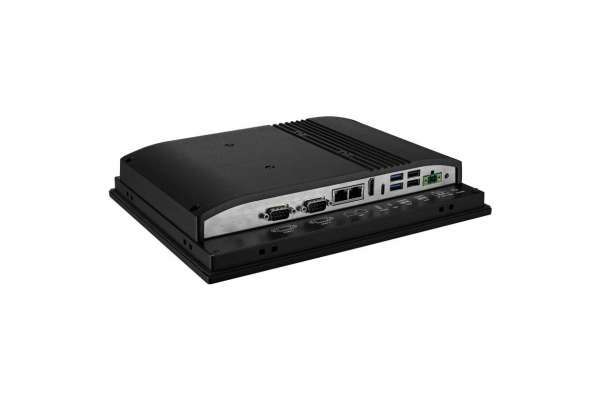

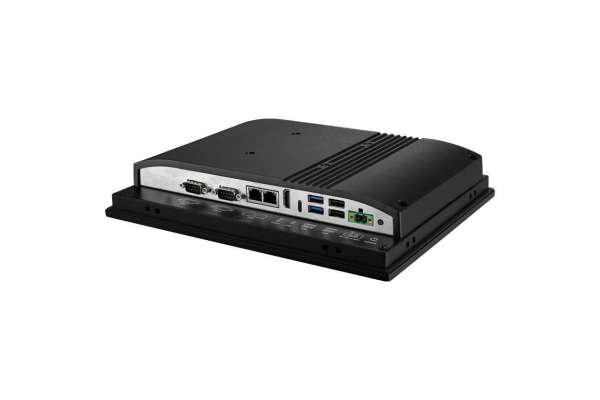

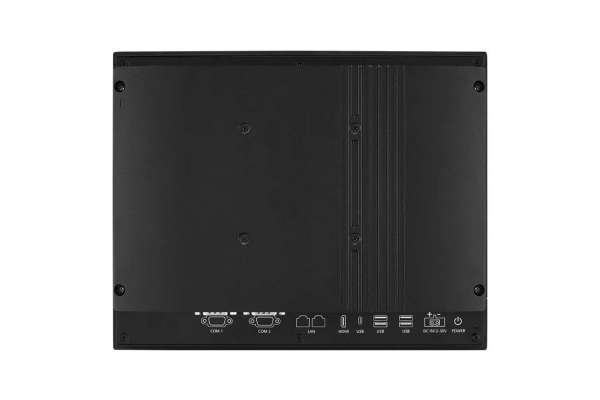

I/O
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 2.0, 2 x USB 3.1
  • 1 x TypeC (USB only)
  • 1 x HDMI1.4
  • 1 x TPM 2.0
  • 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 2.0, 2 x USB 3.1
  • 1 x TypeC (USB only)
  • 1 x HDMI1.4
  • 1 x TPM 2.0
Expansion 1 x M.2 2230 E-key for wireless card 1 x M.2 2230 E-key for wireless card
Watchdog Timer 255 timer levels, set up by software 255 timer levels, set up by software

Physical Characteristics

Dimensions 271.8 x 216.8 x 49.7 mm (2.07 x 8.53 x 1.96 in) 271.8 x 216.8 x 49.7 mm (2.07 x 8.53 x 1.96 in)
Weight 3.1 kg (6.83 lb) 3.1 kg (6.83 lb)

OS Support

OS Support Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux, Android Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux, Android

Power Consumption

Input Voltage 12 ~ 30 VDC 12 ~ 30 VDC
Power Consumption 35W (Burn-in test 8.1 in Windows 10, 64-bit) 35W (Burn-in test 8.1 in Windows 10, 64-bit)

LCD

Display Type 10.4" TFT LCD (LED backlight) 10.4" TFT LCD (LED backlight)
Resolution 1024 x 768 1024 x 768
Viewing Angle 80 (left), 80 (right), 88 (up), 88 (down) 80 (left), 80 (right), 88 (up), 88 (down)
Luminance (cd/m2 350 350
Contrast Ratio 1000 1000
Backlight Lifetime 30,000 hr (min.) 30,000 hr (min.)

Touchscreen

Touch Type 5-wire resistive touch Projected Capacitive Multi-touch
Light Transmission 80±5% at 550 nm wavelength 88±2%
Controller USB interface USB interface
Durability (Touches) Greater than 35 million touches in one location without failure Cover glass > 7H

Environment

Operating Temperature -10 ~ 50°C (14 ~ 122°F) -10 ~ 50°C (14 ~ 122°F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI, UKCA, VCCI CE, FCC Class B, BSMI, UKCA, VCCI
Safety CB, CCC, UL, UKCA CB, CCC, UL, UKCA
Front Panel Protection IP66 compliant IP66 compliant
