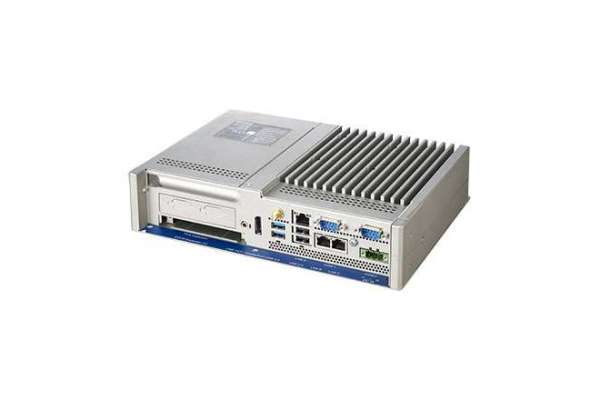

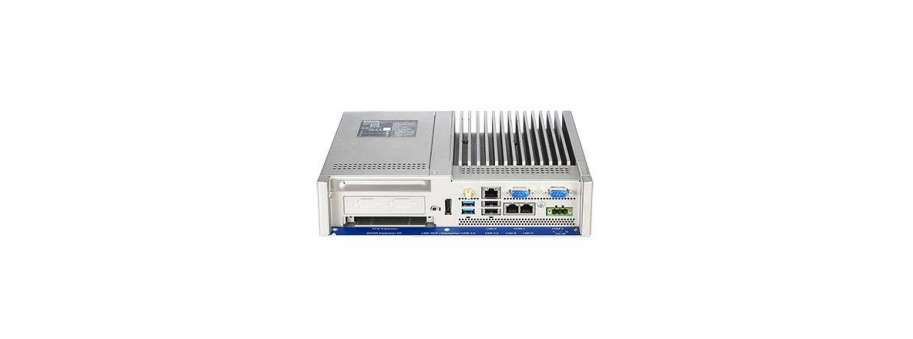

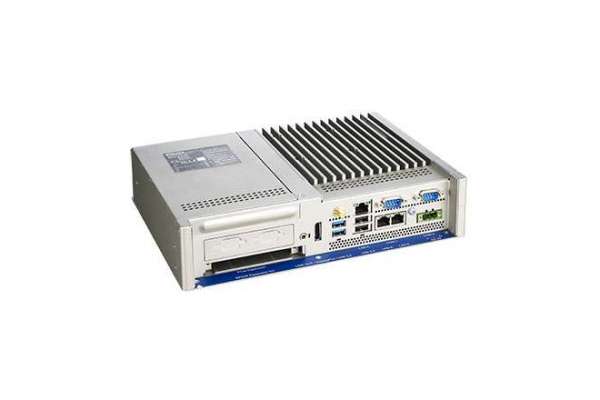

Modular TPC - Computing Box Module with Intel® TPC-B500 6th Gen. Core™ i CPU Advantech TPC-B500

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-B500-633BE Control Box Module, Intel i3-6100U, 8GB, iDoor  95 052,5
TPC-B500-653BE Control Box Module, Intel i5-6300U, 8GB, iDoor  108 377,0
TPC-B500-673BE Control Box Module, Intel i7-6600U, 8GB, iDoor  119 297,0

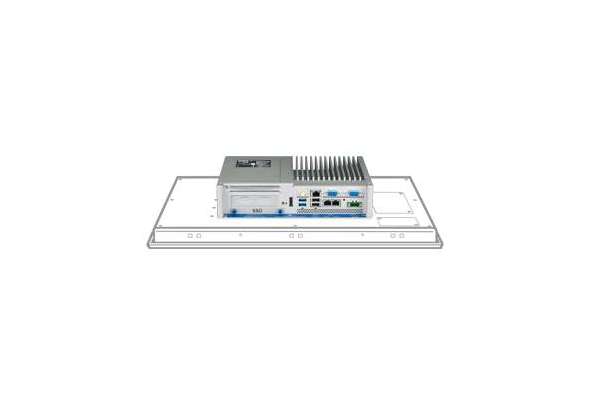

TPC computing box modules are powered by 6th Gen Intel® Core™ processors combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. With a flexible modular design, they allow users to interchange video interfaces such as industrial monitors which can be used as an interface of two controllers simultaneously via the PiP (Picture-in-Picture) feature or expand the signal transmission distance to 100m via iLINK technology.

  • Computing Box powered by Intel® Core™ i3-6100U/i5-6300U/ i7-6600U with 8GB SODIMM
  • Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology)
  • Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
  • 2 x Full-size mini PCIe
  • 1 x Half-size PCIe (Max. Dimension of PCIe card: 167.65mm x 64.41mm x 14.48mm (D x W x H)
  • M.2 and SSD expansion
  • Supports TPM2.0 hardware security

Additional information


Certification BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System Fanless design
Dimensions (W x H x D) 269 x 203 x 58.50 (mm)
Enclosure Die cast aluminum alloy
Mounting VESA Mount, Desktop, Wall or Panel Mount
OS Support Windows 10 IoT Enterprise LTSC
Security TPM 2.0 (built-in)
Power Input 24 VDC ± 20%
Weight (Net) 3 kg (6.61 lbs)

System Hardware

  • 6th Gen Intel® Core™ i3-6100U 2.30 GHz
  • 6th Gen Intel® Core™ i5-6300U 2.40 GHz
  • 6th Gen Intel® Core™ i7-6600U 2.60 GHz
Memory 8GB DDR4 SDRAM (up to 32GB)
  • 1 x M.2 (2280) SATA
  • 1 x 2.5" SATA SSD
  • 1 x CFast (optional via iDoor module)
  • 1 x 1GbE
  • 2 x 2.5GbE
Expansion Slot
  • 1x Half-size PCIe*
  • 2 x Full-size mini PCIe
  • 1 x RS-232, 1 x RS-232/422/485
  • 2 x USB 3.0, 2 x USB 2.0
  • 1 x Audio line out
  • DisplayPort 1.2 Out x 1
Power Input 24 VDC ± 20%
Security TPM 2.0 (built-in)


Humidity 95% RH @ 40°C, non-condensing
Ingress Protection IP66 (for optional panel module with “Panel Mount”)
Operating Temperature 0~60°C (32~140°F) (w/o air flow)
Storage Temperature -20~70°C (-4~158°F)
Vibration Protection With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
