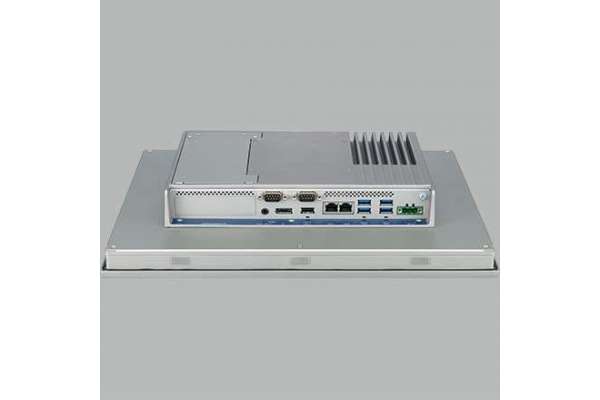

12.1" XGA TFT LED LCD Touch Panel Computer Advantech with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM TPC-312(315)

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-312-R833A 12" XGA Touch Panel PC with Core i3 CPU, 8G RAM  73 498,9
TPC-312-R853A 12" XGA Touch Panel PC with Core i5 CPU, 8G RAM  84 754,7
TPC-312-R873A 12" XGA Touch Panel PC with Core i7 CPU, 8G RAM  96 010,5
TPC-312-R833AO TPC-312-R833A w/o audio function  73 498,9
TPC-312-R853AO TPC-312-R853A w/o audio function  84 754,7
TPC-315-R833A Промисловий панельний комп'ютер Advantech TPC-315-R833A 15" XGA Touch Panel PC with Core i3-8145UE 2.20GHz, 8G RAM  75 749,9
TPC-315-R853A Промисловий панельний комп'ютер Advantech TPC-315 15" XGA Touch Panel PC with Core i5 CPU, 8G RAM  89 014,5
TPC-315-R873A Промисловий панельний комп'ютер Advantech 15" XGA Touch Panel PC with Core i7 CPU, 8G RAM  100 270,0
TPC-315-R833AO Промисловий панельний комп'ютер Advantech TPC-315-R833A w/o audio function  75 749,9
TPC-315-R853AO Промисловий панельний комп'ютер Advantech TPC-315-R853A w/o audio function  89 014,5

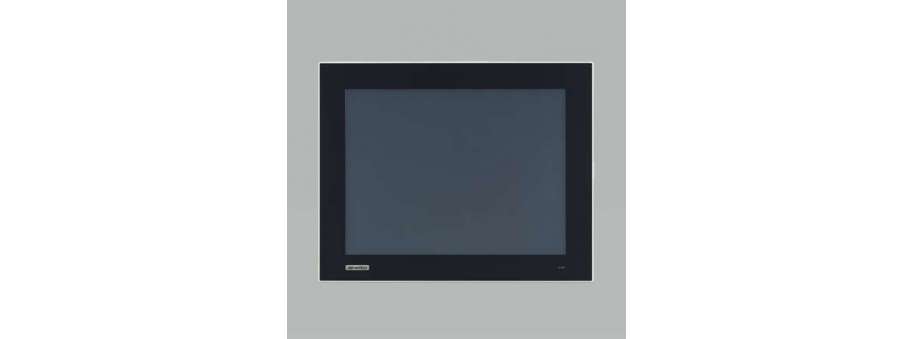

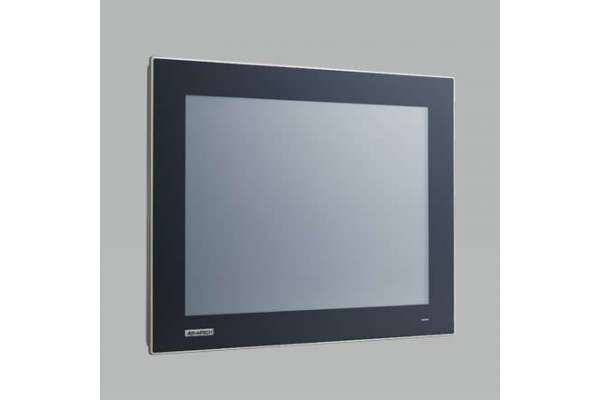

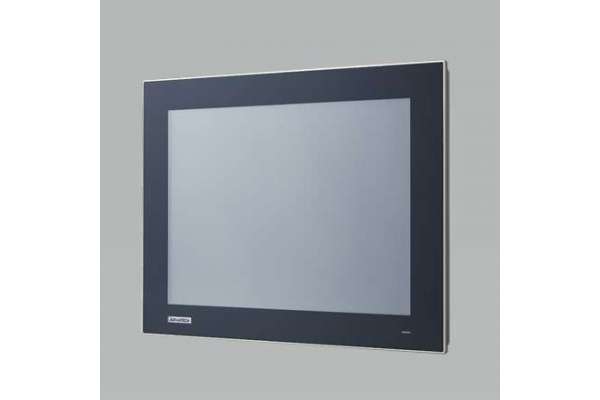

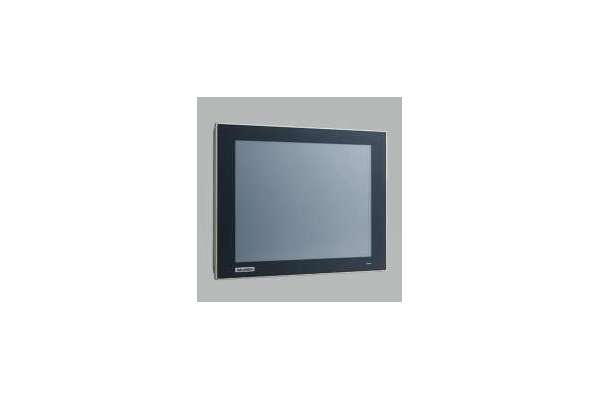

TPC-312 12.1" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM

TPC-315 15" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i7 Processor, built-in 8G DDR4 RAM

TPC touch panel computer is equipped with XGA TFT LED LCD, low-power 8th Gen. Intel® Core™ and built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system. To provide enhanced durability and satisfy diverse applications of industrial automation, they features IP66-rated front panel protecting against dust and water ingress, and two extra expansion M.2 M Key, B Key slots supporting NVMe, SATA or 5G application. With Advantech's iDoor technology integrated via mini PCIe slot for function expansions such as additional I/O ports, isolated digital I/O, fieldbus protocols, GPS/ GPRS/Wi-Fi communication and MRAM. The integrated DP and audio ports allow a secondary monitor and speakers to be attached for increased functionality.

  • Industrial-grade 12.1" XGA TFT LCD with 50K lifetime and LED backlight (for TPC-312) and 70K lifetime (for TPC-315)
  • Dual channel memory slots support up to 64G in total

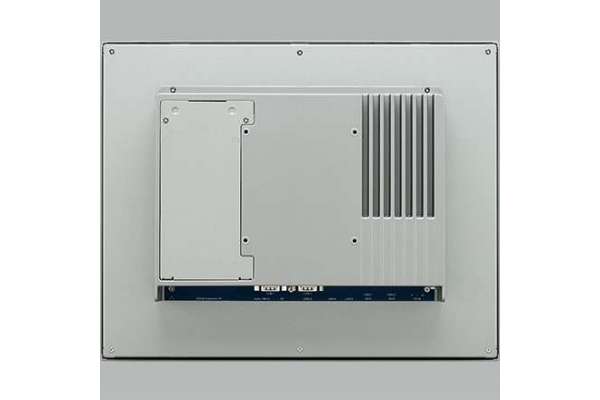

  • Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
  • True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
  • Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
  • Diverse system I/O and isolated digital I/O via iDoor technology
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Support TPM2.0 hardware security

Additional information

General

TPC-312 TPC-315
BIOS AMI UEFI AMI UEFI
Certification BSMI, CCC, CE, FCC Class A, CB/UL BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System Fanless design Fanless design
Dimensions (W x H x D) 311.8 x 238 x 67 mm (12.28 x 9.37 x 2.64 in) 383.2 x 307.3 x 66.5 mm (15.09 x 12.10 x 2.62 in)
Enclosure
  • Front bezel: Die cast aluminum alloy
  • Back housing: Die cast aluminum alloy
  • Front bezel: Die cast aluminum alloy
  • Back housing: Die cast aluminum alloy
Mounting VESA Mount, Desktop, Wall or Panel Mount VESA Mount, Desktop, Wall or Panel Mount
OS Support Win 10, Android, Linux Win 10, Android, Linux
Power Consumption 41.06W (Typical) 36.79W (Typical)
Power Input 24 VDC ± 20% 24 VDC ± 20%
Watchdog Timer 15-255 sec (system) 15-255 sec (system)
Weight (Net) 4.1kg (9.04lbs) 5.8kg (12.79lbs)

System Hardware

CPU 8th Gen. Intel® Core™ i3- 8145UE 2.20 GHz Dual-core/ i5-8365UE 1.60 GHz Quad-core/ i7-8665UE 1.70 GHz Quad-core processor 8th Gen. Intel® Core™ i3- 8145UE 2.20 GHz Dual-core/ i5-8365UE 1.60 GHz Quad-core/ i7-8665UE 1.70 GHz Quad-core processor
Memory
  • Dual channel DDR4 SO-DIMM (Each channel supports up to 32G)
  • 1 x 8G DDR4 SO-DIMM (Built-in)
  • Dual channel DDR4 SO-DIMM (Each channel supports up to 32G)
  • 1 x 8G DDR4 SO-DIMM (Built-in)
LAN 2 x 10/100/1000BASE-T 2 x 10/100/1000BASE-T
Expansion Slot
  • 1 x Full-size mini PCIe
  • 1 x SIM (M.2 B Key 4G/5G module)
  • 1 x Full-size mini PCIe
  • 1 x SIM (M.2 B Key 4G/5G module)
Storage Slot
  • 1 x M.2 M key 2280 (SATA or NVMe PCIe x4)
  • 1 x M.2 B key 2242 (SATA / PCIe) 3042, 3052 (5G)
  • 1 x 2.5" SSD/ HDD (SATA, Max. 7mm)
  • 1 x M.2 M key 2280 (SATA or NVMe PCIe x4)
  • 1 x M.2 B key 2242 (SATA / PCIe) 3042, 3052 (5G)
  • 1 x 2.5" SSD/ HDD (SATA, Max. 7mm)

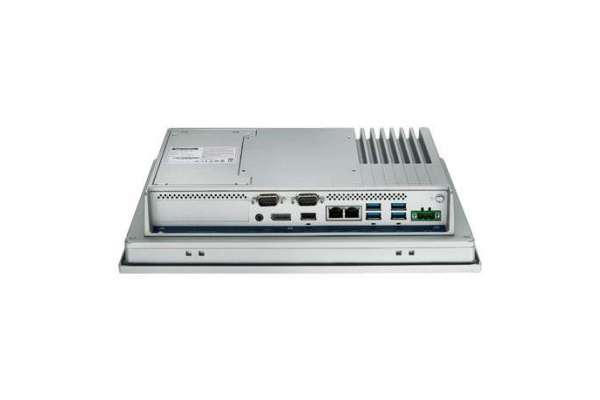

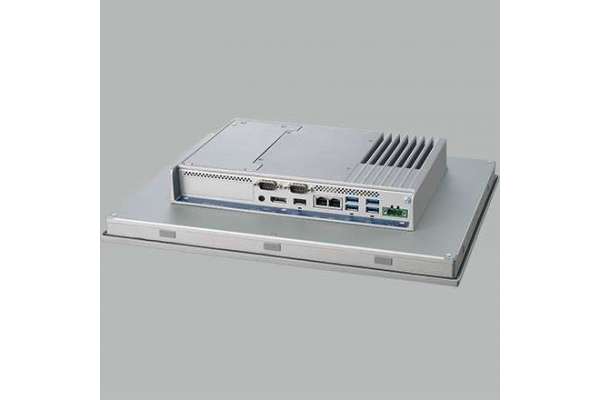

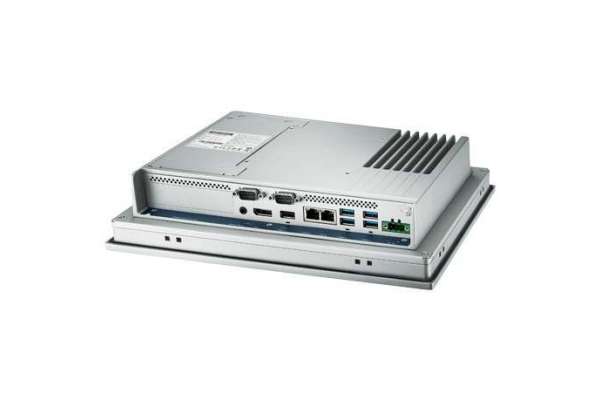

I/O
  • 2 x RS-232/422/485
  • 1 x USB 2.0 4 x USB 3.2 (Gen 2)
  • 1 x iDoor slot 1 x Displayport (Video output)
  • 1 x Audio line out/ mic in
  • 2 x RS-232/422/485
  • 1 x USB 2.0 4 x USB 3.2 (Gen 2)
  • 1 x iDoor slot 1 x Displayport (Video output)
  • 1 x Audio line out/ mic in

LCD Display

Display Type XGA TFT LED LCD XGA TFT LED LCD
Display Size 12.1" (4:3) 15'' (4:3)
Max. Resoltuion 1024 x 768 1024 x 768
Max Colour 16.2M 16.2M
Luminance cd/m2 300 300
Viewing Angle (H/V°) 178°/178° 176°/176°
Backlight Life 50,000 hrs 70,000hrs
Contrast Ratio 1000:1 2000:1

Touchscreen

Lifespan 36 million touches at a single point 36 million touches at a single point
Light Transmission Above 75% Above 75%
Resolution Linearity Linearity
Type 5-wire analog resistive 5-wire analog resistive

Environment

Humidity 10 ~ 95% RH @ 40°C, non-condensing 10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection IP66-rated front panel IP66-rated front panel
Operating Temperature -10~55°C (14~131°F) (w/o air flow) -10~55°C (14~131°F) (w/o air flow)
Storage Temperature -20~70°C (-4~158°F) -20~70°C (-4~158°F
Vibration Protection With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
