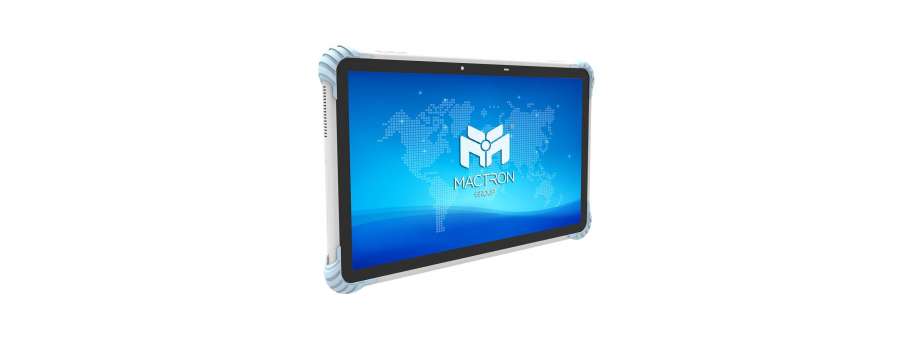

Medical-Grade Windows Mobile Tablet PC with 4G/LTE, Wi-Fi 6, BT 5.2 and GNSS MACTRON MMS1337
- 13.3-inch Windows System with Intel® Core i5-1235U Processor
- 10-point capacitive multi-touch panel with FHD Display
- Medical-Grade Antibacterial Housing
- Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS
- Rich I/O Ports such as USB3.0, HDMI, RS-232, GbE LAN
- 1.2m drop resistant & MIL-STD-810G certified
Additional information
Display |
|
| Display Type | 13.3" IPS LCD |
| Resolution | 1080 x 1920, 9:16 Aspect Ratio |
| Brightness | 450 nits |
| Touch Panel | 10-points Capacitive multi-touch screen |
System |
|
| CPU |
|
| GPU | Intel® Iris® Xe Graphics |
| Memory | LPDDR5 x 16GB |
| Storage | 256GB/ (Optional 512GB) |
| Operating System | Windows®10 IoT Enterprise(LTSC), Windows® 11 IoT |
| I/O Ports |
|
| WiFi | Intel® Wi-Fi 6 AX201 (802.11 ax) |
| Bluetooth | Bluetooth® 5.2 |
| 4G/5G | 4G LTE |
| GPS | GPS, BDS, GLONASS |
| Data Collection | NFC Module (13.56 MHz, Distance: 1-3cm) Barcode Scanner Module |
Physical |
|
| Camera |
|
| Audio | 2 x 8Ω /0.8W |
| Color | White |
| Dimension | 337.7 mm (L) x 209.2 mm (W) x 24 mm (H) |
| Weight | 1450g |
| Buttons |
|
| Sensors | Light sensor, Acceleration sensor, Gravity sensor |
| Battery | 7.6V/8000mAh |
| Power Adapter | USB Type-C Power Adapter (12V/3A) |
| Standard Accessory |
|
| Optional Accessory | Removable Battery: Li-Ion, 7.6V, 6000mAh |
Packing List |
|
| Accessories |
|
| Product Dimension | 337.7 mm (L) x 209.2 mm (W) x 24 mm (H) |
| Product Weight | 1450g |
Environment |
|
| IP Rating | IP65 |
| Drop Test | 1.2m drop resistance |
| Certification | CE/ FCC/ MIL-STD-810G / IEC 60601-1 |
| Operating Temperature | -20 °C to 55 °C |
| Storage Temperature | -25 °C to 80 °C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
