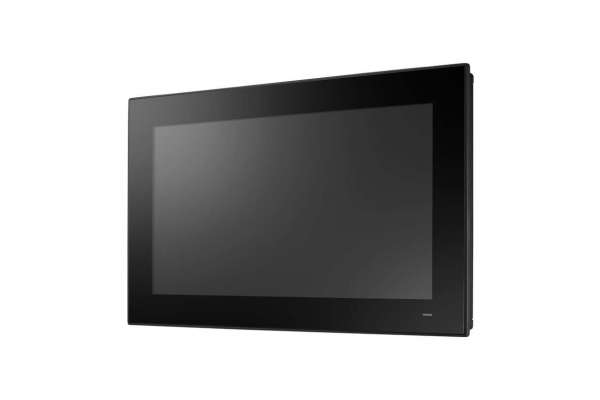

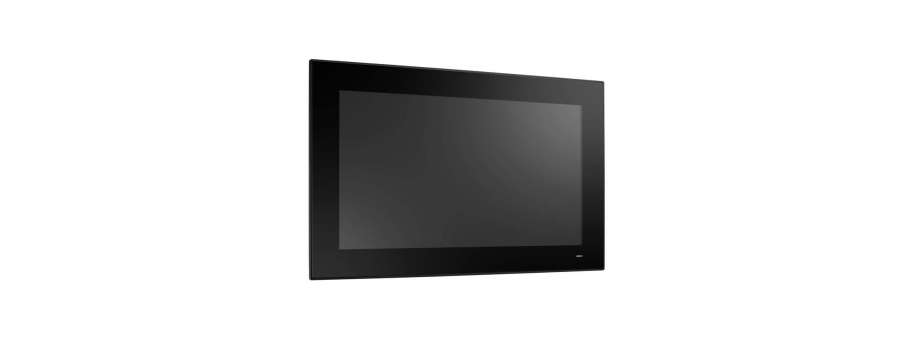

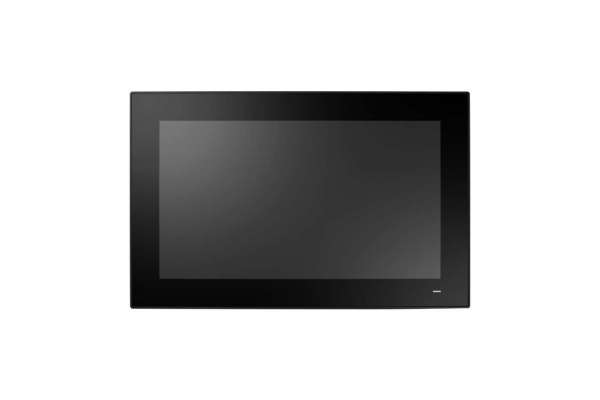

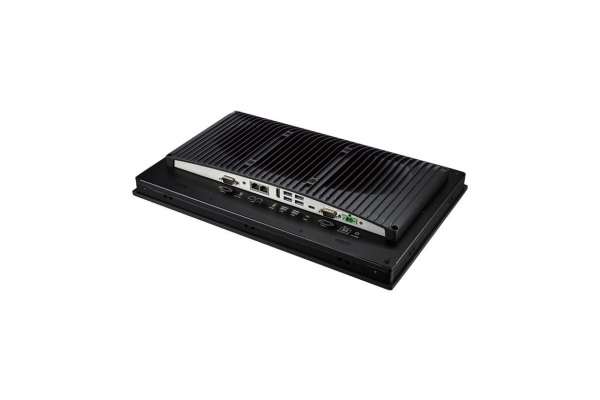

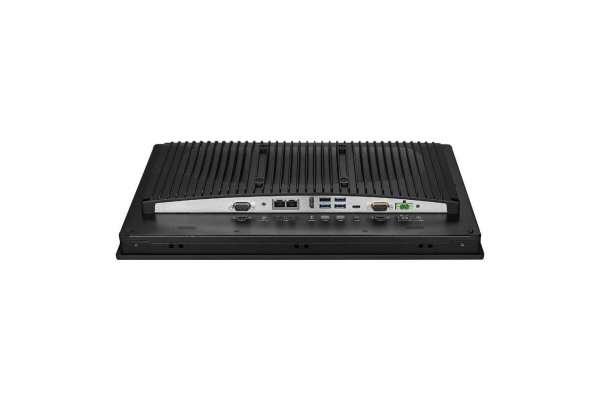

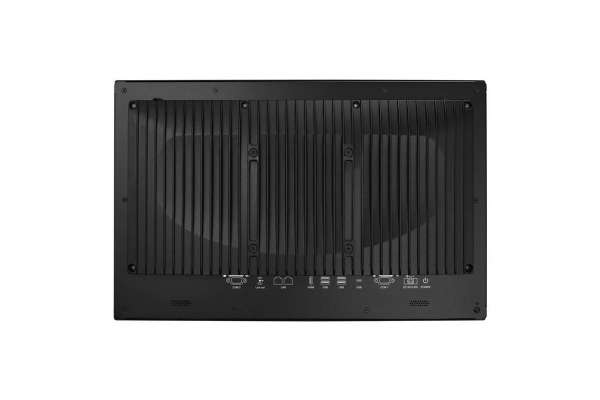

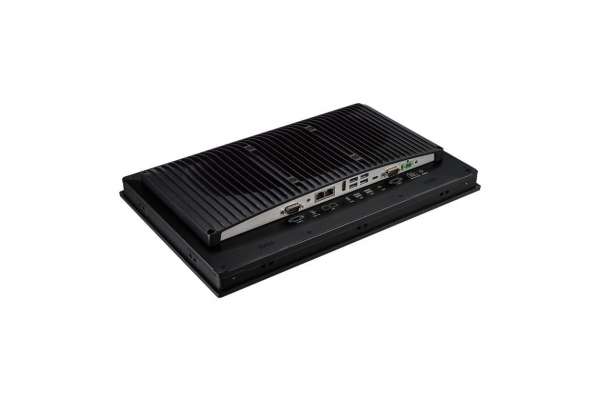

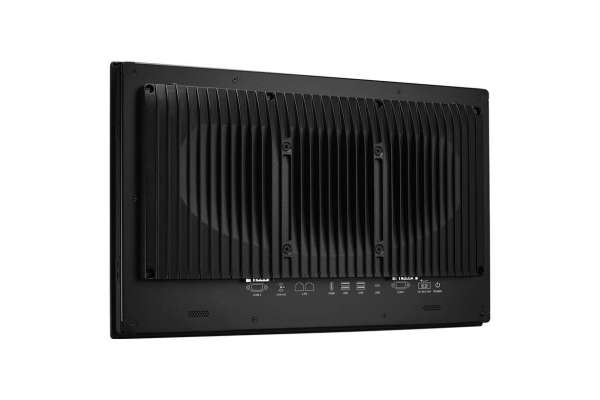

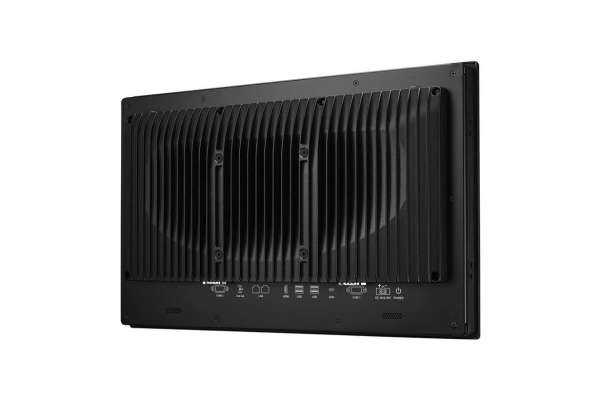

15.6" Fanless Panel PC with Intel® 11th Gen Core™ i7/i5/i3 Processor Advantech PPC-315W TGL

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-315W-PB50A Панельний комп'ютер Advantech Intel Core PPC-315W i5-1145G7E Fanless 15.6" FHD PPC  108 349,0
PPC-315W-PB30A Панельний комп'ютер Advantech, 15.6", Fanless, FHD PPC, Intel Core i3-1115G4E  93 779,7
PPC-315W-PB70A Панельний комп'ютер Advantech PPC-315W Intel Core i7-1185G7E Fanless 15.6" FHD PPC  120 976,0

PPC-315w TGL is an 15.6” Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-315w TGL features 3 x USB 3.2, 2 x series ports and 1 x HDMI for flexible access and connection. The PPC-315w TGL is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.

  • Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
  • True-flat touchscreen with multi-touch projected capacitive control
  • High-performance, fanless 11th generation Intel® Core™ i processor
  • Dual channel memory slots, max 64G
  • Compact, fanless design with aluminum alloy enclosure
  • IP66-rated front panel
  • Supports dual displays (1 x external HDMI)
  • 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
  • 1 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
  • Supports VESA 100
  • Support TPM2.0 hardware security
  • Supports Type C (USB only)

Additional information

System
CPU i3-1115G4E i5-1145G7E i7-1185G7E
Cores Dual Core Quad Core Quad Core
Frequency 2.2GHz; 3.90GHz with turbo boost 1.5 GHz; 4.1 GHz with turbo boost 1.8 GHz; 4.4 GHz with turbo boost
Cache 6 MB 8 MB 12 MB
TDP 15W 15W 15W
Memory 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2) 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2) 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)
Storage
  • 1 x 2.5" SATA bay
  • 1 x M.2 2280 M-Key bay (Co-lay SATA, for storage only)
  • 1 x 2.5" SATA bay
  • 1 x M.2 2280 M-Key bay (Co-lay SATA, for storage only)
  • 1 x 2.5" SATA bay
  • 1 x M.2 2280 M-Key bay (Co-lay SATA, for storage only)
Network (LAN)
  • 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
  • 1 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2500M
  • 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
  • 1 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2500M
  • 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
  • 1 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2500M
I/O
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
  • 3 x USB 3.2,
  • 1 x USB 2.0, 2 x USB 2.0 (internal),
  • 1 x Type C (USB only)
  • 1 x HDMI1.4 1 x TPM 2.0 1 x Line out
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
  • 3 x USB 3.2,
  • 1 x USB 2.0, 2 x USB 2.0 (internal),
  • 1 x Type C (USB only)
  • 1 x HDMI1.4 1 x TPM 2.0 1 x Line out
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
  • 3 x USB 3.2,
  • 1 x USB 2.0, 2 x USB 2.0 (internal),
  • 1 x Type C (USB only)
  • 1 x HDMI1.4 1 x TPM 2.0 1 x Line out
Speaker 2 x 1W 2 x 1W 2 x 1W
Expansion 1 x M.2 2230 E-key for wireless card 1 x M.2 2230 E-key for wireless card 1 x M.2 2230 E-key for wireless card
Watchdog Timer 255 timer levels, set up by software 255 timer levels, set up by software 255 timer levels, set up by software

Physical Characteristics
Dimensions 419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in) 419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in) 419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in)
Weight 4.8 kg (10.67 lb) 4.8 kg (10.67 lb) 4.8 kg (10.67 lb)

OS Support
OS Support Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux

Power Consumption
Input Voltage 12 ~ 30 VDC 12 ~ 30 VDC 12 ~ 30 VDC
Power Consumption 70W (Burn-in test 8.1 in Windows 10 64-bit) 70W (Burn-in test 8.1 in Windows 10 64-bit) 70W (Burn-in test 8.1 in Windows 10 64-bit)

LCD
Display Type 15.6" FHD LCD (LED backlight) 15.6" FHD LCD (LED backlight) 15.6" FHD LCD (LED backlight)
Resolution 1920 x 1080 1920 x 1080 1920 x 1080
Viewing Angle 80 (left), 80 (right), 85 (up), 85 (down) 80 (left), 80 (right), 85 (up), 85 (down) 80 (left), 80 (right), 85 (up), 85 (down)
Luminance (cd/m2 ) 450 450 450
Contrast Ratio 800 800 800
Backlight Lifetime 50,000 hr (min.) 50,000 hr (min.) 50,000 hr (min.)

Touchscreen
Touch Type 10-point multi-touch projected capacitive 10-point multi-touch projected capacitive 10-point multi-touch projected capacitive
Light Transmission 90 % ± 2 % 90 % ± 2 % 90 % ± 2 %
Controller USB interface USB interface USB interface

Environment
Operating Temperature -10 ~ 50 °C (14~122 °F) -10 ~ 50 °C (14~122 °F) -10 ~ 50 °C (14~122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64 Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC CE, FCC Class B, BSMI, VCCI, UKCA CE, FCC Class B, BSMI, VCCI, UKCA CE, FCC Class B, BSMI, VCCI, UKCA
Safety CB, UL, CCC, UKCA CB, UL, CCC, UKCA CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant IP66 compliant IP66 compliant
