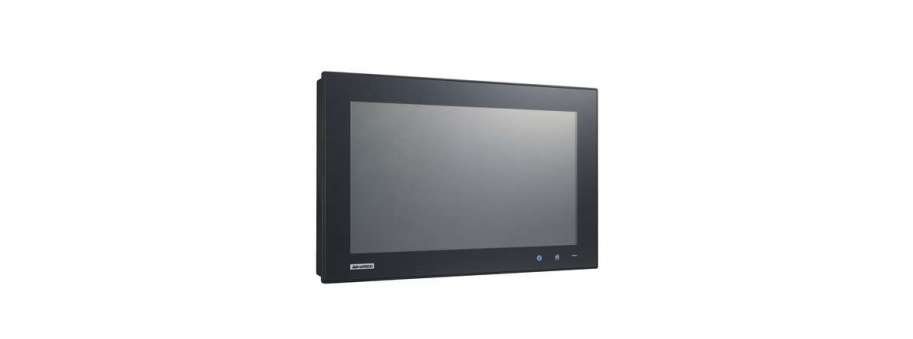

15.6” Fanless Wide Screen Panel PC Advantech PPC-4151W with 4th Gen. Intel Core i5/i3 Processor

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-4151W-P5AE Панельний комп'ютер Advantech PPC-4151W-P5AE, 15.6" WXGA PCT Panel PC, Intel Core i5-4300U  115 422,0
PPC-4151W-R3AE Панельный компьютер 15.6" WXGA Panel PC,Intel Core i3-4010U w/RES TS  86 013,3

The PPC-4151W is a new generation Panel PC with WXGA (1366 x 768) screen. The most important, system equips with high performacne Intel Core i CPU but the heat can be dispatched easily by high effeciency fanless thermal design. This makes HMI a big step forward to consolidate performance and reliability in one system. Besides, with rich I/O as 5xCOM, 5xUSB and dual Gigabit ethernet make it easier to connect to devices and be integrated into machine building industry. In addition, PCIe/PCI expansion to add on field bus or propiretary card makes more application posibility. The last but not least, the multi touch screen makes the HMI more intuitive, brings you the best operate experience.

  • 15.6" WXGA entirely flat panel with Projected capacitive touchscreen or flat panel with resistive touchscreen
  • High performance Intel Core i CPU with Fanless design
  • PCIe x4 or PCI expansion support
  • Automatic data flow control over RS-485
  • Wide Range DC 9-32V support
  • Dual Gigabit Ethernet, support IEEE1588
  • 3 x Independent display

Part Number Description:

PPC-4151W-P5AE 15.6" Wide screen PPC with PCT Multi-touch, Intel Core i5-4300U

PPC-4151W-R3AE 15.6" Wide screen PPC with resistive touch, Intel Core i3-4010U
