15.6" Fanless Widescreen Panel PC with Intel® Pentium® N4200 Quad-Core Processor Advantech PPC-3150SW

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3150SW-PN4A Панельний комп'ютер Avantech PPC-3150SW 15.6" Fanless Widescreen Panel PC with Intel® Pentium® N4200 Quad-Core Processor  51 317,5
PPC-3150SW-PN4AO Промисловий панельний комп'ютер Advantech PPC-3150SW-PN4A w/o audio function  51 317,5
PPC-3150SW-PN4AU Промисловий панельний комп'ютер Advantech Intel PENTIUM APL N4200 Fanless15.6" Panel PC  53 613,8

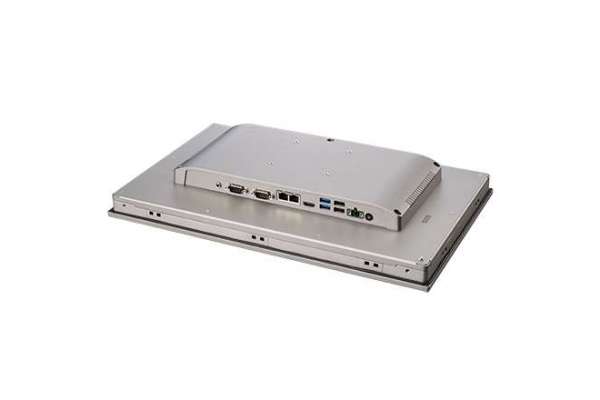

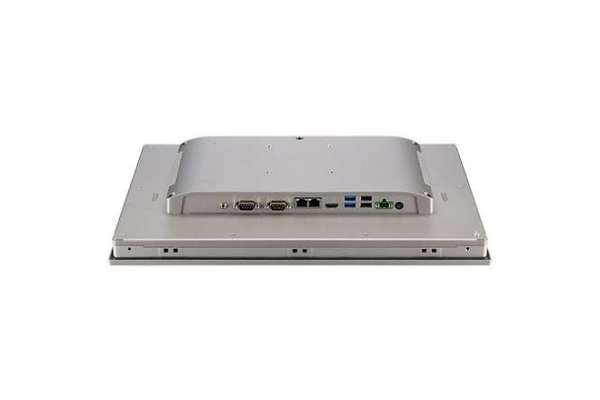

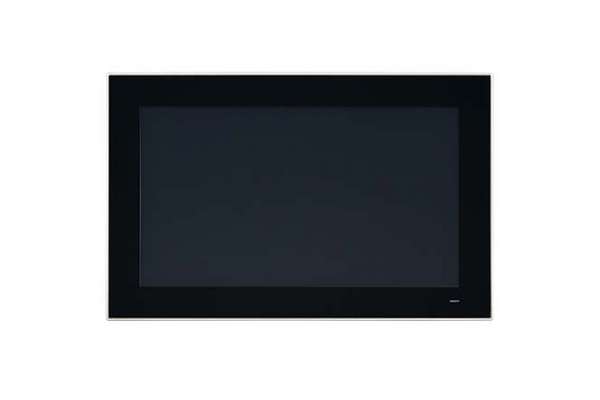

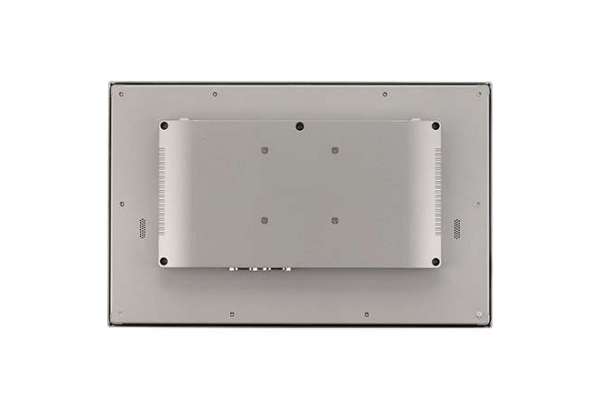

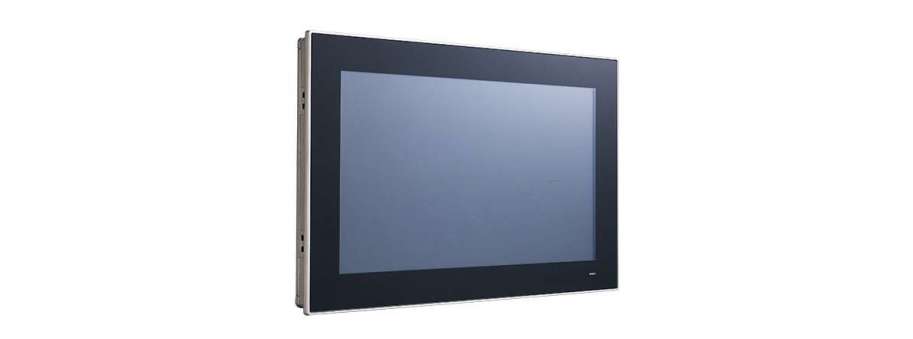

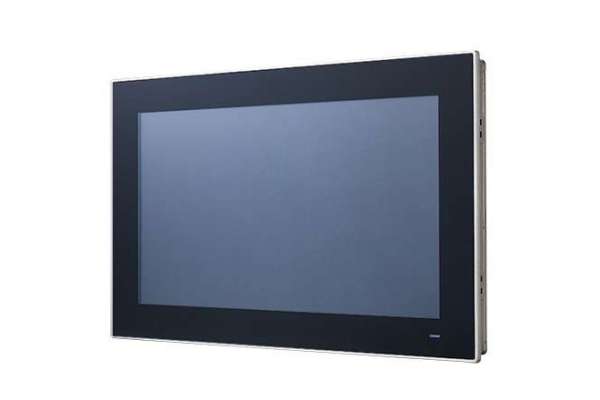

The PPC-3150SW is a high-value, ultra-slim panel PC equipped with a 15.6" WXGA TFT LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide highperformance computing in a compact and fanless system. For high durability and functionality, the PPC-3150SW features an IP65-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.

  • 15.6" true-flat WXGA TFT LCD with projected capacitive touch control
  • Fanless design with low power consumption
  • Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
  • Configurable RS-232/422/485 ports via BIOS
  • Automatic data flow control over RS-485
  • Wide range DC support (12 ~ 24 VDC)
  • Supports dual displays
  • IP65-rated front panel

The PPC-3150SW-MART is a high-value, ultra-slim panel PC equipped with a 15.6" WXGA TFT LCD, Intel® Pentium® N4200 quad-core, 1.1 GHz, processor, 4GB DDR3L, 64GB SSD, 90W power adapter and Win 10 LTSC to provide high-performance computing in a compact and fanless system.

  • 15.6" true-flat WXGA TFT LCD with projected capacitive touch control
  • Win 10 IOT LTSC, 4GB DDR3L SDRAM, 64GB 3D TLC MSATA
  • Fanless design with aluminum alloy enclosure
  • Wide Range DC input (12~24V DC), Configurable RS-232/422/485
  • IP65-rated front panel, Supports dual displays, VESA 75
  • No RED Certification

Additional information

PPC-3150SW PPC-3150SW-MART

System

CPU Intel® Pentium® N4200 quad core Intel® Pentium® N4200 quad core
Frequency 1.1GHz, turbo boot to 2.5GHz 1.1GHz, turbo boot to 2.5GHz.
L2 Cache 3 MB 3 MB
Memory 1 x SODIMM, DDR3L 1600/1866, max. 8 GB 1 x 4GB SODIMM DDR3L 1600 MHz
Storage 1 x 2.5" SATA bay (optional; requires a bracket module for installation) 1 x mSATA bay 1 x 64GB 3D TLC mSATA 1 x 2.5" SATA bay (optional; requires a bracket module for installation)
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT) 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT)
I/O
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485
  • 2 x USB 3.0,
  • 2 x USB 2.0
  • 1 x Line-out
  • 1 x HDMI
  • 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485 (Adjustable through BIOS)
  • 2 x USB 3.0,
  • 2 x USB 2.0
  • 1 x Line-out
  • 1 x HDMI
Expansion 1 x Mini PCIe 1 x Mini PCIe
Watchdog Timer 255 timer levels, set up by software 255 timer levels, set up by software
Speaker 2 x 1W 2 x 1W

Physical Characteristics

Dimensions 419.7 x 269 x 58.6 mm 419.7 x 269 x 58.6 mm
Weight 4.7 kg (10.36 lb) 4.7 kg (10.36 lb)

OS Support

OS Support Microsoft® Windows 10(64-bit), Windows 10 IOT LTSC, Linux, Android 8.1 Microsoft® Windows 10 IOT LTSC

Power Comsumption

Input Voltage 12 ~ 24 VDC
  • 12 ~ 24 VDC
  • 100-240 VAC (90W A/D adapter in the accessory box)
Power Consumption 33W 33W

LCD

Display Type 15.6" TFT LCD (LED backlight) 15.6" TFT LCD (LED backlight)
Max. Resolution 1366 x 768 1366 x 768
Viewing Angle 85 (Left), 85 (Right), 80 (Up), 80 (Down) 85 (Left), 85 (Right), 80 (Up), 80 (Down)
Luminance (cd/m2 ) 400 400
Contrast Ratio 500 500
Backlight Lifetime 50,000 hr (min.) 50,000 hr (min.)

Touchscreen

Touch Type Multi-touch projected capacitive Multi-touch projected capacitive
Light Transmission 90% ± 2% 90% ± 2%
Controller USB Interface USB Interface

Environment

Operating Temperature
  • 0 ~ 50 °C (32 ~ 122 °F) with SSD
  • 0 ~ 40 °C (32 ~ 104 °F) with HDD
0 ~ 50 °C (32 ~ 122 °F) with mSATA/SSD
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F) -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (Non-Condensing) 10 ~ 95% @ 40 °C (Non-Condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64 Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64
EMC CE, FCC Class B, BSMI, EN 60601-1-2 CE, FCC Class B, BSMI, EN 60601-1-2
Safety CB, UL, CCC CB, UL, CCC
Front Panel Protection IP65 compliant IP65 compliant
