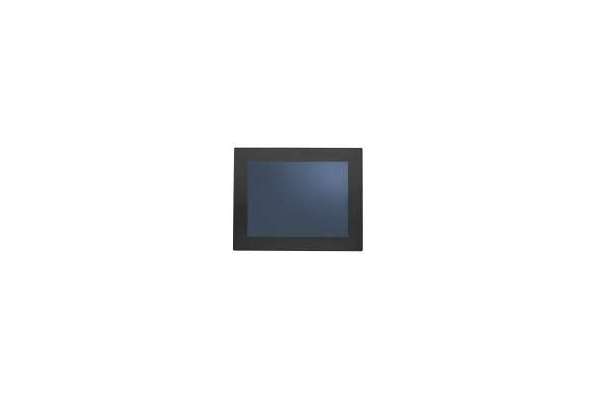

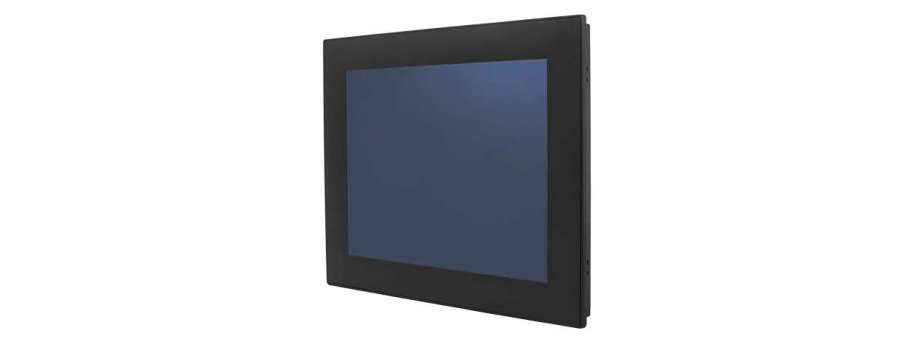

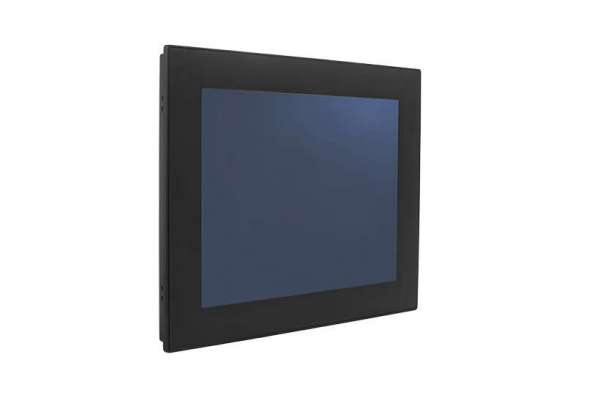

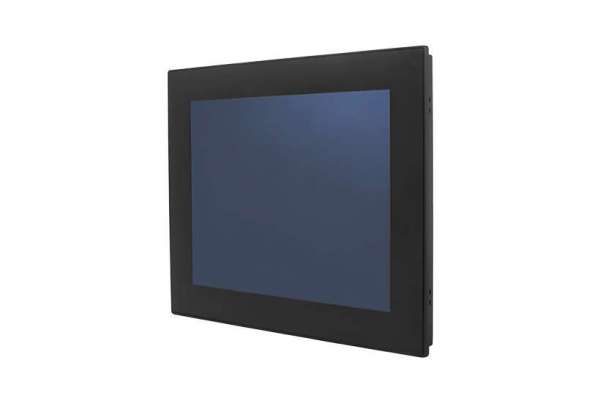

15" Fanless Panel PC PPC-3150-RJ90A

15" Fanless Panel PC Advantech with Intel® Celeron Quad Core J1900 Processor PPC-3150-RJ90A

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The PPC-3150-RJ90A is a valued and reliable 15" Panel PC. With an onboard Intel Celeron processor J1900, it features low power consumption and good performance. The PPC-3150-RJ90A is highly reliable because of its 15" TFT XGA LED panel, 5-wire resistive touch screen and fanless design. It provides fourteen serial ports, four USB ports, and two GbE LAN to satisfy various industrial applications especially industrial equipment makers and product line monitors. With a compact and slim design, the PPC-3150-RJ90A provides can be easily integrated in industrial systems.

  • 15" TFT XGA LED Panel with resistive touchscreen
  • Embedded Intel Celeron processor, quad core J1900 2.0GHz onboard
  • System memory up to 8GB DDR3L 1333 SDRAM
  • Supports one internal SATA 2.5" HDD
  • Supports one Mini PCIe socket, two Gigabit Ethernet
  • Fanless and compact size with low power consumpution
  • Supports five RS-232 and one RS-232/422/485, besides six RS-232 and two RS-422/485 are optional by request
  • Supports one mSATA socket

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3150-RJ90A 15"XGA Panel PC with Celeron J1900,Res,6COM  2 182,7

Additional information

Processor System


CPU Intel® Celeron J1900, Quad core
Frequency 2.0 GHz
2nd Cache 2 MB
Memory 1 x SO-DIMM, DDR3L 1333, Max 8 GB
Storage
  • 1 x 2.5" SATA Bay
  • 1 x mSATA Bay
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel i211*2)

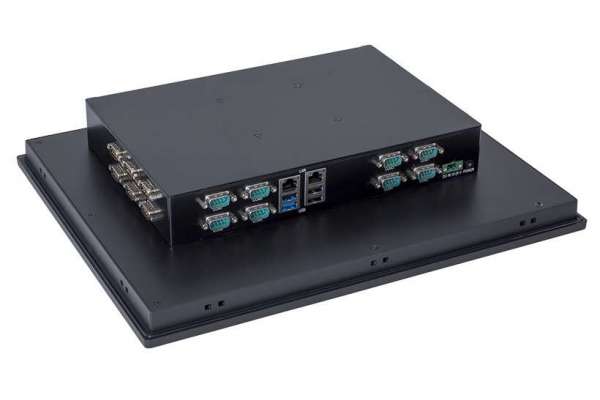

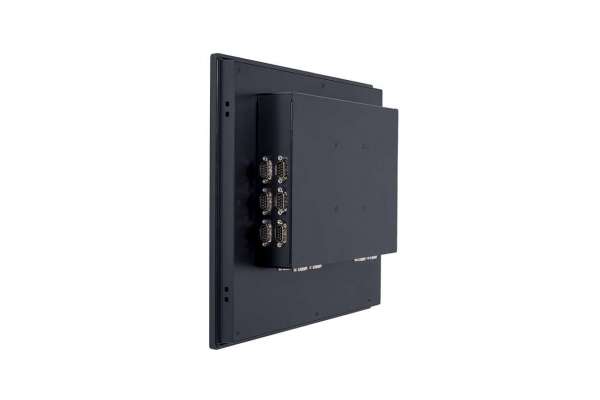

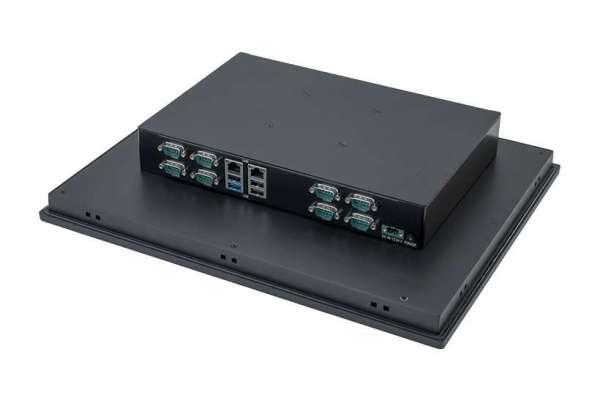

I/O ports
  • 5 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
  • 6 x RS-232 and 2 x RS-422/485 (optional by request)
  • 1 x USB 3.0, 3 x USB 2.0 1 x VGA &
  • 1 x HDMI (optional by request)
Expansion 1 x Full size Mini PCIe slot
Watchdog Timer 255 timer levels, set up by software
Physical Characteristics
Dimensions 392.3 x 313.6 x 69.2 mm
Weight 4.9 Kg

OS Support

Microsoft® Windows 7 (32/64 bit)/10 (64 bit), Linux
Power Comsumption
Input Voltage 12- 24 VDC
Power Consumption 36W (Buru-in test 8.0 in Windows 7 64 bit)

LCD Display


Display Type 15" TFT LCD (LED backlight)
Resolution 1024 x 768
Viewing Angle 88(left), 88 (right), 88 (up), 88(down)
Luminance (cd/m2 ) 300
Contrast Ratio 2000
Backlight Lifetime 70,000hrs (Typ.)

Touchscreen


Touch Type Resistive 5 wires
Light Transmission 80±3%
Controller USB interface
Durability (Touches) 36 million

Environment


Operating Temperature
  • 0 ~ 50°C (32 ~ 122°F) with SSD
  • 0 ~ 40°C (32 ~ 104°F) with HDD
Storage Temperature -40 ~ 60°C (-40 ~ 140°F)
Relative Humidity 10 ~ 95% @ 40°C (non-condensing)
Shock Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC CCC
Safety CCC
Front Panel Protection IP65 compliant
