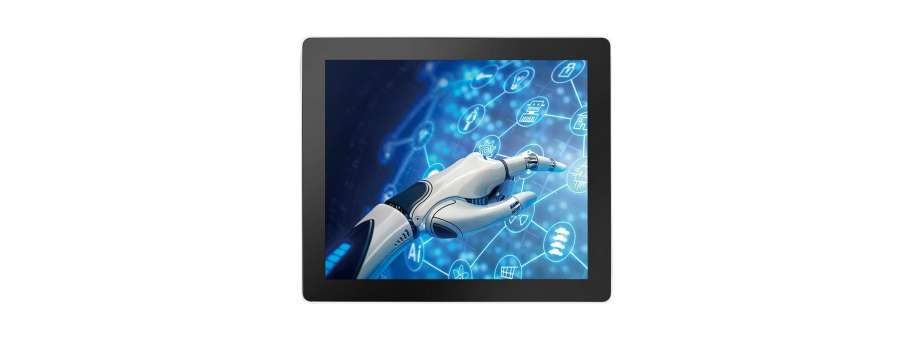

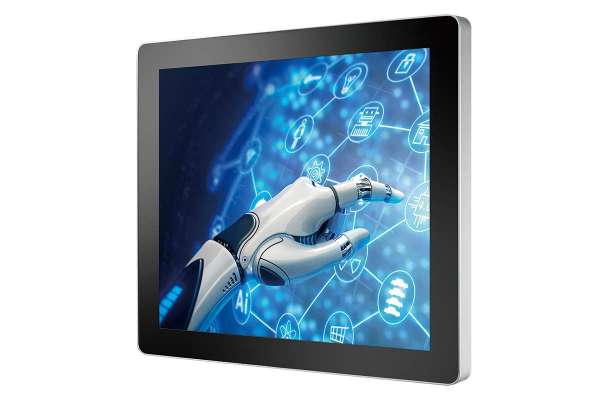

15" Multi-Touch PC MTC-7015

15" Fanless Multi-Touch Computer Vecow 1024 x 768 (4:3) XGA TFT LED LCD supports -5°C to 55°C operating temperature MTC-7015

Industrial Computer >> Industrial Panel PC and HMI

Manufacturer: Vecow

MTC-7000 Series is powered by 8th generation Intel® Core™ i7/i5/i3 processor (Whiskey Lake) and features leading performance and innovative power management functions. It supports projected capacitive multi-touch screen, fanless design, -5°C to 55°C operating temperature, IP65 certified panel protection, 9V to 48V wide range DC-in power input. MTC-7000 Series is outfitted with 2 GigE LAN, 4 10G USB, 2 COM for flexible connectivity.

  • 15" 1024 x 768 (4:3) XGA TFT LED LCD
  • 10-point Projected Capacitive Multi-touch Screen
  • 8th Generation Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
  • Fanless design supports -5°C to 55°C operating temperature
  • 4-port 10G USB 3.1 Gen 2
  • Easy-access external SSD/HDD kit
  • DC 9V to 48V wide range power input
  • Supports Panel Mount and VESA Mount (75 x 75, 100 x 100)
  • IP65 Front Panel Protection
  • 2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS

Additional information

Panel
Panel type XGA TFT LED Type LCD
Size 15"
Max. Resolution 1024 x 768
Display Color 16.7M
Brightness (cd/m2)  250 nits
Viewing Angles (H/V) 160/140
Contrast Ratio 700:1

Touch Screen


Touch Screen Type 10-point Projected Capacitive
Transparency ≧ 91%
Surface Hardness 7H Surface Hardness
Control Interface USB Type

System


Processor Quad Core Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
Chipset Intel® Cannon Lake PCH-LP
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics Processor Intel® UHD Graphics 620

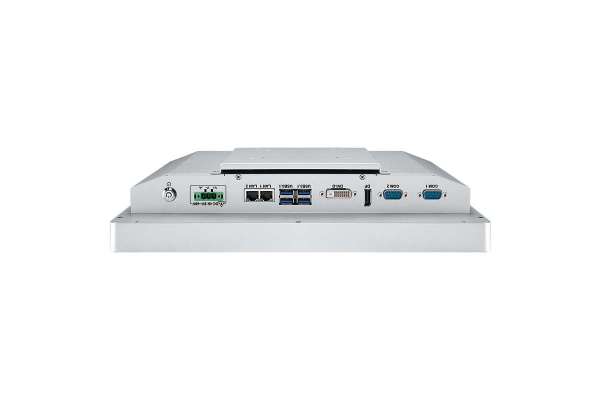

I/O Interface


Serial 2 RS-232/422/482 (ESD 8kV, DB9 Type)
USB 4 USB 3.1 Gen 2, Type A
LED
Power, HDD
Display
  •  DVI-D：Up to 1920 x 1200 @60Hz
  •  DisplayPort：Up to 4096 x 2304 @60Hz

Expansion


Mini PCIe
  • 2 Mini PCIe Socket：
  •  1 Full-size for PCIe/USB/SIM Socket
  •  1 Full-size for PCIe/USB/SATA

Storage


SATA 1 SATA III (6Gbps)
mSATA 1 SATA II (Full Size Mini PCIe, 6Gbps)
Storage Device 1 2.5" SSD/HDD Kit

Ethernet


LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0, RJ45 Type
LAN 2 Intel® I210LM GigE LAN, RJ45 Type

Power


Power Input 9V to 48V DC-in
Power Interface 3-pin Terminal Block (V+/V-/GND)

Others


TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported

Software Support


OS Windows 10, Linux

Mechanical


Dimensions 360.9mm x 277.8mm x 77.1mm (14.21" x 10.21" x 3.04")
Weight 4.1kg (9.04 lb)
Mounting
  • Panel mount
  • VESA mount (75 x 75, 100 x 100)

Environment


Operating Temperature -5°C to 55°C (-23°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @55°C
Shock
  •  IEC 60068-2-27
  •  20G, Half-sine, 11ms
Shock
  • IEC 60068-2-64
  • Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis
EMC CE, FCC
