DP HDMI IP66 Resistive Touch Screen Size 15" Standard T range VGA Wallmount

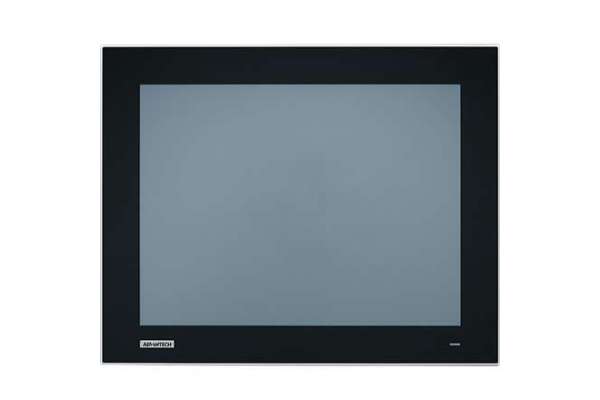

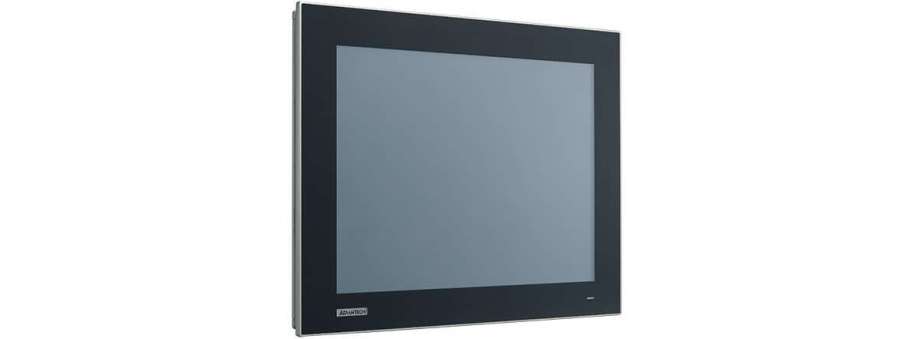

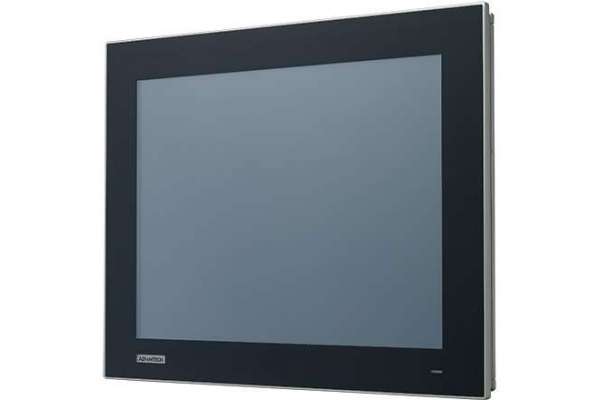

15" XGA Industrial Monitor with Resistive Touch Control,Direct HDMI, DP, and VGA Ports Advantech FPM-215

Price and avalability

Partnumber Description Price VAT incl Avalability

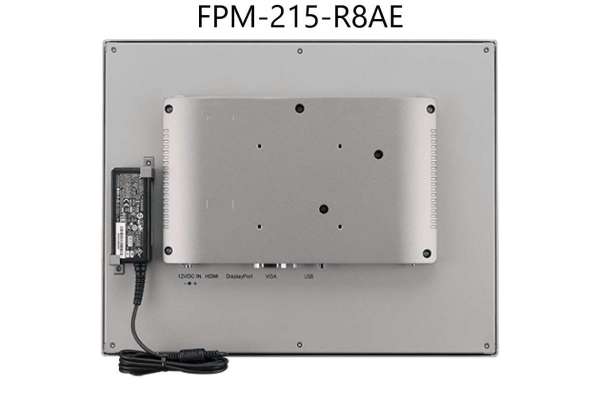

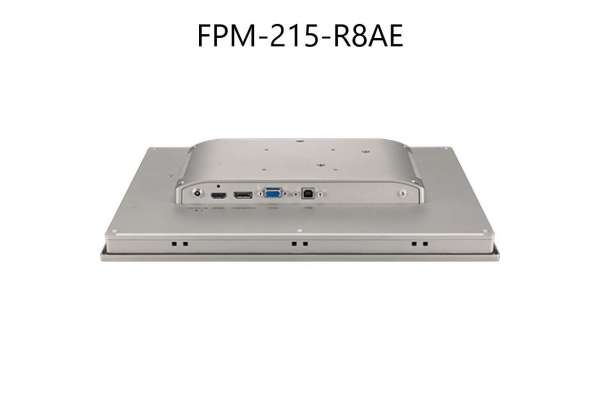

FPM-215-R8AE Промисловий дисплей Advantech FPM-215 15 XGA Ind. Monitor, Resistive Touch Control, Direct HDMI, DP, and VGA Ports  37 757,0

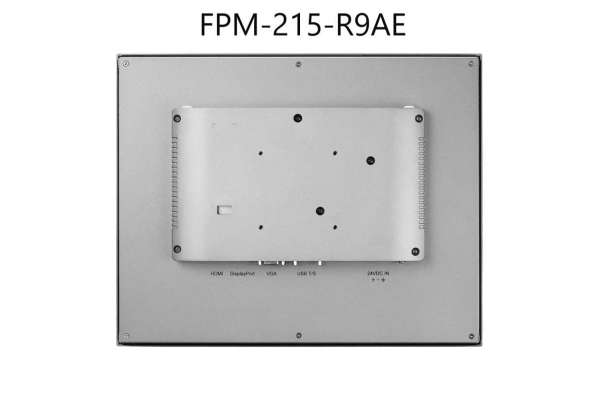

FPM-215-R9AE Промисловий дисплей Advantech FPM-215 15" XGA, 1024 x 768, Ind. Monitor,w/Resistive TS(24Vdc)  45 572,0
  • 15" XGA TFT LED LCD with 70,000 backlight lifetime
  • Direct HDMI, DP and VGA input interfaces
  • Anti-glare screen with tempered glass
  • Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  • Lockable I/O connectors
  • Slim design enables easy installation
  • Supports various mount options: panel, desktop, and VESA arm

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.

Additional information

General

Certification BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D) FPM-215: 383.2 x 307.3 x 53.20 mm (15.08 x 12 x 2.09 in)
Enclosure Front panel: Die cast magnesium alloy Rear cover: Die-casting aluminum
Mount Options Stand, Wall, Panel and VESA arm (75 x 75mm)
Power Input FPM-2XX-R8AE : External 36 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 3 A output (included) FPM-2XX-R9AE: Terminal Block: 24 VDC input
Video Port HDMI, DP, and VGA
Weight (Net) 4.6 kg

Power Consumption

FPM-215-R8AE 14.69(idle), 15.32(Max)
FPM-215-R9AE 14.19(idle), 14.75(Max)

LCD Display

Display Type XGA TFT LCD
Display Size 15"
Max. Resolution 1024 x 768
Max. Color 16.2M
Viewing Angle (H/V °) 176/176
Luminance (cd/m2 ) 300
Backlight Life 70,000
Contrast Ratio 2000:1

Touchscreen

Type 5-wire analog resistive
Interface USB
Light Transmission Above 75%
OS Support Windows XP, Vista,7, 8,10,XPe and Linux

Environment

Operating Temperature 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Humidity (Storage)
IP Rating IP-66 graded front panel
Vibration 5 ~ 500 Hz, 1 Grms (Operating, Random)
