Capacity Touch DVI Input 12V DC IP65 Screen 3:4 Standard T range VGA

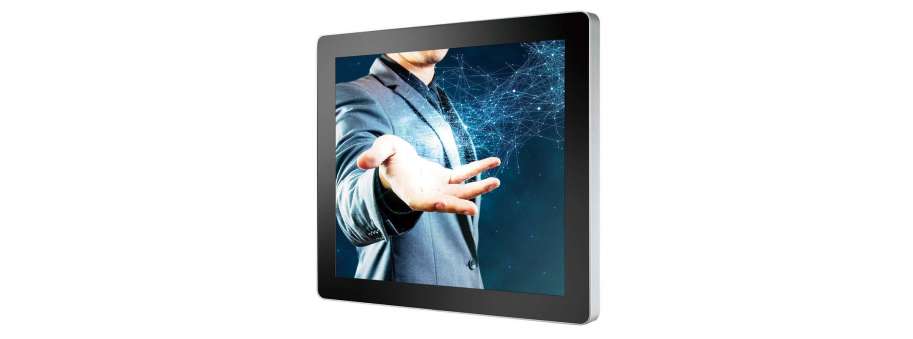

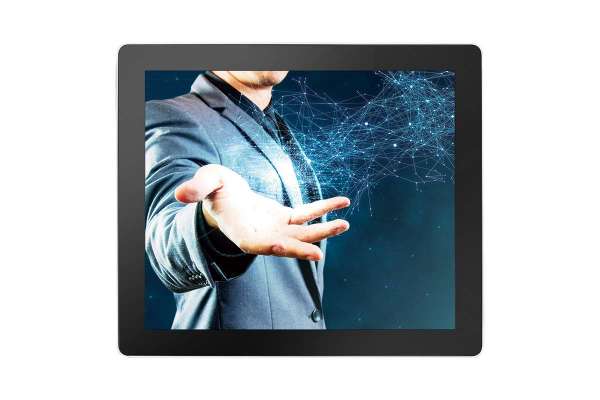

Multi-Touch 16 : 9 Full HD Projected Capacitive Industrial Display, Front Panel IP65 Waterproof Vecow MTD-6017

Price and avalability

Partnumber Description Price VAT incl Avalability
MTD-6017 Промисловий монітор Vecow 17” Multi-Touch 4:3 Full HD Projected Capacitive Display  48 891,1

MTD-6000 series Multi-Touch TFT-LCD Projected Capacitive Industrial Display, with VGA and DVI display interfaces and featuring 10-point Multi-Touch projected capacitive screen dedicated to industrial use, IP65 waterproof compliant, supporting 0°C to 50°C operating temperature, supporting Panel and VESA mount for a wide range of applications, which is a smart choice for Smart Manufacturing, Gaming, Intelligent Surveillance, Infotainment System, Medical, and any industrial-grade IoT-oriented applications.

  • 17” LCD Display supports VGA and DVI-I Interface
  • Industrial grade LCD Panel with high reliable LED Backlight, up to 50,000hrs
  • Projected Capacitive 10-point Multi-Touch Screen
  • 7H Hardness Anti-Scratch Surface
  • Touchscreen works with gloves
  • Landscape Mode and Portrait Mode supported
  • Mounting : VESA Mount, Panel Mount
  • IP65 Front Panel Protection
  • Sunlight Readable (Optional)

Additional information

Panel

Panel Type TFT LCD
Active Area 17" (4 : 3)
Max. Resolution 1280 x 1024
Display Color 16.7M (RGB 8-bit)
Brightness (cd/m2) 250
Contrast Ratio 1000:1
Viewing Angle 85/85/80/80 (L/R/U/D)
Backlight LED Backlight

Touch Screen

Touch Screen Type 10-point Projected Capacitive
Transparency ≧ 85%
Surface Hardness 7H Surface Hardness
Control Interface USB Interface

System

Power Input DC-in 12V
Power Interface 3-pin 5.0mm Terminal Block
Power Adapter AC to DC 60W Power Adapter
Video Interface
  • 1 VGA : D-Sub, Analog
  • 1 DVI-I : Digital
OSD Control OSD Keypad for Function Management
OSD Language Multi Language

Mechanical

Dimensions 392.4 x 324.7 x 54 mm (15.45" x 12.78" x 2.13")
Gross Weight 4.7 kg (10.36 lb)
Front Panel Protection IP65 Compliant
Mounting
  • VESA Mount (75 x 75mm, 100 x 100mm)
  • Panel Mount

Environment

Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 5% to 90% Humidity, non-condensing
Shock
  • IEC 60068-2-27
  • 20G, Half-sine, 11ms
Vibration
  • IEC 60068-2-64
  • Non-operation : 10Hz to 200Hz, 1.5Grms, X, Y, Z, 30 mins each Axis
EMC CE, FCC
