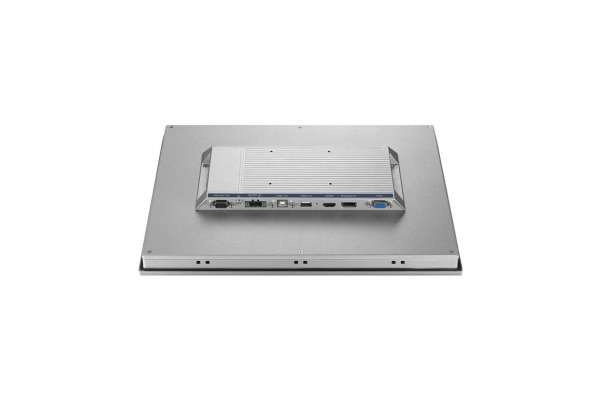

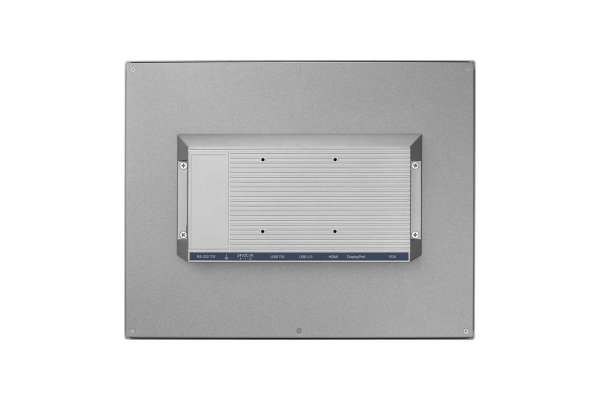

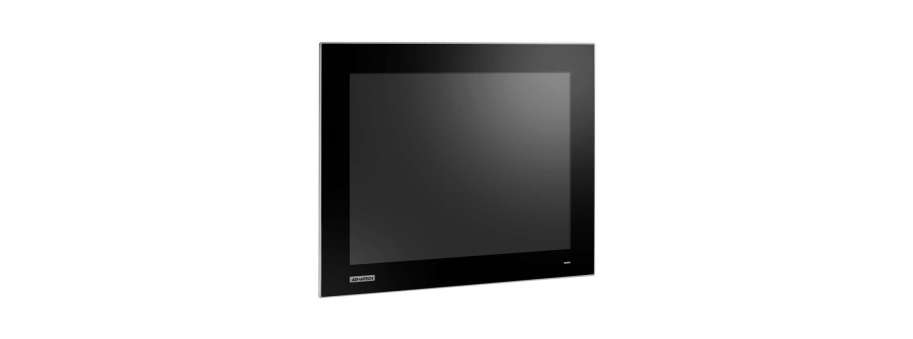

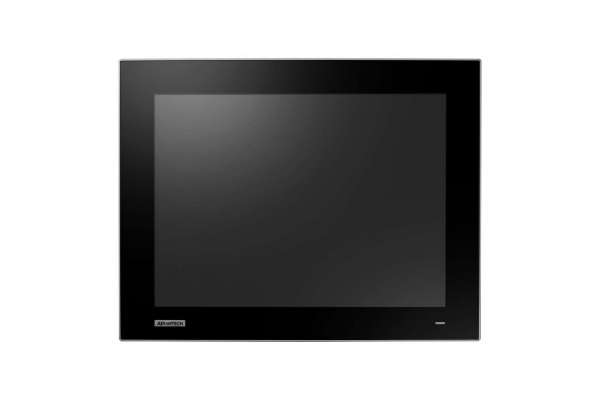

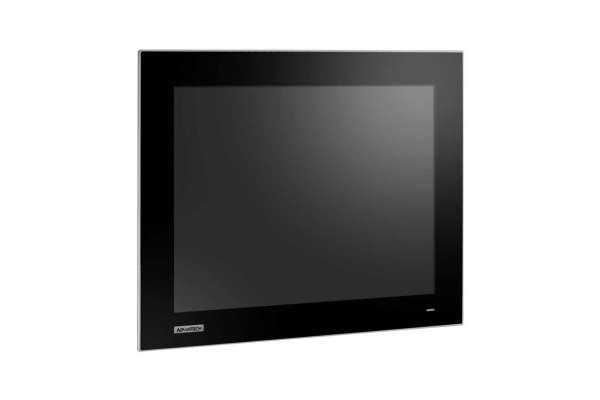

17" monitor Advantech FPM-717

SXGA Industrial Monitor with Resistive Touch Control, Direct HDMI, DP, and VGA Ports Advantech FPM-717

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
FPM-717-R9AE	Промисловий дисплей Advantech FPM-717-R9AE 17" SXGA Ind. Monitor,w/Resistive TS(24Vdc)	58 941,8

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-700 series comprises 15", 17" and 19" industrial-grade monitors with sleek, simple lines and a true-flat touchscreen. Equipped with durable 5-wire resistive touchscreen and an IP66-rated front bezel, FPM-700 series is specifically designed for industrial applications. Moreover, FPM-700 series support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.

• 17” SXGA TFT LED LCD with 50,000 backlight lifetime
• Direct HDMI, DP and VGA input interfaces
• Anti-glare screen with tempered glass
• Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
• Lockable I/O connectors
• Slim design enables easy installation
• OSD control buttons with 2 user-defined contrast/brightness controls
• Combo RS-232 & USB interface for touchscreen functionality
• Supports various mount options: panel, wall, desktop, rack or VESA arm mounting

Additional information

General
Certification	BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)	410.4 x 343.4 x 51 mm (16.15 x 13.5 x 2 in)
Enclosure	Front panel: Die cast magnesium alloy Rear cover: Die-casting aluminum
Mount Options	Stand, Wall, Panel and VESA arm (75 x 75mm)
Power Input	Terminal Block: 24 VDC input
Video Port	HDMI, DP, and VGA
USB	Rear I/O USB 2.0 type A
Weight (Net)	5.4 kg
Power Consumption	1.05 (Standby), 14.55 (Max)
LCD Display
Display Type	SXGA
Display Size	17"
Max. Resolution	1280 x 1024
Max. Color	16.7M
Viewing Angle (H/V °)	170/160
Luminance (cd/m2)	350
Backlight Life	50,000
Contrast Ratio	1000:1
Touchscreen
Type	5-wire analog resistive
Interface	USB/RS232
Light Transmission	Above 75%
OS Support	Windows XP, Vista,7, 8, 10, 11, XPe and Linux
Surface Hardness	3H
Environment
Operating Temperature	-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature	-30 ~ 70 °C (-22 ~ 158 °F)
Relative Humidity	Operating, 95% RH @ 40 °C, Non-Condensing Non-Operating, Operating, 95% RH @ 60 °C, Non-Condensing
IP Rating	IP-66 graded front panel
Vibration	5 ~ 500 Hz, 1 Grms (Operating, Random)
