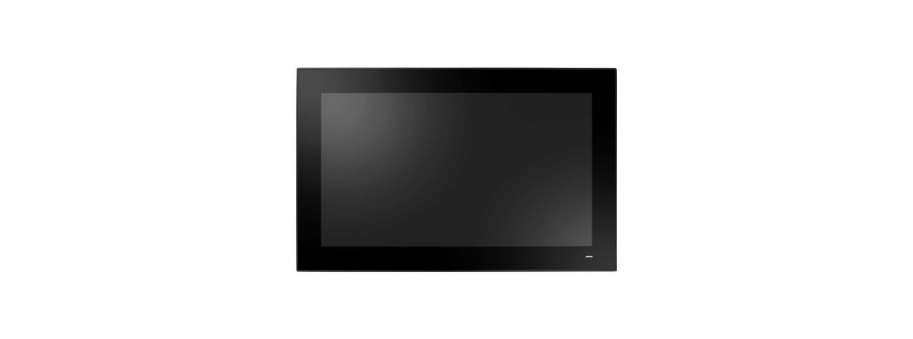

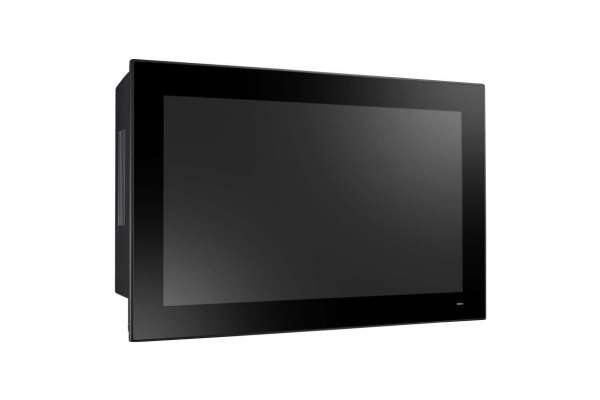

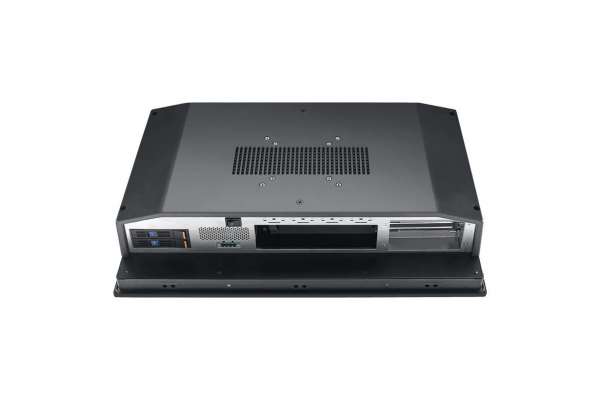

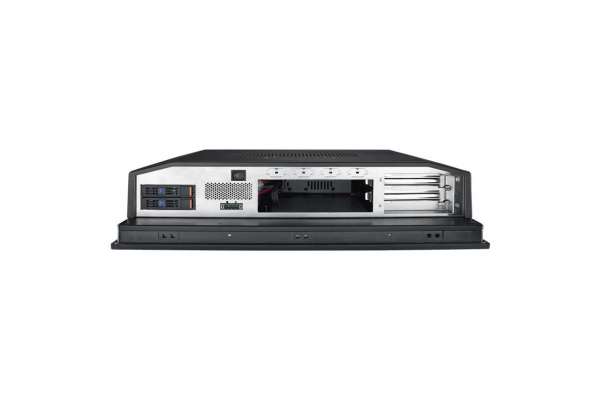

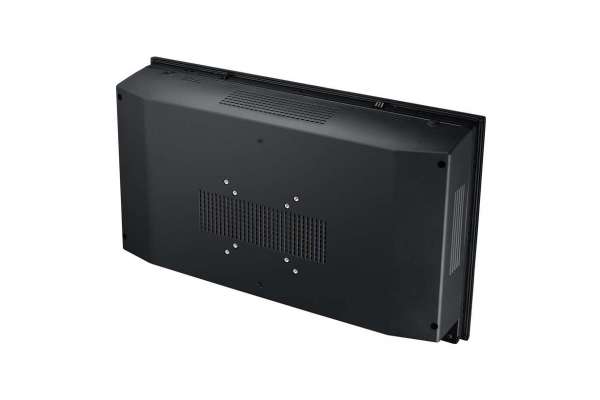

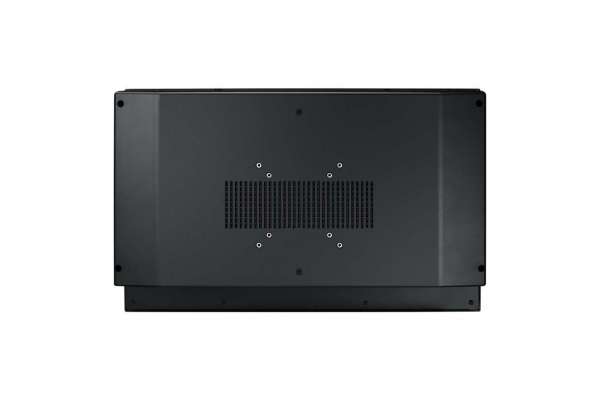

18.5" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards Advantech PPC-618W

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

The PPC-618W, a panel PC chassis with a wide format 18.5" industrial-grade LCD, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern.

  • 18.5" true-flat panel PC with multi-touch projected capacitive
  • Supports certified mini-ITX motherboards (up to 65W TDP processor)
  • PCI or PCIe expansion slots
  • Front-facing power status LED indicators
  • IP66-rated front panel
  • Support dual HDD drawer

Additional information

Model

 PPC-618W-PTA

Supported Motherboard

 PPC-MB series

Chassis
Storage 2 x 2.5" SATA HDD bay

I/O
  • 4 x Reserved ports (DB9)
  • 2 x WLAN antenna holes
  • 1 x DC-In
  • 1 x Power switch
  • Reserved opening: According to the PPC-MB series motherboard specifications
Expansion
  • 1 x PCIe x4 or 2 x PCI (in the accessory box)
  • 2 x PCIe x1 (optional)
  • 1 x PCIe x1 + 1 x PCI (optional)
  • 2 x PCIe x8 (optional,only for PPC-MB-6X0)
  • 1 x PCIe x16 (optional,only for PPC-MB-6X0)
Speaker 2 x 1 W
Fan 2 x 12V; 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 in)

Physical Characteristics
Dimensions (W x H x D) 488 x 309 x 108.2mm (19.2" x 12.1" x 4.2")
Weight 7.6kg (16.75Ib)

OS Support
OS Support According to motherboard specifications

Power Consumption
Input Voltage 24VDC ±20%,12A
Power Consumption
  • 122W with PPC-MB-8260
  • 164W with PPC-MB-610
  • 138W with PPC-MB-620

LCD
Display Type 18.5" TFT LED panel
Max. Resolution 1366 x 768
Viewing Angle 85 (left), 85 (right), 80 (up), 80 (down)
Luminance (cd/m2 ) 450
Contrast Ratio 1000
Backlight Lifetime 50,000 hr

Touchscreen
Touch Type 10-point multi-touch projected capacitive
Light Transmission ≥88%
Controller USB interface

Environment
Operating Temperature
  • 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU)
  • 0 ~ 45 °C (32 ~ 113 °F)(With 65W CPU) *** please refer to the PPC-MB series CPU list
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with SSD, IEC 60068-2-64 compliant
EMC CE, FCC, Class A, UKCA, VCCI
Safety CB, CCC, UL, UKCA
Front Panel Protection IP66 compliant
