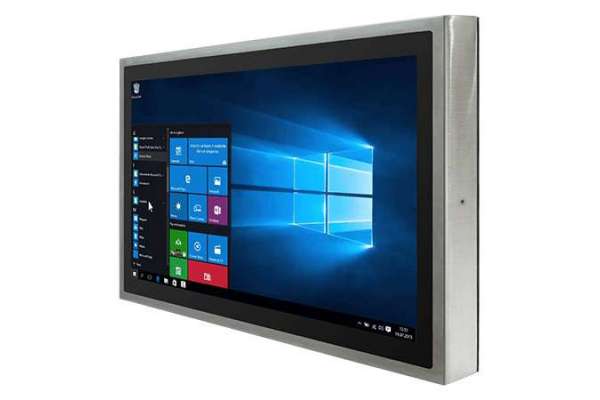

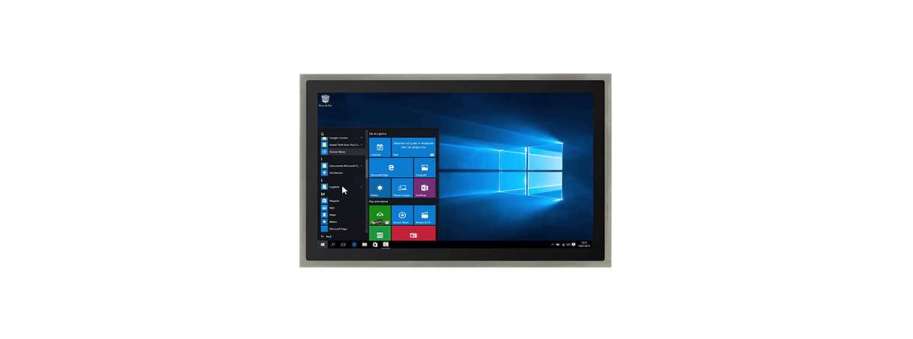

21.5" Intel® Core™ i5-1135G7 IP65 Stainless PCAP Chassis Panel PC Winmate W22IT3S-SPA3

Manufacturer: Winmate
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
W22IT3S-SPA3 Пaнельний комп'ютер Winmate W22IT3S-SPA3, 21,5", IP65, P-CAP сенсорний екран. Процесор Intel Core i5-1135G7, ОЗУ 4GB, блок живлення в комплекті.  136 751,0
  • 11th Generation Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Sealed to IP65 for protection against water and dust
  • A true flat, easy-to-clean front surface with edge-to-edge design
  • Flat multi-touch panel pc with superior readability and P-Cap technology
  • Various mounting solutions, Yoke mount and VESA mount
  • Plenty of I/O s including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports
  • Waterproof ports with adapter cables for external connectivity
  • Support Glove / Rain mode
  • Optical bonding (optional)

Additional information

Display
Resolution 1920x1080
Contrast Ratio 3000:1
View Angles 89,89,89,89
Touch / Glass Projected Capacitive Multi Touch Screen
Size 21.5 inches
Panel Brightness 250.0 nits
Active Area 476.64x268.11 mm

System Specification
WLAN Support (Optional)
Processor Intel Core i5­1135G7 2.4GHz (up to 4.2GHz)
Storage
  • 1 x M.2 M­Key 2242 SATA SSD or 1 x M.2 M­Key
  • 2280 NVMe SSD
  • 128GB
  • 256GB (Optional)
  • 512GB (Optional)
  • 1TB(for NVMe) (Optional)
  • 2TB(for NVMe) (Optional)
  • 4TB(for NVMe) (Optional)
  • 1 x SATA III , up to 2TB (Optional)
Security TPM 2.0
BT Support (Optional)
Memory
  • 1 x SO­DIMM, DDR4 3200 MHz, 4GB
  • 8GB (Optional)
  • 16GB (Optional)
  • 32GB (Optional)
Ethernet controller 2 x Intel® Ethernet Controller
Operating System
  • Windows 11 IoT Enterprise SAC (64 bit) (Optional)
  • Windows 11 Pro 64 bit (Optional)
  • Windows 10 IoT Enterprise (64 bit) (Optional)
  • Linux Ubuntu 22.04 (Optional)

Mechanical
Dimension 541 x 337 x 56.2 mm
Enclosure Stainless Housing
Mounting
  • VESA Mount
  • Yoke Mount
Cooling System Fanless design

Environment
Operating Humidity 10% to 90% RH, Non­Condensing
Storage Temperature ­20°C to 60°C
Operating Temperature 0°C to 45°C
IP rating IP65

Certification
Certification CE, FCC

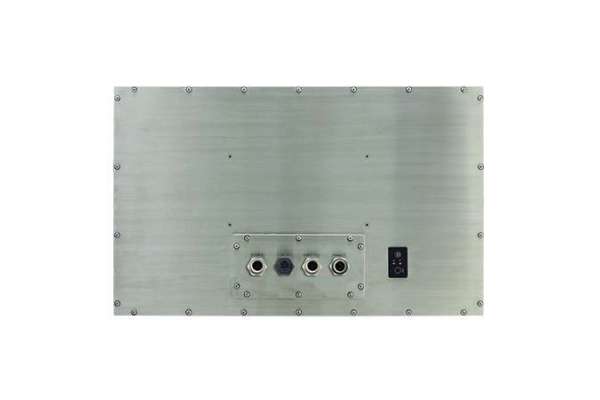

IO Ports
Power Input 1 x M12 waterproof connector for 12V DC
Serial Port 1 x M12 waterproof connector for RS232
Indicator
  • 1 x LED Indicator for power
  • 1 x LED Indicator for storage
USB Port 1x M12 waterproof connector for 2 x USB2.0
LAN 1 x waterproof Giga LAN RJ45 connector

Control
Button
  • 1 x Power Button
  • 1 x Reset Button

Accessory
Accessory
  • 100~240V AC to DC Adapter with waterproof connector
  • Power Cord
  • External USB cable with waterproof connector
  • External COM cable with waterproof connector
  • External LAN cable with waterproof connector
  • Waterproof caps
  • VESA screws

Power
Power Rating 12V DC (M12 type)
