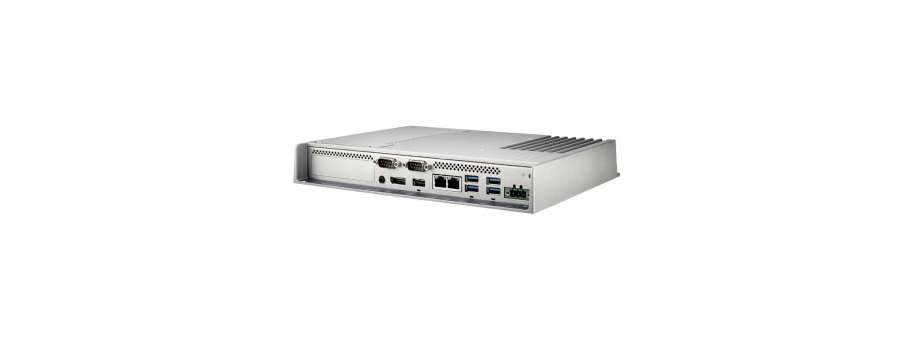

Modular TPC - Computing Box Module with Intel® 8th Gen. Core™ i CPU Advantech TPC-B510

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-B510-833BE Modular TPC Box, Core i3-8145UE, 8G RAM  72 245,5
TPC-B510-853BE Modular TPC Box, Core i5-8365UE , 8G RAM  87 282,8
TPC-B510-873BE Modular TPC Box, Core i7-8665UE, 8G RAM  108 864,0
TPC-B510-853BC Modular TPC Box, Core i5-8365UE, 8G (ACN only)  87 282,8
  • Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
  • Dual channel memory slots support up to 32GB in total
  • Compact, fanless embedded system with chassis grounding protection
  • Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
  • Diverse system I/O and isolated digital I/O via iDoor technology
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Support TPM2.0 hardware security
  • Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" & 19" features 5-wire resistive touch)
  • RAID 0 and 1 Support

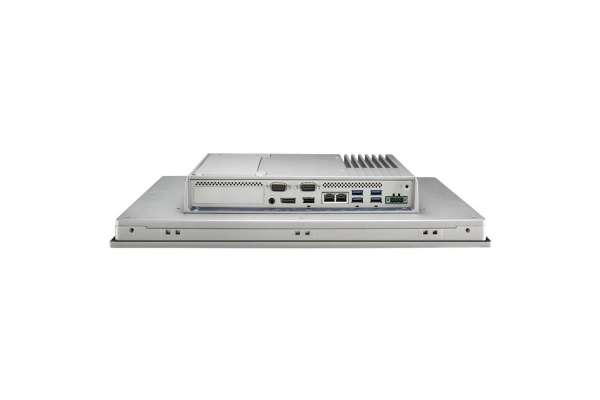

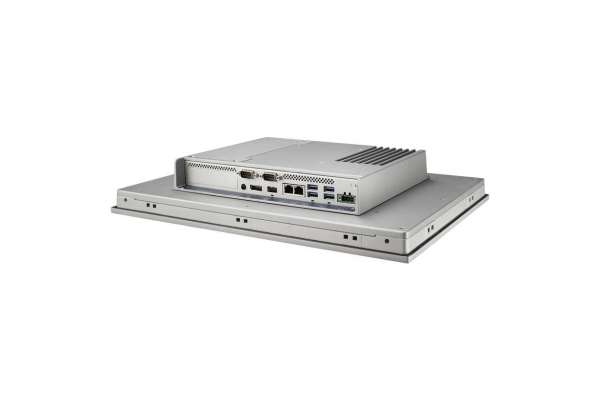

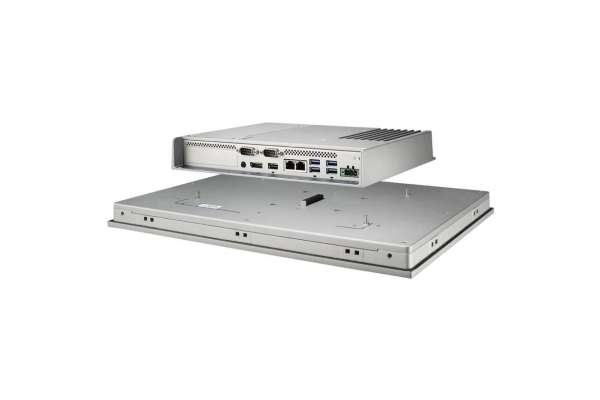

Advantech's TPC-B510 computing box module, as a member of the Modular Series TPC family, is powered by 8th Generation Intel Core processors. With its compact and fanless design, TPC-B510 delivers high performance that not simply meets your demands for a daily-operation control panel, but a genuine Industry 4.0-era-tailored Industrial PC that features bountiful I/Os including four USB 3.1 ports, expansions with M.2 NVME SSD and 5G/Wi-Fi module support for ultra speed data transmission. With an easy pairing with modular series FPM module, the whole system makes an IP66-grade powerful Panel PC that ranges from 12.1" to 23.8" with up to FHD resolution, adapting to your corporate demands both visually and technically.

Additional information

General

BIOS AMI UEFI
Certification BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System Fanless design
Dimensions (W x H x D) 268.96 x 202.96 x 39.5 (mm)
Enclosure Back housing: Die cast aluminum alloy
Mounting VESA Mount, Desktop, Wall or Panel Mount
OS Support Win 10, Android, Linux
Security TPM 2.0 (built-in)
Power Consumption Typ. 29W; Max. 65W
Power Input 24 VDC ± 20%
Watchdog Timer 15-255 sec (system)
Weight (Net) 4.5kg

System Hardware

CPU 8th Gen. Intel® Core™ i3- 8145UE 2.20GHz Dual-core/ i5-8365UE 1.60GHz Quad-core/i7-8665UE 1.70GHz Quad-core processor
Memory
  • Dual channel DDR4 SO-DIMM (Each channel supports up to 16G)
  • 1 x 8G DDR4 SO-DIMM (Built-in)
LAN
  • 1 x 1GbE and
  • 1 x 2.5GbE
Expansion Slot
  • 1 x Full-size mini PCIe
  • 1 x SIM card slot
Storage Slot
  • 1 x M.2 M key 2280 (SATA*or NVMe PClex4)
  • 1 x M.2 B Key 2242 (SATA) * 3042, 3052 (PCIe/USB3.0 for 4G/5G module)
  • 1 x 2.5" SSD/ HDD (SATA, Max. 7mm)*

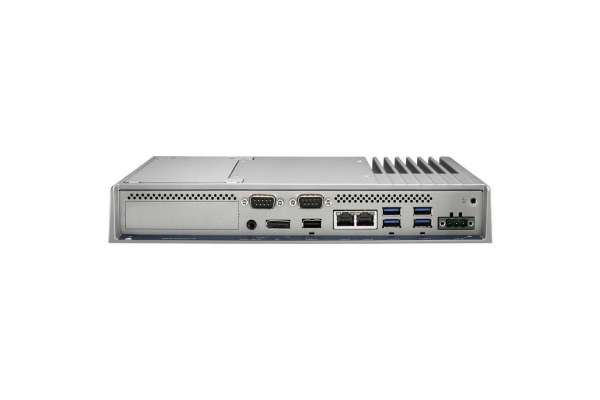

I/O
  • 2 x RS-232/422/485
  • 1 x USB 2.0
  • 4 x USB 3.1 (Gen.2)
  • 1 x iDoor slot
  • 1 x Displayport (Video output)
  • 1 x Audio line out/ mic in

Environment

Humidity 95% RH @ 40°C, non-condensing
Ingress Protection IP66-rated front panel
Operating Temperature -10~55°C (14~131°F) (w/o air flow)
Storage Temperature -20~70°C (-4~158°F)
Vibration Protection With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
