21.5" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards Advantech PPC-621W

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-621W-PTA Корпус панельного компьютера advantech PPC-621W, 21.5'' FHD PPC Optimized Chassis, Pcap, 24VDC  85 820,0
PPC-MB-8260B Материнська плата Advantech, Mini-ITX M/B support 6/7th Core i for PPC-61X1C-RTAE, 2xLan Realtek 8119i  17 581,7
PPC-MB-610B Материнська плата Advantech PPC-MB-610B, Mini-ITX M/B support 8/9th Core i for PPC-MB-610  23 683,5
1960053207N001 Набір для охолодження процесора I-LGA1155 S-95W 92.9x92.9x46-SS 12V0.4A  1 420,8

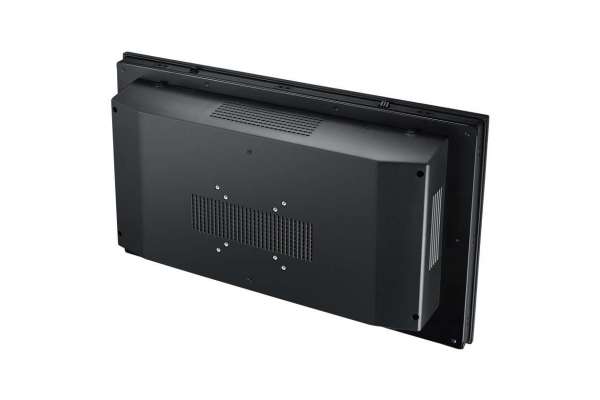

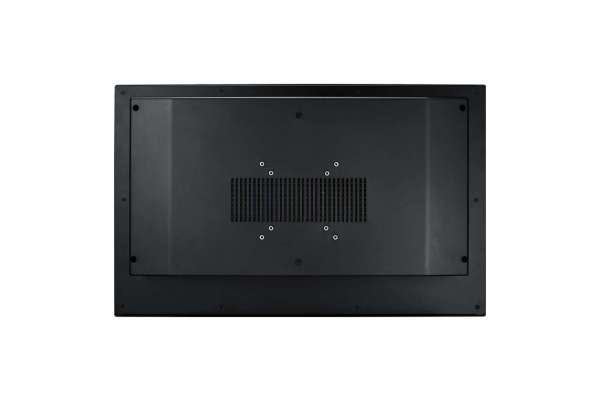

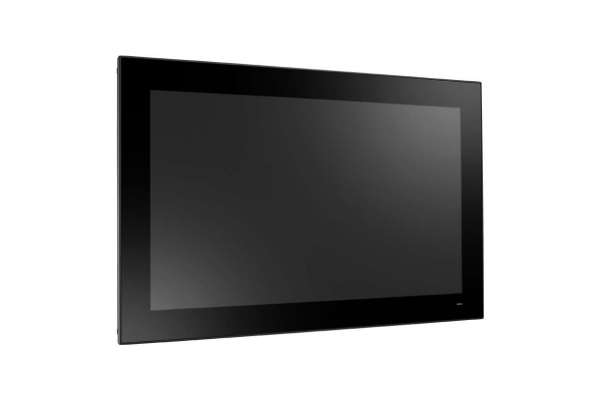

The PPC-621W, a panel PC chassis with a 21.5" TFT full HD LCD 1920 x 1080 resolution, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern.

  • 21.5" true-flat panel PC with multi-touch projected capacitive
  • Supports certified mini-ITX motherboards (up to 65W TDP processor)
  • PCI or PCIe expansion slots
  • Front-facing power status LED indicators
  • IP66-rated front panel
  • Support dual HDD drawer

Additional information

Supported Motherboard PPC-MB series

Chassis

Storage 2 x 2.5" SATA HDD bay

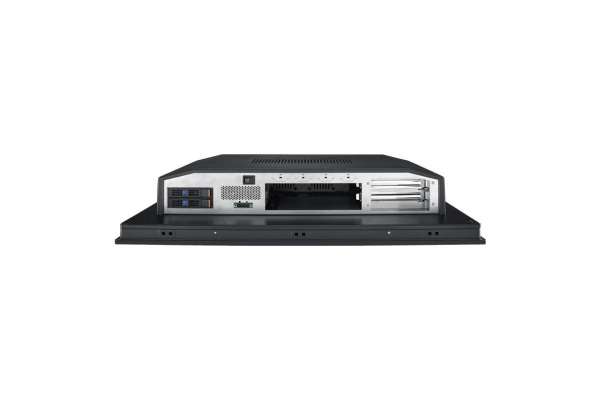

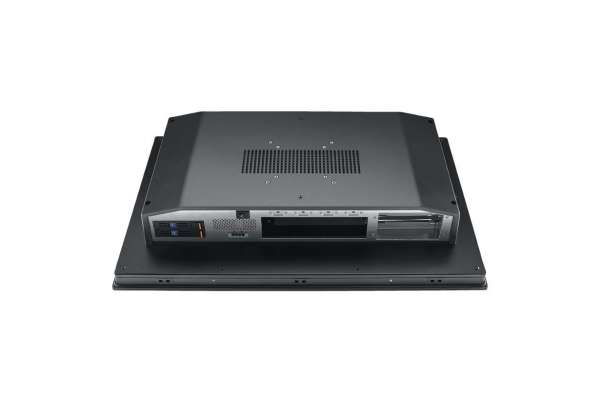

I/O
  • 4 x Reserved ports (DB9)
  • 2 x WLAN antenna holes
  • 1 x DC-In
  • 1 x Power switch
  • Reserved opening: According to the PPC-MB series motherboard specifications
Expansion
  • 1 x PCIe x4 or 2 x PCI (in the accessory box)
  • 2 x PCIe x1 (optional)
  • 1 x PCIe x1 + 1 x PCI (optional)
  • 2 x PCIe x8 (optional,only for PPC-MB-6X0)
  • 1 x PCIe x16 (optional,only for PPC-MB-6X0)
Speaker 2 x 1 W
Fan 2 x 12V; 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 in)

Physical Characteristics

Dimensions (W x H x D) 558 x 349.8 x 108.2mm (21.9" x 13.7" x 4.26")
Weight 8.4kg (18.5Ib)

OS Support

OS Support According to motherboard specifications
Power Consumption
Input Voltage 24VDC ±20%,12A

LCD Display

Display Type 21.5" TFT LED panel
Max. Resolution 1920 x 1080
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 ) 250
Contrast Ratio 1000
Backlight Lifetime 50,000 hr

Touchscreen

Touch Type 10-point multi-touch projected capacitive
Light Transmission ≥88%
Controller USB interface
Operating Temperature
  • 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU)
  • 0 ~ 45 °C (32 ~ 113 °F)(With 65W CPU)
  • *** please refer to the PPC-MB series CPU list
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with SSD, IEC 60068-2-64 compliant
EMC CE, FCC, Class A, UKCA, VCCI
Safety CB, CCC, UL, UKCA
Front Panel Protection IP66 compliant
