HDMI High Brightness Input 12V DC Input 24V DC IP65 Screen Size 21" Standard T range VGA

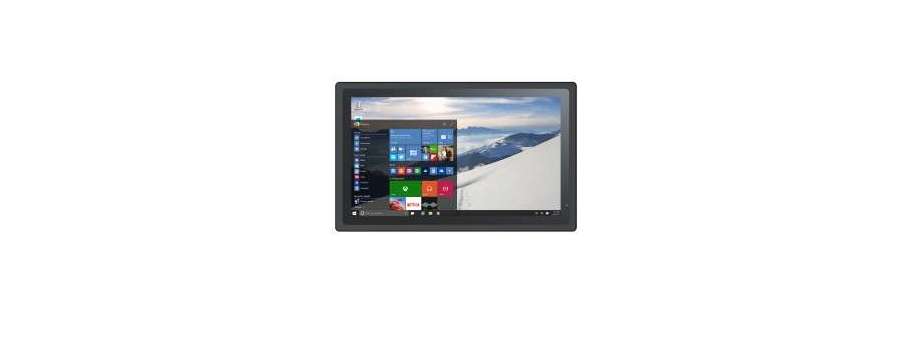

21.5 inch 1000 nits touch screen industrial monitor LILLIPUT TK2150

Price and avalability

Partnumber Description Price VAT incl Avalability
TK2150/C Промисловий монітор Lilliput TK2150/C, 21.5”, 1920x1080, IP65 по передній панелі, 1000nits, NO TOUCH, Input Voltage 12-24V  49 222,1
TK2150/T Промисловий монітор Lilliput TK2150/T, 21.5”, 1920x1080, IP65 по передній панелі, 1000nits, Capacitive Touch, Input Voltage 12-24V  52 902,3

The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP65 front panel design is a great convenience for installation methods and applications.

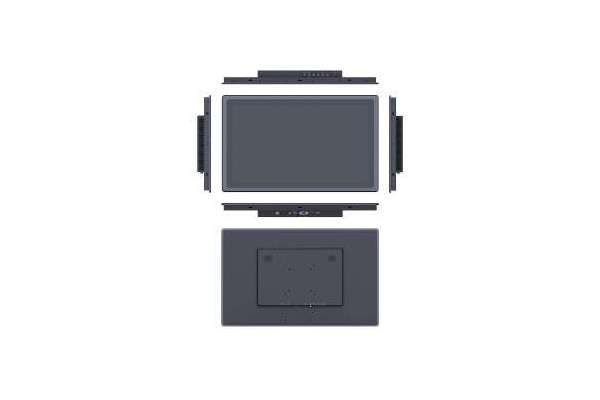

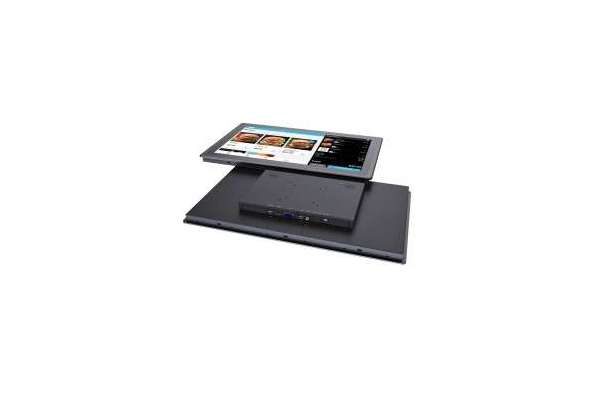

In addition to the interfaces shown, the engineers have creatively reserved a number of expansion ports on the mainboard that can be uniquely customized for different requests The readily replaceable sheet metal also provides a great deal of ease in modifying the interfaces.

The front panel is designed to carry IP65 degree of protection which offer complete protection against particles, and a good level of protection against water, up to water projected by a nozzle against front panel from any direction.

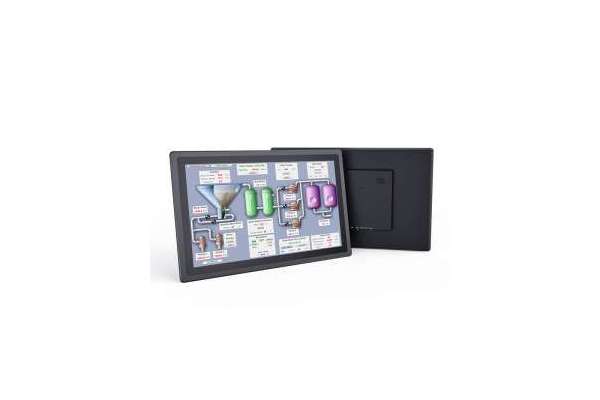

Due to increasingly developed world of industrial automation, HMIs are used in a wide range of applications. As the controlling and monitoring core of automated processes, stability, efficiency and environmental adaptability are particularly important. Therefore, it is adapted to different scenarios.

Additional information

Display

Touch Screen 10-points capacitive touch
Panel 21.5” LCD
Physical Resolution 1920×1080
Aspect Ratio 16:9
Brightness 1000 nits
Contrast 1000:1
Viewing Angle 178°/ 178°(H/V)

Input

HDMI 1 × HDMI 1.4b
VGA 1
AV 1

Supported formats

HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Audio in/out

Speaker 2
HDMI 2ch
Ear Jack 3.5mm - 2ch 48kHz 24-bit

Power

Input Voltage DC 12-24V
Power Consumption ≤37W (15V)

Environment

Operating Temperature 0°C~50°C
Storage Temperature -20°C~60°C
Water-proof Front Panel IP x5
Dust-proof Front Panel IP 6x

Dimension

Dimension(LWD) 556mm × 344.5mm × 48.2mm
Weight 5.99kg
