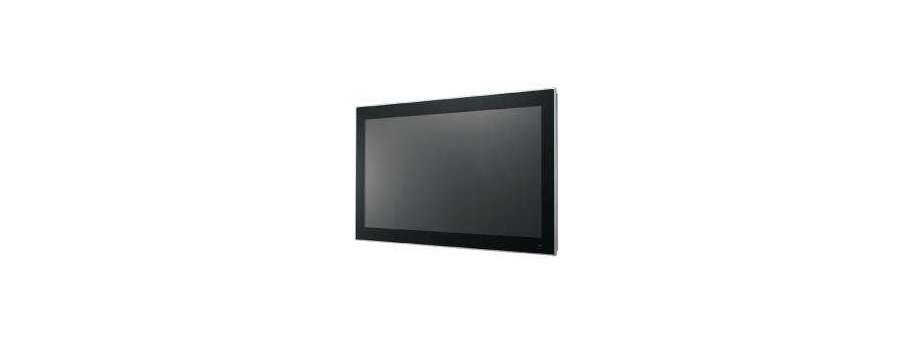

23.8" Panel PC Advantech PPC-3241SW-MART

23.8" Panel PC with Win 10 LTSC and Intel® Core™ i5-7300U Advantech PPC-3241SW-MART

The PPC-3241SW-MART is an all-in-one light panel PC with a wide format 23.8" FHD industrial-grade LCD, Intel® Core™ i5-7300U, 8GB DDR4, 128GB SSD, 90W power adapter and Win 10 LTSC to provide high-performance computing in a compact and fanless system.

• 23.8" true-flat FHD TFT LCD with projected capacitive touch control
• Win 10 IOT LTSC, 8GB DDR4 SDRAM, 128GB 3D TLC SSD

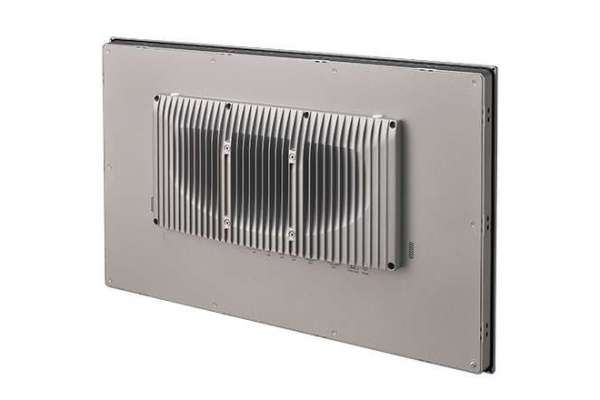

• Fanless design with aluminum alloy enclosure
• Wide Range DC input (12~24V DC), Configurable RS-232/422/485
• IP65-rated front panel, Supports dual displays, VESA 100
• Supports TPM 2.0 (optional)
• No RED Certification

Additional information

System
CPU	i5-7300U
Cores	Dual Core
Frequency	2.6 GHz; 3.5 GHz with turbo boost
L3 Cache	3 MB
TDP	15W
Memory	1 x 8GB SODIMM DDR4 2400 MHz
Storage	1 x 128GB 2.5" 3D TLC SSD 1 x mSATA bay
Network (LAN)	2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM)

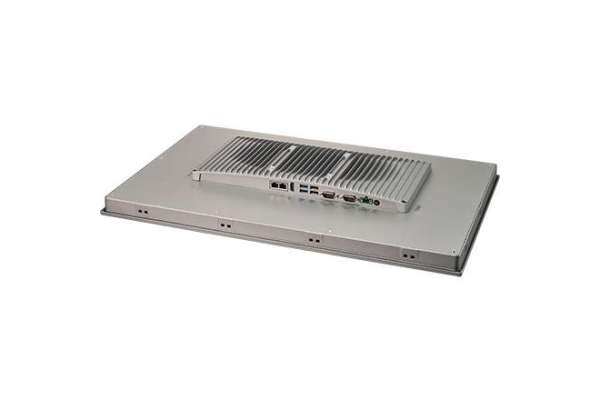

I/O	2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS) 2 x USB 3.0, 2 x USB 2.0 1 x HDMI 1 x TPM 2.0 internal (optional)
Speaker	2 x 1W
Expansion	1 x Full-size mini PCIe slot
Watchdog Timer	255 timer levels, set up by software
Physical Characteristics
Dimensions	595.9 x 374.1 x 61.5 mm (23.5" x 14.7" x 2.4")
Weight	8.6kg (18.96lb)
OS Support
OS Support	Microsoft® Windows 10 IOT LTSC
Power Consumption
Input Voltage	12 ~ 24 VDC 100-240 VAC (90W A/D adapter in the accessory box)
Power Consumption	80W
LCD
Display Type	23.8" TFT LCD (LED backlight)
Resolution	1920 x 1080
Viewing Angle	89(left), 89(right), 89(up), 89(down)
Luminance (cd/m2 )	350
Contrast Ratio	1000
Backlight Lifetime	30,000 hr
Touchscreen
Touch Type	10-point multi-touch projected capacitive
Light Transmission	≥85%
Controller	USB interface
Environment
Operating Temperature	0 ~ 50 °C (32 ~ 122 °F) for SSD
Storage Temperature	-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity	10 ~ 95% @ 40 °C (non-condensing)
Shock	Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration	Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC	CE, FCC Class B, BSMI, EN60601-1-2
Safety	CB, CCC, UL
Front Panel Protection	IP65 compliant
