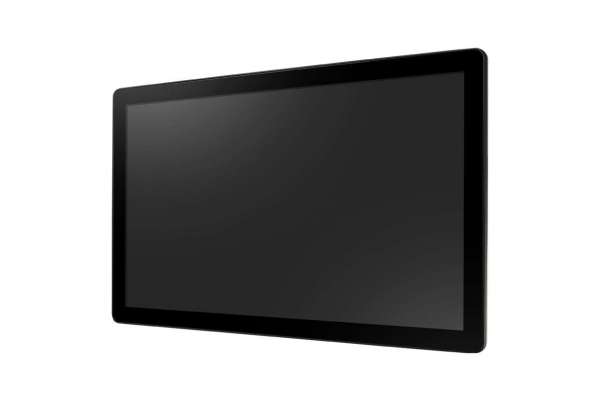

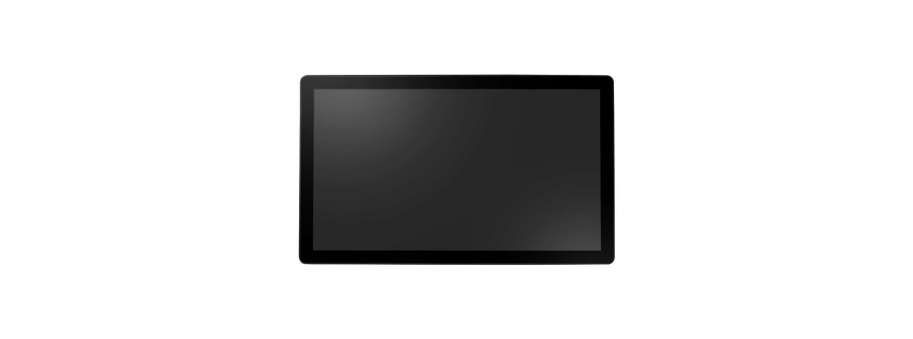

23.8" Ubiquitous Touch Computer Advantech with Celeron® J3455 fanless and slim design UTC-124G1

Price and avalability

Partnumber Description Price VAT incl Avalability
UTC-124G1P-WWW1E 23.8"Pcap,J3455,4G RAM,128G TLC,WF,Win 10 LTSC  103 159,0
UTC-124G3P-ATS0E 23.8"Pcap w/ Celeron J3455,4G RAM  95 396,1

UTC-124G1/ UTC-124G3 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. Thanks for the slim and light looking with 3 way cable routing design, makes UTC-124 good fit to diverse scenarios and areas. The systems deliver updated information with well-designed interactive interfaces, with fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits. Moreover, Advantech DeviceOn/iService Software is a next-generation unified device management unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.

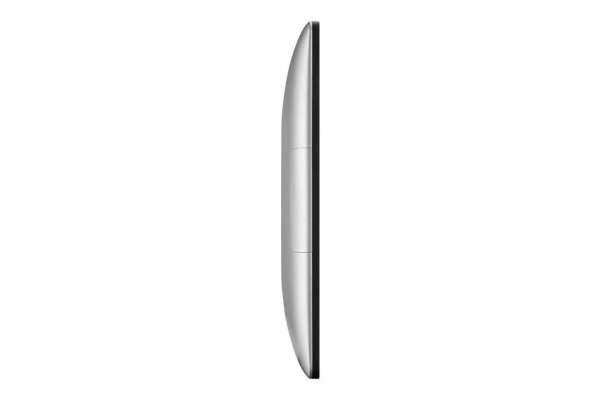

  • Slimmer and Lighter design
  • Low power and fanless system design
  • Built-in Intel Celeron® J3455
  • 23.8" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance

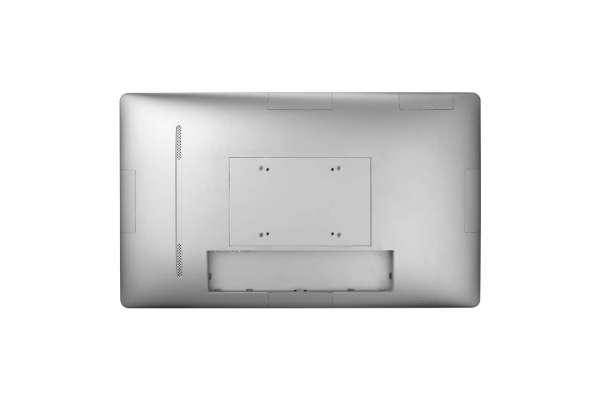

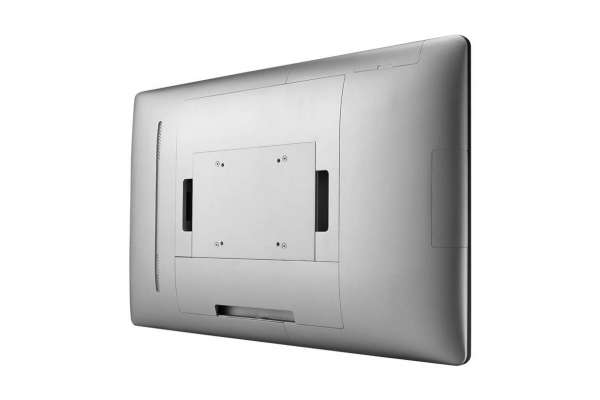

  • Clean back cover design with 3 Way IO cable routing
  • Supports both landscape and portrait screen orientations

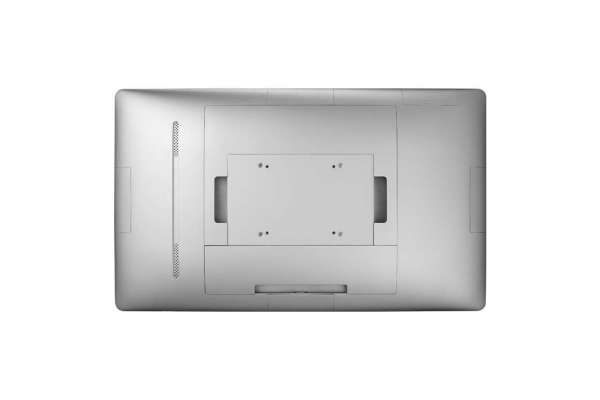

  • VESA 100 mm standard mounting holes for varied mounting demands
  • Support DeviceOn/iService software for remote device management

Additional information

Process system UTC-124G1 UTC-124G3
CPU Celeron® J3455 Celeron® J3455
Base/Burst Frequency 1.10Ghz/2.50Ghz (Quad-Core) 1.10Ghz/2.50Ghz (Quad-Core)
Memory 1 x 204 pin SO-DIMM DDR3L 1600 MHz up to 8 GB 1 x 204 pin SO-DIMM DDR3L 1600 MHz up to 8 GB
Storage 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage 1 x M.2 2242 SSD / 1 x 2.5 internal SATA storage
Network 2 x Gigabit Ethernet ports 2 x Gigabit Ethernet ports
Process system
I/O Ports
  • 2 x RS-232 COM (COM2 RS-232/422/485)
  • 4 x USB3.0
  • 2 x Gigabit Ethernet ports
  • 1 x HDMI 1.4
  • 1 x Audio Phone Jack
  • 1 x RS-232
  • 1 x RS232 / 422 /485
  • 2 x USB 2.0 / 4 x USB 3.0
  • 2 x Gigabit Ethernet (RJ-45)
  • 1 x HDMI
  • 1 x RJ11
  • 1 x Audio Line-out.
  • 1 x Mic-in
Stereo Speaker 2 x 2W 2 x 2W
Bus expansion 1 x M.2 key2230, 1 x M.2 key2242 1 x M.2 key2230, 1 x M.2 key2242
Mounting VESA 100 x 100 mm (Screw Size, M4, 7mm) VESA 100 x 100 mm (Screw Size, M4, 7mm)
Dimension (WxHxD) 587 x 356 x 42.5 587 x 356 x 42.5
Weight 6.53kg 6.65kg

OS Support

  • Win 10 IoT Enterprise 64bit
  • Android 10.1
  • Linux
  • Win 10 IoT Enterprise 64bit
  • Android 10.1
  • Linux

Environment Specification

Operating temperature 0 ~ 40 °C (32 ~ 104 °F)* 0 ~ 40 °C (32 ~ 104 °F)*
Relative Humidity 10 ~ 95% @ 40 °C non-condensing 10 ~ 95% @ 40 °C non-condensing
Vibration 0.5G 0.5G
Shock Shock 10G peak acceleration (11 msec. duration) Shock 10G peak acceleration (11 msec. duration)
Certification CE, FCC, CB, UL, CCC, BSMI CE, FCC, CB, UL, CCC, BSMI
Front Panel Protection IP 65 Compliant IP 65 Compliant

Power Supply

DC Input Rating 12-24V/7-3.5A (90W Adapter) 12-24V/7-3.5A (90W Adapter)
PoE n/a n/a
Power consumption 43.5W 43.5W

LCD Display

Size/Type 23.8" FHD 23.8" FHD
Max.Resolution 1920 x 1080 1920 x 1080
Max. Color 16.7M 16.7M
Pixel Pitch (um) 2745 x 2745mm 2745 x 2745mm
Brightness (cd/m2 ) 350 350
View Angle 178° /178° 178° /178°

Touch Screen Option

Type Projected Capacitive. Projected Capacitive.
Light Transmission > 85% > 85%
Controller USB Interface USB Interface
