DP
HDMI
High Brightness
Input 12V DC
IP65
IP66
Military T range
Panel mount
Screen Size 24"
VGA

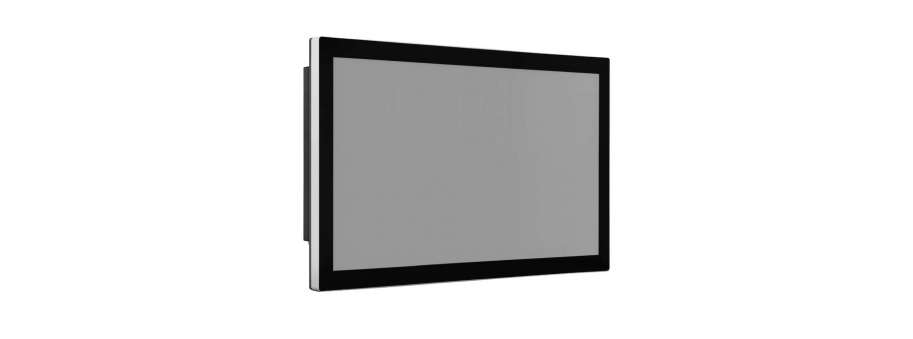

IP65/66 Bezel-Free P-cap Monitor, VGA/DP/HDMI, Panel Mounting Kits, and Power Input DC 12V ELGENS TDM-P240WT
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| TDM-P240WT | Промисловий монітор Eldgens TDM-P240WT 24" Bezel-Free P-cap Monitor, Wide Temp, IP65 Aluminum Front Bezel, VGA/DP/HDMI & IEC-609 | 121 515,0 |
- IPS Wide Viewing Angle
- Bezel-Free Design
- IP65 Front Bezel
- IP66 Front Bezel Compliant
- VGA/DP/HDMI Port
- USB Port for Touch
- DC 12V Power Input (Optional DC9~36V)
- Optional 256 Levels Dimming
- Optional OSD In Front Right Side
- Optional IEC60945 Compliance
- Optional 1000~1500 nits High Brightness
- Optional M12 Metal Connector
- Backside OSD Buttons
- Optional Anti-UV / Irradiation
- Optional Color Calibration / ECDIS
Additional information
Specification |
|
| Max. Resolution | 1920*1080 |
| Contrast Ratio | 5000 : 1 |
| Max. Color | 16.7 M |
|
Luminance (cd/m2)
|
300 nits
Optional backlight 1000~1500 nits
|
| View Angle | 89/89/89/89 |
| Touch Screen | 24" P-cap USB interface |
| Power Input | DC 12V with DC 12V adapter by 3-Pin Terminal Block |
| Mounting |
|
| Operating Temp | -40 ~ 80 °C / -20 ~ 60 °C |
| Storage temp | -40 ~ 80 °C / -20 ~ 60 °C |
|
OSD Function
|
1. Power
2. Backlight Up
3. Back light Down
4. Home
5. Status switch
6. LED for Day, Noon and Night status (Optional Only for ECDIS)
|
