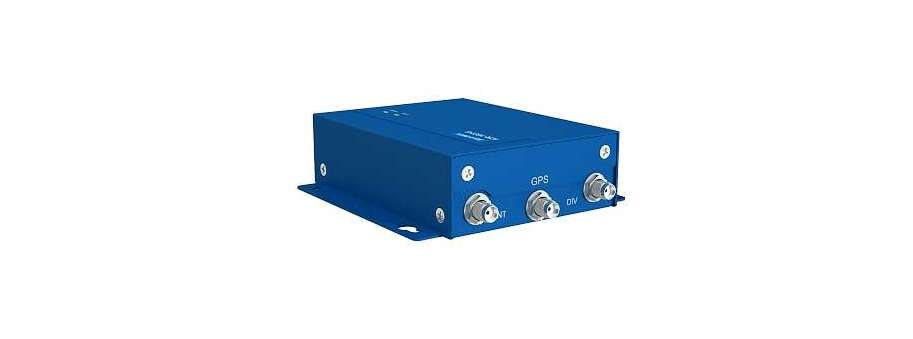

Industrial router EMEA/LATAM/APAC, 2x Ethernet, GPS, Metal, Without Accessories Advantech ICR–1601G
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICR-1601G | Мережевий роутер з портами вводу-виводу Advantech ICR-1600 Industrial Cellular Router,GPS,EMEA,2x ETH,ACC | 15 419,0 | |
| ICR-1601W | Мережевий роутер з портами вводу-виводу Advantech ICR-1600 Industrial Cellular Router,WIFI,EMEA,2x ETH,ACC | 16 194,5 |
- 4G LTE Cat.4 Industrial Router
- 2× Micro SIM with cover
- 2× Ethernet 10/100
- *optional WiFi - 802.11b/g/n, AP, Multi SSID, WDS
- *optional GNSS receiver
- MicroSD card slot for System log
- Metal cover with DIN and Wall mount options
- WAN failover
Additional information
Ports, led, antennas |
|
| 2× Ethernet | RJ45, 10/100 Mbps |
| 2× SIM | SIMs Micro (3FF) |
| 1× MicroSD | MicroSD card slot (System log) |
| LED indicators | WAN, System |
| 2× ANT | SMA connectors |
| GNSS (GPS, GLONASS) - *optional | SMA connector |
| WiFi antenna - *optional | R-SMA connector |
Power, consumption, environmental |
|
| Power Supply | 5–18VDC (DC Jack) |
| Consumption | 7 W |
| Temperature Range – Operating / Storage | -30 to +70 °C / -40 to +85 °C |
| Humidity – Operating / Storage (non-condensing) | 10 to 95 % / 10 to 95 % |
Mechanical |
|
| Metal case | Wall mount & and DIN mount options |
| Enclosure Dimensions | 93×90×27mm (100mm including antenna connectors) |
| Weight | 252 g |
WI-FI |
|
| Antenna Connector | 1× R-SMA – 50 Ohms |
| Supported WiFi band | 2.4 GHz |
| Standards | 802.11n, 802.11g, 802.11b |
| 2.4 GHz supported channels | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 |
| Functions | Multi-SSID, WMM, WDS |
| Security | WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x |
| Type of device | Access Point |
