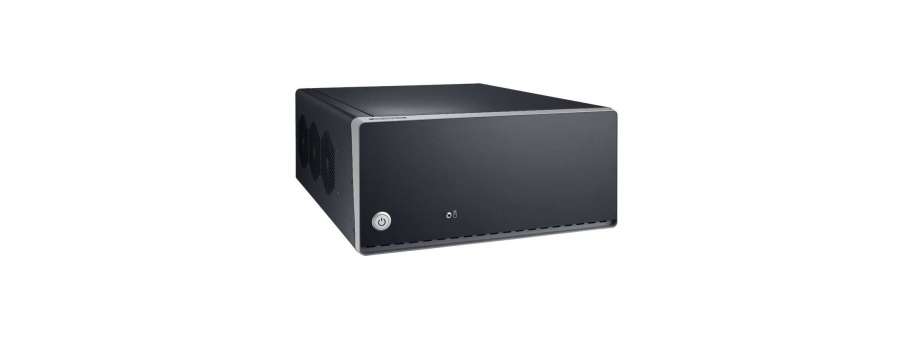

4U Edge AI Server powered by AMD EPYC 7003 series processor, provides up-to 64 cores, 768GB DRAM, four PCle x16 expansion slots Advantech AIR-520

  • 4U Edge AI Server supports AMD EPYC 7003 series processors
  • Able to feature 4x single-slot or 2x dual-slot graphic cards
  • Up to 6 Shock Resistant 2.5" drive bays
  • To accommodate 1200W PSU for different applications
  • NVIDIA Certified workstation with two RTX A5000 with NVLink

Additional information

Model AIR-520-000A1
Dimensions (W x H x D) 380 x 176 x 454.1 mm

System Thermal Design

CPU Cooler CPU cooler for 225W TDP 1970004817N001
System Fan 1 Fan Axial 91x91x25

Environmental Conditions

Operating Temperature
  • 0 ~ 40°C (with 2x RTX A5000, tested by NVIDIA Certified Program)
  • 0 ~ 35°C (Advantech test standard)
Non-operating Temperature -20 ~ 60°C
Humidity Humidity
Vibration (5 ~5 00Hz) 3Grms

CPU

AMD EPYC 7003 series: 7713P/ P7543P/ P7313P
DRAM 6 x RDIMM 288pin DDR4 slot
Storage 6 x 2.5" SSD, 1 x M.2 with PCIe Gen4 x4

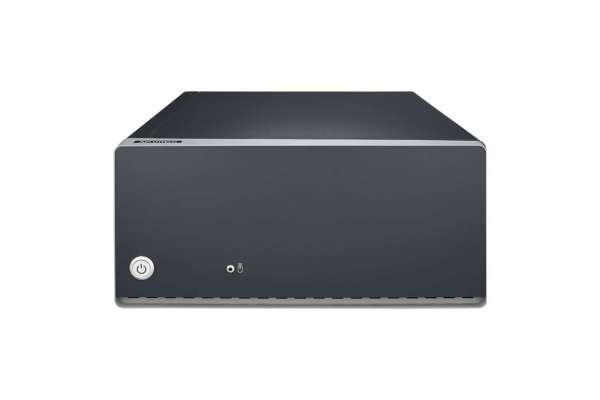

Front IO

Power switch 1 with LED
Power remote Jack 1 2.5Φ Jack

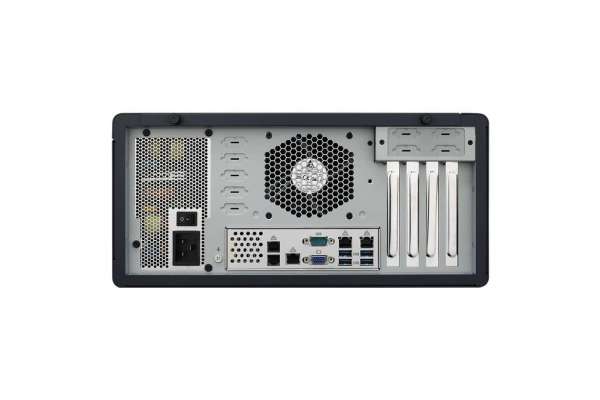

Rear IO

Display ports 1 VGA from BMC
USB 4 USB Gen2 x1
LAN
  • LAN1/2: 2.5GbE Intel i226-LM;
  • LAN3/4: 10GbE Intel X550;
  • LAN5: BMC LAN

Certification

EMC / Safety / Certifications CE / FCC / LVD / BSMI

Power Requirements

Power Supply Unit 1200W built-in
Weight 15.5 Kg
Mounting bracket 4U Rack Mount
PCIE Expansions PCIE Expansions
