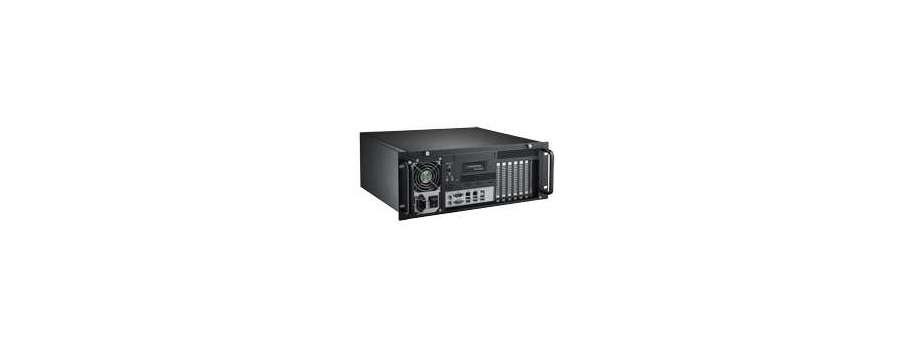

4U Rackmount Chassis Advantech IPC-631

4U Front I/O Short Depth Rackmount Chassis IPC-631 for ATX/MicroATX Motherboard

System Components >> Rackmount computer chassis

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • All I/O ports, buttons, LEDs, drive bays, AC inlet located on the front side
  • Supports ATX/Micro ATX MB with CPU TDP up to 120W
  • Built-in 500W single or redundant power supply
  • 350mm short depth
  • Optional module for dual hot-swap 2.5" drive drive bays for RAID 0, 1
  • PWM controlled smart fan generating low noise

Price and avalability

Partnumber Description Price VAT incl Avalability
IPC-631MB-50RE Промисловий корпус ком'ютера IPC-631MB W/RPS8-500ATX-XE  33 055,7
IPC-631MB-50ZE Промисловий корпус ком'ютера IPC-631MB-XE W/PS8-500ATX-ZE  16 928,9

Additional information

Part Number

IPC-631MB-50RE

IPC-631MB-50ZE

Form Factor

4U Rackmount

4U Rackmount
Colling

Air Filter

Yes

Yes

Fan

2 (12 cm / 82 CFM)

2 (12 cm / 82 CFM)

Disk Drive Bay



2.5" Internal

2

2

Hot-swap Drive Bay

2 ( 2.5" SATA - Optional )

2 ( 2.5" SATA - Optional )

Slim ODD

1

1

Environment



Non-Operational Temperature

-40 ~ 70° C (-40 ~ 156° F)

-40 ~ 70° C (-40 ~ 156° F)

Operating-Temperature

0 ~ 45

0 ~ 45

Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz) 2 G 2 G

Front I/O Interface



Phoenix front PW-ON

1

1

Miscellaneous



Control

Power Switch, System reset

Power Switch, System reset

LED Indicators

Power, HDD

Power, HDD

System Monitoring

Chassis intrusion switch

Chassis intrusion switch

Power Supply

500W (Redundant)

500W (Single)

Physical Characteristics



Weight

8 kg (17.6 lb)

9.96 kg (21.93 lb)
Dimensions (W x H x D)

482 x 177 x 348 mm (19'' x 7.0'' x 13.7'')

482 x 177 x 348 mm (19'' x 7.0'' x 13.7'')
