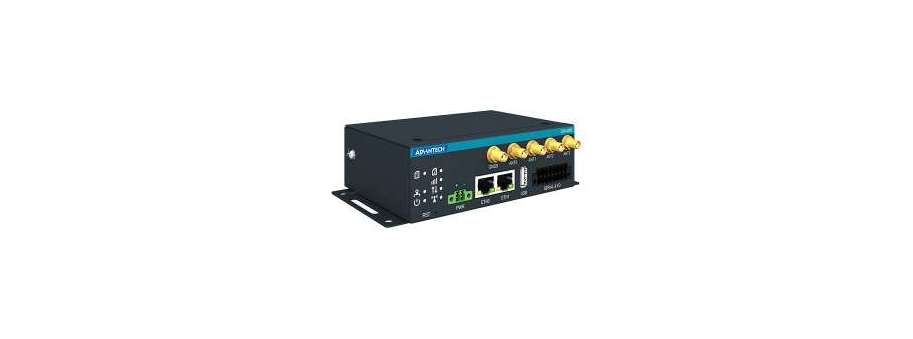

5G Router Advantech ICR-4271

Industrial 5G Router & IoT Gateway with 2× Serial RS232/RS485, 4× DI, 2× DO 2× SIM, TPM 2.0, 2× Gigabit Ethernet Advantech ICR-4271

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
ICR-4271	Cellular Router, 5G, 2x ETH	64 113,3
ICR-4271W	Cellular Router, 5G, 2x ETH, WIFI	70 191,0

• 5G NR Cellular Connectivity, Sub-6GHz
• 3GPP Release 16, Supports both NSA and SA modes
• Quad-core CPU with 1 GB RAM
• 2× SIM, TPM 2.0
• 2× Gigabit Ethernet
• USB Host 3.0
• 2× Serial RS232/RS485, 4× DI, 2× DO (ICR-4200)
• GNSS Receiver, Micro SD Card
• Robust metal cover with wall and DIN mount options
• Wide operational temperature range
• Optional Tri-Band WiFi 6 and Bluetooth V5.2

Additional information

System
CPU	64-bit Quad-Core ARM Cortex-A53, 1.6 GHz
Memory	RAM - 1GB, eMMC - 8 GB (2.18 GB for Router Apps, 474 MB for customer data, 231 MB for system data)
Watchdog	HW Watchdog
RTC	Battery backup RTC
TPM	Trusted Platform Module (TPM) 2.0
Interfaces
Ethernet	2× Ethernet, RJ45, 10/100/1000 Mbps, isolation 1.5 kV
Serial Lines (ICR-4200)	2× RS232/RS485 independently selectable by DIP switch RS232 (Tx, Rx, GND, RTS, CTS), RS485 (A(-), B(+), GND), 16-pin terminal block (no isolation)
I / O (ICR-4200)	4× Digital Input (48 V / 3 mA consumption) 2× Digital Output (Open Drain, 48 V / 500 mA) 16-pin terminal block (no isolation)
USB	1× USB 3.0 Host Connector
MicroSD Card	1× Micro SD Card Slot
Reset Button	Reboot / Factory reset
LED Indicators	System, 3-level signal strength, Data activity, SIM1/SIM2 status, 3G/4G/5G technology, WiFi, User, ETH
GNSS
Antenna	Active antenna L1 band
Systems	GPS, GLONASS, BDS, Galileo
Protocol	NMEA
Ac Time-to-First-Fix	Cold start: 28 s Warm start: 27 s Hot start: 1 s
Environmental
Power Supply	9 – 48 V DC (2-pin terminal block)
Consumption	Without WiFi: Idle 3.5 W / Average 4.2 W / Maximum 9.6 W With WiFi: Idle 4.6 W / Average 6.3 W / Maximum 13.5 W
Sleep Mode	Yes, ICR-4171(W ) 10 mW Yes, ICR-4271(W ) 15 mW
Operating Temperature	-40 to +75 °C
Storage Temperature	-40 to +85 °C
Humidity	0 to 95 %
IP Cover	IP30
Physical Characteristics
Dimensions	43 × 130 × 90 mm
Enclosure	Robust Metal Case, Grounding Screw
Mounting	Wall Mounting, DIN Rail
Weight	ICR-4171: 510 g ICR-4171W: 525 g ICR-4271: 515 g ICR-4271W: 530 g
WiFi - optional (ICR-4171W, ICR-4271W)
Antenna	2× R-SMA connectors, 2×2 MIMO
Standards	IEEE802.11 ax/ac/a/b/g/n 2.4 GHz / 5 GHz / 6 GHz
Data Rate	Up to 450 Mbps @ 2.4 GHz Up to 950 Mbps @ 5 GHz Up to 950 Mbps @ 6 GHz
Security	TKIP, AES, WPA, WPA2, WPA3, 802.1X
Modes	Access Point (up to 15 clients), Station, Multirole STA & AP
Bluetooth - optional (ICR-4171W, ICR-4271W)
Antenna	Shared R-SMA WiFi antenna connector
Bluetooth	Bluetooth V5.2
Standards & Regulations
Radio	EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 908-17, EN 301 908-25, EN 303 413, EN 300 328, EN 301 893, EN 303 687 FCC part 22H, FCC part 24E, FCC part 27, FCC part 90, FCC part 96, PTCRB
EMC	EN 301 491-1, EN 301 489-17, EN 301 489-19, EN 301 489-52, EN 610000-6-2, EN 610000-6-3, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC part 15.B, FCC part 15C, FCC part 15E
Safety	IEC 62368-1
Cybersecurity	EN 18031-1
Transportation	E-Mark
National	CE, UKCA, FCC, IC
Carrier Approva	AT&T, T-mobile, Verizon *project based*
Mechanical	EN 60529, EN 60068-2-27, EN 60068-2-64
Climatic	EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-78
Environmental	REACH, RoHS3, WEEE
Cellular Module Approvals*	Regulatory: FCC, IC, RED, NCC, JATE/TELEC, KCC, RCM, PTCRB, GCF, ISED, CCC, UKCA Carrier: Verizon, AT&T, T-mobile, KDDI, Telstra
