8-ch Analog Input Module ADAM-4017

8-channel differential analog input module Advantech ADAM-4017 with 16-bit ADC with RS-485 and Modbus / RTU

Signal input/output >> Remote input/output

 Price and avalability

Manufacturer: Advantech Co., Ltd.

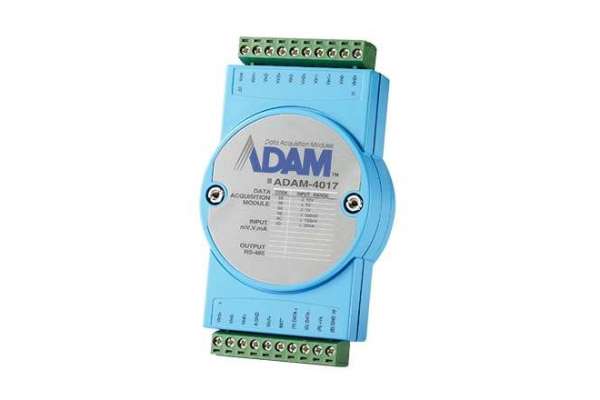

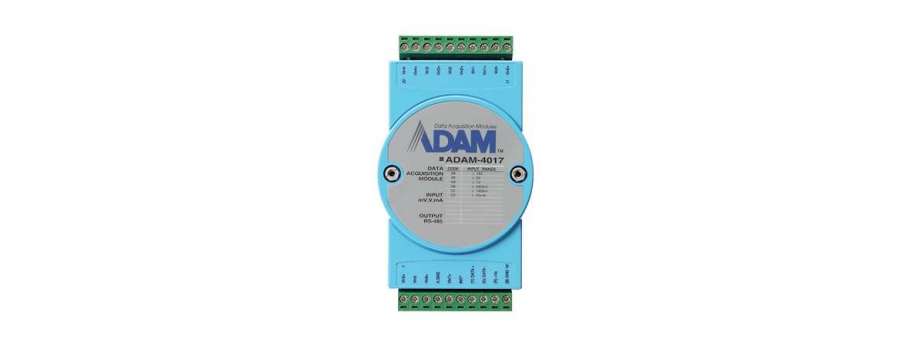

The ADAM-4017 is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its opto-isolated inputs provide 3000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input-line voltages. ADAM-4017 offers signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. The module protects your equipment from ground loops and power surges by providing optoisolation of A/D input and transformer based isolation up to 3000 VDC. The ADAM-4017 uses a 16-bit microprocessor-controlled sigma-delta A/D converter to convert sensor voltage or current into digital data. The digital data is then translated into engineering units. When prompted by the host computer, the module sends the data to the host through a standard RS-485 interface.

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-4017-D2E Модуль введення Advantech ADAM-4017, на 8 каналів аналогового входу з RS485, Analog Input Module  5 400,3 Доступно

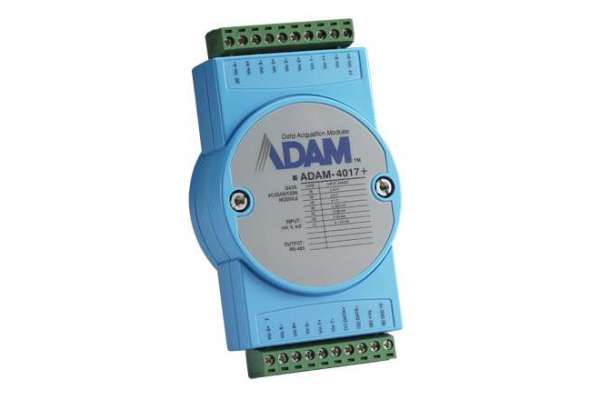

ADAM-4017+-CE Модуль введення на 8 аналогових каналів Adavantech ADAM-4017+ (RS485 8-channel Analog Input Module with Modbus, 4~20mA, 16-bit resolution)  7 745,1
