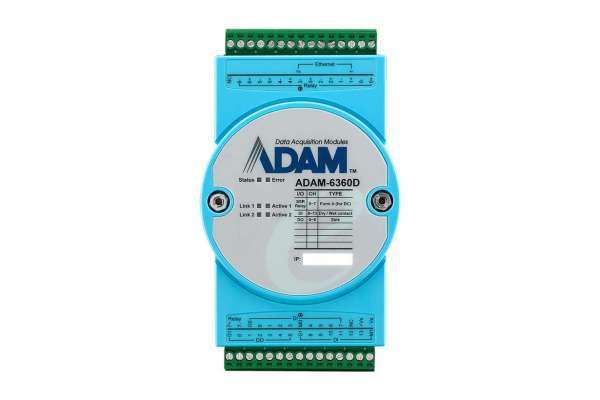

8Relay(SSR)/14DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O Advantech ADAM-6360D

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-6360D-A1 Модуль програмований дискретного вводу виводу Advantech OPC UA and Security Remote I/O_SSR Relay Module  18 161,4

Advantech ADAM-6300 series is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.

Additional information

Relay Output (PhotoMOS SPST)

Channels 8 (Form A)
Contact rating (Resistive and Inductive load) 1 A @25°C @30 VDC 0.7A @70°C @30 VDC
Relay-on time 1.3 ms
Relay-off time 0.8 ms
Isolation (Relay output to power) 1500Vrms
Peak Load Current 4A (100ms (1 pulse))
Total Power Dissipation 400mW / channel
On-state resistance 0.5Ω

Digital Input

Channels 14
Dry contact
  • logic 0: Open
  • logic 1: Closed to ground
Wet contact
  • logic 0: 0 ~ 3 VDC
  • logic 1: 10 ~ 30 VDC
DI8~DI13 support 3 kHz counter input
DI8~DI13 support 3 kHz frequency input

Digital Output

Channels 6
Output type Sink type, 30 VDC, 0.1A max. per channel
DO0~DO5 support 3 kHz pulse output
