Planet IGS-624HPT

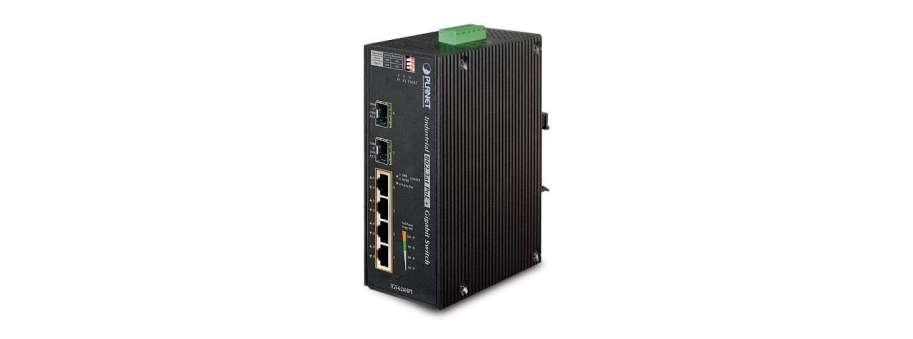

Industrial Gigabit switch Planet IGS-624HPT with 4-Port 10/100/1000T PoE+ and 2-Port 100/1000X SFP

Networks and Communications >> PLANET industrial Ethernet

 Price and avalability

Manufacturer: PLANET

Long Distance High Power PoE and Gigabit Data Extension Solution

The PLANET IGS-624HPT is an Industrial Gigabit 802.3at PoE+ Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-624HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

Physical Port

  • 4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE Injector
  • 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured

Power over Ethernet

  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSE
  • Up to 4 IEEE 802.3af / 802.3at devices powered

  • Supports PoE Power up to 30.8 watts for each PoE port
  • Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
  • Auto-detects EEE 802.3af/at equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m

Layer 2 Features

  • Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)
  • Automatic address learning and address aging

Industrial Case / Installation

  • IP30 aluminum metal case protection
  • Dual SFP Ports Auto Link Redundant Mode Support
  • DIN Rail and Wall Mount Design
  • 24~48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave power
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature

Price and avalability

Partnumber Description Price VAT incl Avalability
IGS-624HPT Промышленный коммутатор Planet IP30 6-Port Gigabit Switch with 4-Port 802.3AT POE+ plus 2-port 100/1000X SFP (-40 to 75 C)  10 565,4 Доступно

Additional information

Hardware Specifications

Copper Ports 4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation
SFP / mini-GBIC Slots 2 x SFP interfaces
Supports 1000Base-SX/LX and 100Base-FX SFP transceivers
DIP Switch DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant mode
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
LED 3 x LED for System and Power:
 ■ Green: DC Power 1
 ■ Green: DC Power 2
 ■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
 ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT
 ■ Orange: PoE In-use
1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
 ■ Green: LNK/ACT
4 x LED for PoE Power Usage (W):
 ■ Orange: 30, 60, 90 and 120W
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 aluminum metal case
Installation Type DIN rail kit or wall mount
Dimensions (W x D x H) 152 x 107x 72 mm
Weight 1539g
Power Requirements 48V DC, 5A max. or 24V DC, 10A max.
Redundant power with polarity reverse protection function
Power Consumption / Dissipation 15.1 watts / 52 BTU (System loading without PoE)
135.1 watts / 461 BTU (Full loading with PoE function)
Power over Ethernet
PoE Standard IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
PoE Power Supply Type End-Span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)
Max. number of Class 4 PD 4
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch fabric 12Gbps
Throughput (packet per second) 8.93Mpps@64bytes
Maximum Transmit Unit 9216 bytes
Speed SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000Mbps
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Environment
Temperature
Operating: -40~75 degree C
Storage: -40~75 degrees C
Humidity
Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
