Workstation-grade Platform on Intel® Core™ i9/i7/i5/i3 Processor 14th gen, with integrated graphics and accelerated AI performance Vecow ECX-3000 AI
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECX-3000-PoER AI | Промисловий компактний комп'ютер Vecow ECX-3000, Intel Core i9/ i7/ i5/ i3 Processor , 5 2.5G LAN w/4 PoE+, 1 GigE LAN, 4 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO, 2 SSD Tray, with Hailo-8™ AI Accelerator | 120 582,0 | |
| ECX-3000-PoES AI | Промисловий компактний комп'ютер Vecow ECX-3000, Intel Core i9/ i7/ i5/ i3 Processor , 5 2.5G LAN w/4 PoE+, 1 GigE LAN, 4 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO, 4 M.2 Tray, with Hailo-8™ AI Accelerator | 134 442,0 |

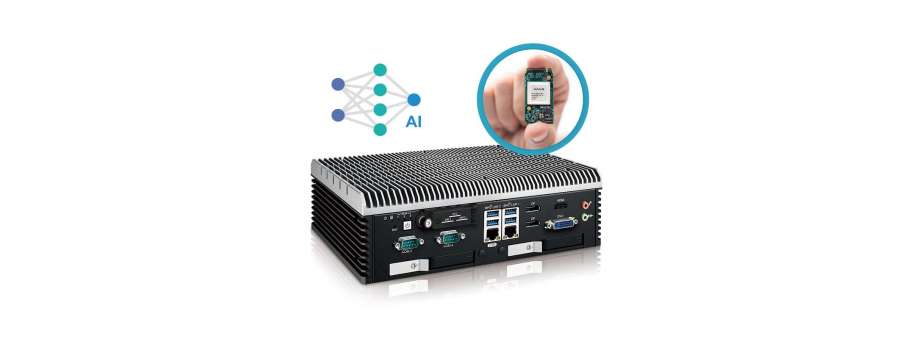

Vecow ECX-3000 AI is powered by the latest Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) that runs with Intel® R680E PCH and features the compact Hailo-8™ AI accelerator module supporting up to 26 TOPS with best-in-class power efficiency of 3 TOPS/W. The ECX-3000 AI provides breakthrough performance and AI inference capabilities at the edge. It supports multiple LAN configurations, including 2.5G, 2.5G PoE+, and GigE LAN and is packed full of interfaces, including 4 COM, 6 USB, 16 Isolated DIO, and 2 SIM card sockets. The high-performance high scalable design makes ECX-3000 AI an excellent AIoT solution for Traffic Vision, Real-time AOI, In-vehicle Computing, Public Security, Factory Automation, Intelligent Transportation, Deep Learning and any Edge AI applications.
- Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Intel® UHD Graphics 770 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance
- Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W
- 5 Independent 2.5G LAN with 4 IEEE 802.3at PoE+
- 4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2
- DC 9V to 50V Power Input, Software Ignition Control
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Additional information
System |
|
| Processor |
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh) - 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) - 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
| Chipset | Intel® R680E Chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 3200MHz SO-DIMM, up to 64GB |
| OS | Windows 11, Windows 10, Linux |
AI Accelerator |
|
| Processor | Hailo-8™ AI Processor, up to 26 TOPS |
| Framework | TensorFlow, ONNX |
I/O Interface |
|
| Serial | Up to 4 COM RS-232/422/485 |
| USB | 6 USB 3.2 Gen 2 |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Sockets |
| RTC Battery | Front-access RTC Battery |
Expansion |
|
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA |
| M.2 |
- 1 M.2 Key B Socket (3042/3052, SATA/USB 3, USB 2) - 1 M.2 Key E Socket (2230, PCIe x2/USB) |
| SUMIT A, B | 2 SUMIT Slot (Optional) |
Graphics |
|
| Graphics Processor | Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture |
| Interface |
4 independent displays : - 1 DVI-I : Up to 1920 x 1080 @60Hz - 1 HDMI : Up to 1920×1080 @ 60Hz |
Storage |
|
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 2 Front-access 2.5" SSD/HDD Tray - 4 Front-access M.2 Key M SSD Tray (ECX-3000 PoES AI) |
Audio |
|
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN supports iAMT |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
2.5G PoE |
|
| LAN 3 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 4 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 5 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 6 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
Power |
|
| Power Input | DC 9V to 50V |
| Power Interface |
- 3-pin Terminal Block : V+, V-, Frame Ground - 4-pin Mini-DIN |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
Others |
|
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechanical |
|
| Dimension | 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11") |
| Weight | 3.8 kg (8.38 lb) |
| Mounting |
- Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional) |
Environment |
|
| Operating Temperature |
35W TDP CPU : -40°C to 65°C (-40°F to 149°F), Fanless 65W TDP CPU : -40°C to 45°C (-40°F to 113°F), Fanless ECX-3000-PoES AI : -40°C to 45°C (-40°F to 113°F), Fanless |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @65°C |
| Shock |
- IEC 60068-2-27 - SSD : 50G @wallmount, Half-sine, 11ms |
| Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
