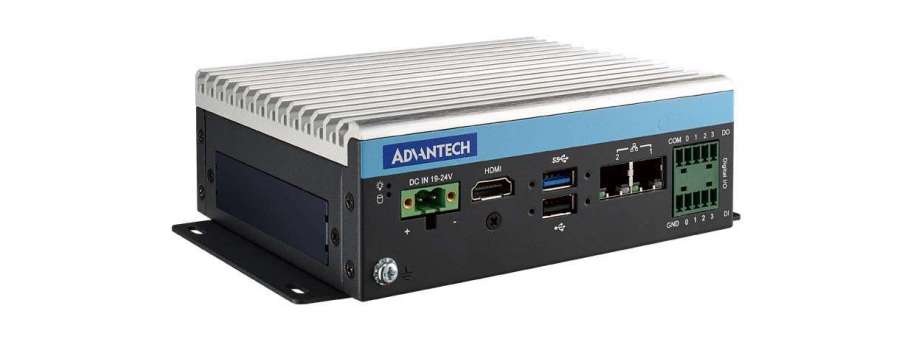

AI Inference PC Advantech MIC-710AIT

AI Inference System Based on NVIDIA® Jetson™ TX2 NX with 2 x 10/100/1000 Mbps Advantech MIC-710AIT

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
MIC-710AIT-00A1	Система штучного інтелекту Advantech MIC-710AIT на базі NVIDIA Jetson TX2NX AI Inference System	53 153,2

• Fanless compact design
• Embedded with NVIDIA® Jetson™ TX2 NX up to 1.33 TOPS
• Supports 2 x GbE, 1 x USB 3.0 , 1 x USB 2.0
• Supports 1 x mPCIe, 1 x M.2 2280 (SATA interface)
• Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices

Additional information

Processor System	Jetson TX2 NX
CPU	Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex
GPU	256-core NVIDIA Pascal GPU
Memory	4GB LPDDR4
Flash	16G of eMMC
I/O
Ethernet	2 x 10/100/1000 Mbps
Display	HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB	Internal: 1 x USB 2.0 External: 1 x USB 2.0, 1 x USB 3.0
DI/DO	4-ch DI, 4-ch DO
COM	Internal: 1 x RS-232 pin header External: 1 x RS-232/RS-422/RS-485
OTG USB	1 x Micro USB (Internal)
Expansion
Mini PCIe	1 x mPCIe (Signal: PCIe + USB)
SIM	1 x Nano SIM slot
iDoor (Optional)	1 x iDoor bracket reserved
Storage
Storage	1 x Micro SD slot 1 x M.2 2280 (M-Key, signal: SATA3) 1 x SATA3 connector
Power
Type	Terminal block, 2-pin, AT
Input Voltage	19-24 VDC, 1.5A-1.18A
Environment
Operating temperature	MODE 3 15W 6CORES: -10 ~ +60 °C with 0.7 m/s airflow
Operating humidity	95% @ 40 °C; 104 °F (non-condensing)
Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock	10G / 11 ms
Mechanical Specifications
Dimensions (W x D x H)	147 x 118 x 52 mm (5.7" x 4.6" x 2")
Weight	1.2 kg (3.5 lb)
Installation	Desktop / DIN-rail
BSP
Jetpack	4.6
Certifications	CE/FCC/BSMI/CCC (No RED certification)
