Industrial IP69K Panel PC SPC-515

15" XGA TFT LED LCD Industrial Multi-Touch Panel PC SPC-515 with Stainless Steel Housing and IP69K Rating

Industrial Computer >> Allround protected PC

Manufacturer: Advantech Co., Ltd.

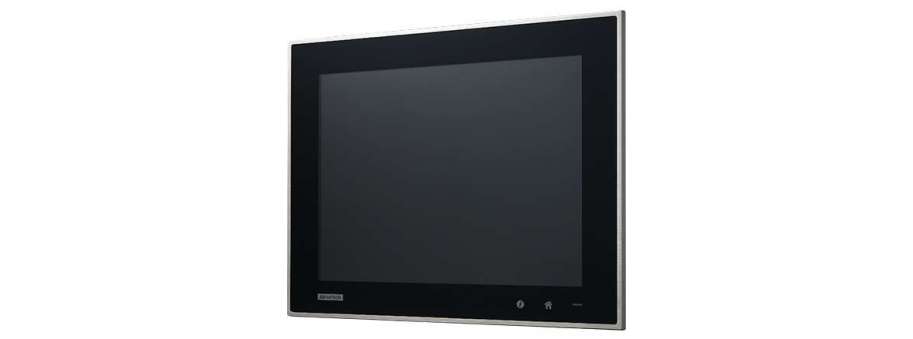

The SPC-515 is a 15” multi-touch panel PC with a fully sealed, IP69k-rated 304L stainless steel housing, making it suitable for the food & beverage and pharmaceutical industries.

  • All-around IP69K rating protects against dust and water
  • 304L stainless steel housing
  • 6th generation Intel® Core™ i3/i5/i7 processor
  • Touchscreen equipped with shatter protection film
  • PCAP multi-touch control
  • Built-in function and home keys for intuitive operation
  • Fanless cooling system
  • Airflow valve design reduces condensation caused by temperature changes

New SPC-500 Series of Rugged HMIs for Strict Hygiene Requirements

Additional information

Part Number SPC-515-633AE

Environment


Humidity 10 ~ 95% RH @ 40° C, non-condensing
Operating Temperature 0 ~ 50° C (32 ~ 122° F)
Storage Temperature -20 ~ 60° C (-4 ~ 140° F)
Vibration Protection With SSD: 3 Grms (5 ~ 500 Hz) (operating, random vibration)

General


BIOS AMI UEFI
Certifications IP69k, CE, FCC Class A, UL, CCC, BSMI
Cooling System Fanless design
Dimensions (W x H x D) 555 x 346.5 x 81 (21.85" x 13.64" x 3.19")
Enclosure Front: 304L Stainless steel ;Back: 304L Stainless steel
Mounting VESA
OS Support Windows Embedded 10 (64 bit)
Power Consumption 60W(Typical)
Power Input 21~27 VDC
Weight 15.8 kg

LCD Display


Display Size 15”
Display Type XGA TFT LED LCD
Luminance (cd/m2) 300
Max. Colors 16.7 M
Max. Resolution 1024 x 768
Viewing Angle (H/V°) 176/176

System Hardware


CPU Intel® Core i3-6100U
Expansion Slots 2 x Full-size mPCIe

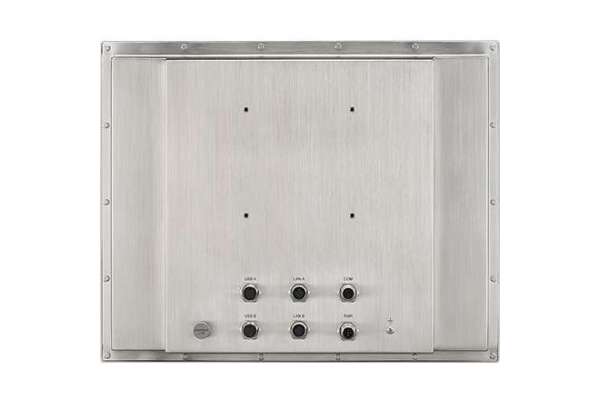

I/O RS-232 x1 (connection:M12 A-coded, 8-pin male), USB 2.0 x1 (connection:M12 A-coded, 8-pin female), 24 VDC power input (connection:M12 A-coded, 5-pin male)
LAN 2 x 10/100/1000 BASE-T (M12 connector, A-coding, 8-pin female)
Memory 4 GB DDR3L SO-DIMM, up to 8GB

Touchscreen


Light Transmission 90% ± 3%
Resolution 4096 x 4096 dot
Type Projected capacitive
Treatment Anti-glare film (shatter protection)
