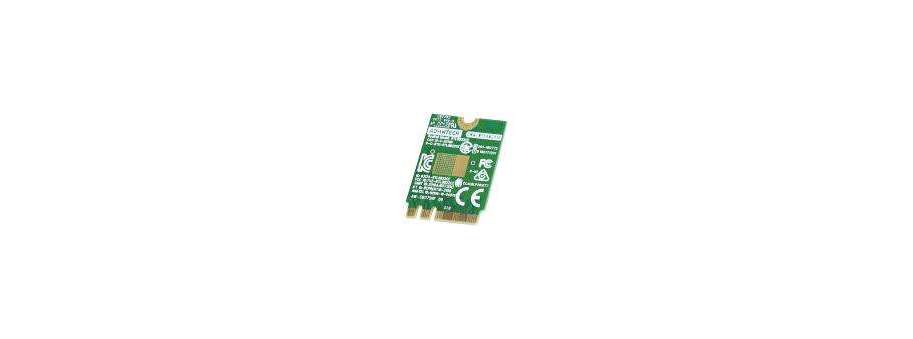

802.11 ac/a/b/g/n + Bluetooth 5.0 2T2R M.2 2230 (A-E Key) Card Advantech EWM-W159

  • IEEE 802.11 ac/a/b/g/n + Bluetooth 5.0 HS standard
  • Support 802.11ac 2x2,Wave-2 compliant with MU-MIMO
  • IEEE 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services
  • Operating temperature: 0 ~ +70 °C

Additional information

Specifications

Main Chipset RTL 8822CE-CG
Tx/Rx 2Tx/ 2Rx (2 IPEX MHF4 connector Receptacle)
Standard Conformance 802.11 ac/a/b/g/n+BT5.0
Form Factor M.2 2230, A-E Key card
Interface WIFI: PCI-E, Bluetooth: USB
Operation Voltage DC 3.0 ~ 3.3V
Security WPA/WPA2 (Wi-Fi Protected Access) / WAPI / WEP 64-bit and 128-bit encryption with H/W TKIP processing / AES-CCMP hardware implementation as part of 802.11i security standard
O.S Supported Windows 10
Temperature Ranges Operating Temperature: 0 ~ +70°C
Dimensions (L x W x H) 22 x 30 x 2.2 mm
