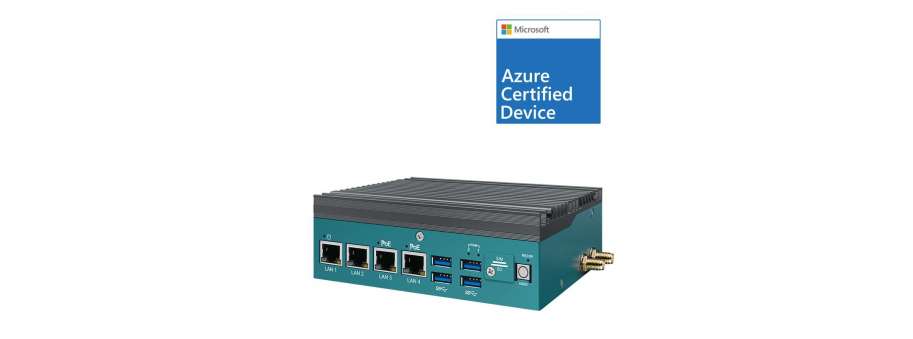

Сompact AI computing system powered by NVIDIA® Jetson Xavier™ NX Vecow EAC-2000

Manufacturer: Vecow
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
EAC-2000 Промисловий компактний AI комп'ютер Vecow NVIDIA® Jetson Xavier™ NX Edge AI Computing System, LPDDR4 8GB RAM and 16GB eMMC5.1, 4 GigE LAN with 2 PoE+, 4 USB 3.1, 2 COM RS-232/485, 1 Nano SIM, High Performance, Rugged, -20°C to 70°C Extended Temperature  111 500,0

EAC-2000is a compact AI computing system powered by NVIDIA® Jetson Xavier™ NX, delivering a powerful computing performance with up to 21 TOPS. Featuring advanced NVIDIA Volta™ GPU with 384 NVIDA® CUDA® Core and 48 Tensor Cores, Vecow EAC-2000/2100 helps to accelerate the implementation of AI applications at the edge. Equipped with Fakra-Z connectors and support for an extended operating temperature range of -20°C to 70°C, Vecow EAC-2000/2100 is ideal to meet the requirements of automotive applications and any AIoT applications.

  • Small form factor NVIDIA® Jetson Xavier™ NX supports up to 21 TOPS AI performance
  • Advanced NVIDIA Volta™ architecture with 384 NVIDIA® CUDA® cores and 48 Tensor cores
  • Fanless -20°C to 70°C operation
  • 4 GigE LAN with 2 PoE+, 4 USB 3.1, 1 Digital Display
  • M.2 for 5G/4G/LTE/WiFi/BT/GPRS/UMTS
  • Storage : M.2 PCIe NVMe SSD, External Micro SD
  • DC 9V to 50V wide range power input
  • Tested to MIL-STD-810G for shock and vibration
  • Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Additional information

System
CPU 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
DL Accelerator 2x NVDLA Engines
Memory 1 LPDDR4x DRAM, 8GB
OS Linux Ubuntu 18.04 with JetPack

I/O Interface
USB 4 USB 3.1 Type A
Serial 2 COM RS-232/485
Micro USB
  • 1 Micro USB console debug port
  • 1 Micro USB OS flash port
Button
  • 1 User-Define Button
  • 1 Force Recovery Button
LED 2 PoE, 2 User Programming
SIM 1 Nano SIM Card Socket
Antenna 6 Antenna for 5G/WiFi/4G/LTE/GPRS/UMTS

Expansion
M.2
  • 1 M.2 Key B Socket (3042/3052, PCIe/USB3)
  • 1 M.2 Key E Socket (2230, PCIe/USB)

Graphics
Interface 1 Digital Display, up to 3840 x 2160 @60Hz
Video Encode
  • HEVC : Up to 2x2160p @60, 4x2160p @30, 10x1080p @60, 22x1080p @30
  • H.264 : Up to 2x2160p @60, 4x2160p @30, 10x1080p @60, 20x1080p @30
Video Decode
  • HEVC : Up to 2x4320p @30, 6x2160p @60, 12x2160p @30, 22x1080p @60, 44x1080p @30
  • H.264 : Up to 2x2160p @60, 6x2160p @30, 10x1080p @60, 22x1080p @30

Storage
M.2 1 M.2 Key M Socket (2280, PCIe x1)
eMMC 1 eMMC 5.1, 16GB
SD 1 Micro SD (External)

Ethernet

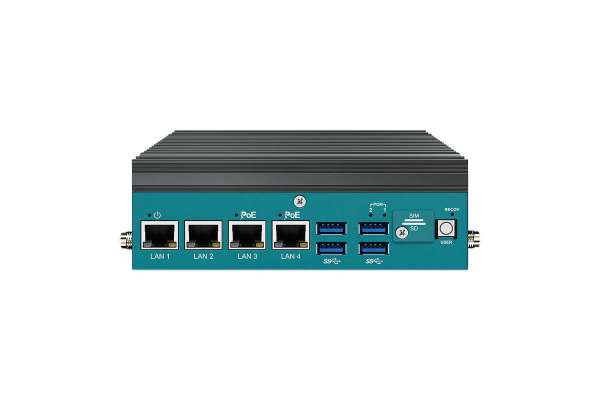

LAN 1 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector
LAN 2 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector

PoE
LAN 3 IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector
LAN 4 IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector

Power
Power Input DC 9V to 50V

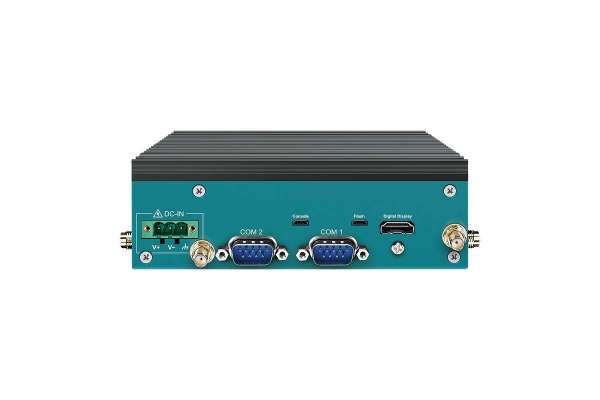

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Mechanical
Dimensions 150.4mm x 106.2mm x 50.0mm (5.92" x 4.18" x 1.97")
Weight 1.2 kg (2.6 lb)
Mounting
  • Wallmount by mounting bracket
  • DIN Rail Mount (Optional)

Environment
Operating Temp.
  • 15W TDP : -20°C to 65°C
  • 10W TDP : -20°C to 70°C
Storage Temp. -40°C to 85°C
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @70°C
Shock Operating, MIL-STD-810G, Method 516.7, Procedure I
Vibration Operating, MIL-STD-810G, Method 514.7, Procedure I, Category 4
EMC CE, FCC, EN50155, EN50121-3-2
