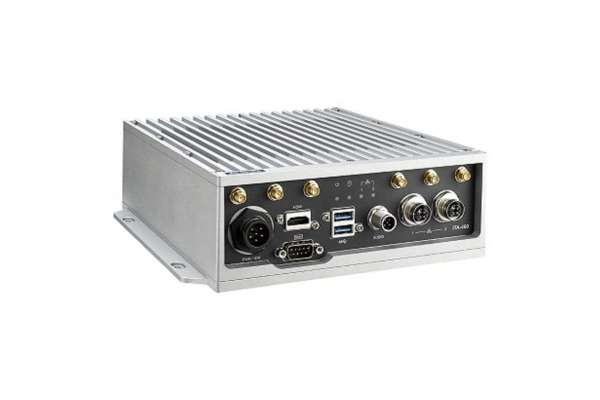

Fanless In-vehicle PC Advantech ITA-460

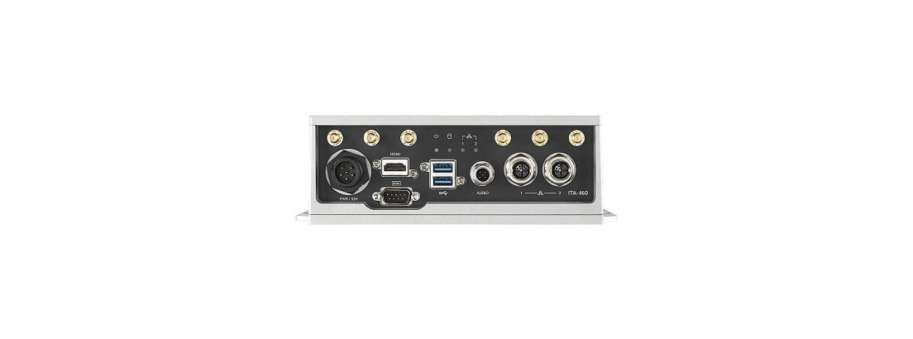

Water-resistant Fanless In-vehicle Computer with Intel® 8th/9th Gen Core™ i CPU Advantech ITA-460

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
ITA-460-L0A1	Assy ITA-460, 8GB RAM, DC-IN9-32V, Barebone	124 066,0

ITA-460 is an AI in-vehicle platform with visual recognition, can easily fit into limited spaces inside vehicles. ITA-460 provides an intelligent in-vehicle solution for smart transportation, agriculture, and heavy industry.

• Intel® 8th/9th Gen Core™ i CPU (LGA1151)
• 8GB memory on board, 1 x SO-DIMM
• Supports 2 x Gigabit Ethernet, 2 x USB3.0/3.1
• Supports 2 x COM (RS232/422/485)
• Supports 1 x mSATA, 2 x 2.5" HDD/SSD
• Supports 3 x mini PCIe expansion sockets for integrating Wi-Fi, LTE, and GPS wireless communication modules through resereved 6 SMA connectors
• Supports 12/24VDC vehicle power
• All-around IP65 rating for protection from water and dust ingress
• Wide operating temperature (-25 ~ 60 °C / -13 ~ 140 °F)
• No RED Certificate

8th/9th Generation Processor (TDP 35W)
CPU	I7-9700TE	I5-9500TE	I3-9100TE	i7-8700T	i5-8500T
Core/Thread Number	8/8	6/6	4/4	6/12	6/6
Base Frequency	1.8GHz	2.2GHz	2.2GHz	2.4 GHz	2.1 GHz
Max Turbo Frequency	3.8GHz	3.6GHz	3.2GHz	4.0 GHz	3.5 GHz
L3 Cache	12MB	9MB	6MB	12MB	9MB
Chipset	H310	H310	H310	H310	H310
BIOS	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash
8th/9th Generation Processor (TDP 65W)
CPU	I7-9700E	I5-9500E	I3-9100E	i7-8700	i5-8500	i3-8100	G5400	G4900
Core/Thread Number	8/8	6/6	4/4	6/12	6/6	4/4	2/4	2/2
Base Frequency	2.6GHz	3.0GHz	3.1GHz	3.2GHZ	3.0GHz	3.6GHz	3.7GHz	2.9GHz
Max Turbo Frequency	4.4GHz	4.2GHz	3.7GHz	4.6GHz	4.1GHz
L3 Cache	12MB	8MB	6MB	12MB	9MB	6MB	4MB	2MB
Chipset	H310	H310	H310	H310	H310	H310	H310	H310
Temperature	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)	-10 ~ 40 °C (with Industrial SSD, 0.7 m/s air flow)
BIOS	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash	AMI 256Mb SPI Flash

Additional information

Memory
Technology	Dual-channel DDR4 2400 MHz (without ECC)
Solder-down	8GB on board (optional 16GB on board)
Socket	1 x 260-pin DDR4 SO-DIMM (up to 16GB per socket)
Maximum Capacity	16GB (optional 32GB)
Display
Chipset	H310: Intel® HD Graphics 610, supports DirectX 12
HDMI	1X HDMI (HDMI1.4b: up to 4096 x 2160@30Hz)
Ethernet
Controller	Intel® i210IT
Interface	2 x Gigabit Ethernet with M12 X-Coded
Storage
SATA	2 x maximum 9 mm 2.5" HDD/SSD
mSATA	1 x mSATA slot on board
I/O
USB	2 x USB3.0/3.1
Serial Port	DB9 x 1 (2 x RS-232/422/485 support sw programmable)
Audio	M12 A-Coded x 1 (1 x line out and 1 x mic in)
Expansion
Mini PCIe	H310: 3 x mini PCIe (PCIe Gen3 x 1, USB 2.0 with 1 SIM slot)
LED
LED	4 (1 x power,1 x storage, and 2 x LAN )
Power
Type	AT/ATX
Input Voltage	8 ~ 32 VDC (9.6 ~ 28.8VDC full loading)
Power consumption	Typical: 33W, maximum: 95W
Watchdog Timer
Output	System reset
Interva	Programmable 1 ~ 255 sec/min
Environment
Operating Temperature	35W CPU w/ industrial SSD -25 ~ 60 °C / -13 ~ 140 °F with 0.7 m/s air flow
Storage Temperature	-40 ~ 85 °C
Humidity	95% @ 40 °C (non-condensing)
Vibration	MIL-STD-810G, IEC 60721-3-5 Class 5M3 (Maximum: 5G, 8 hours, per axis)
Shock	MIL-STD-810G (75G 11 ms), IEC-60721-3-5 Class 5M3 (Opreating: 100G 6ms)
Mechanical
Dimensions (W x H x D)	190 x 70 x 220 mm (7.48" x 2.76" x 8.66")
Weight	4kg (8.82lbs)
Installation	Desktop/wall mount
IP	IP65 protection from water and dust ingress (IP-67 optional)
Certifications
EMC	CE/FCC Class B, BSMI
Safety	CB/UL 62368, CCC, Emark, ISO 7637-2, BSMI
OS Support	Windows 10, Linux Ubuntu 20.04 (Canoical Ubuntu certified and provide the Ubuntu support for 5 years)
