2xLAN 4xLAN All-Round Extended T range HDMI Input 12V DC Input 24V DC IP67 LAN Passive Cooling POE ports

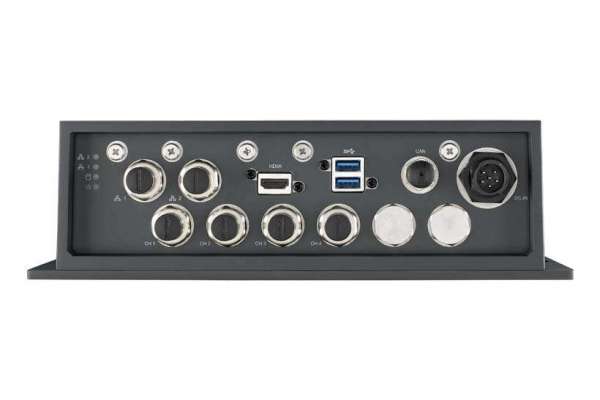

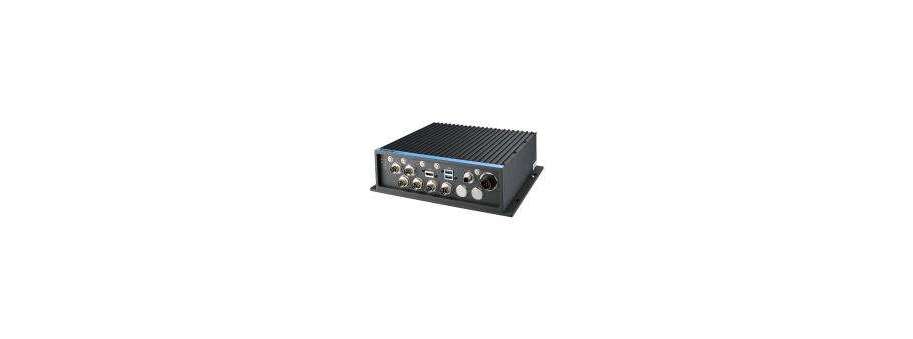

AI Inference System Based on NVIDIA® Jetson™ Xavier NX MIC-715

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-715-NXA1 NVIDIA Jetson Xavier NX Ruggedized AI System  153 903,0
  • All-around IP67 waterproof with compact fanless design
  • NVIDIA® Jetson™ Xavier NX embedded
  • Support 4 x PoE with IEEE 802.3af compliance
  • Linux OS with board support package (BSP)
  • Supports deep learning trained models
  • Wide operating temperature range
  • Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Additional information

Processor System

CPU ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3 x dual-core CPU clusters (six NVIDIA Carmel processor cores) (Max. Operating Frequency: 1.9 GHz)
GPU 384 CUDA Core, 48 Tensor Cores, Performance up to 21 TOPS (INT8) Max. operating frequency: 1100 MHz
Memory 8 GB 128-bit LPDDR4x DRAM
Flash 16G of eMMC

Ethernet

Interface M12 X-coded, 8-pin female
Controller Intel® I210
Speed 6 x Gigabit Ethernet (10/100/1000 Mbps), support 4 x PoE ports, IEEE 802.3af compliant

I/O

Display HDMI (Max. resolution 3840 x 2160 @ 60Hz)
USB External 2 x USB 3.0 (waterproof connector)
OTG USB (Internal) 1 x Micro USB
Serial Ports 2 x CAN (Interface: M12 A-coded, 5-pin male)

Expansion

MiniPCIe 2 x Full size MiniPCIe with one SIM slot support
M.2 1 x M.2 3052 B key (5G)

Storage

M.2 1 x M.2 2280 M Key (NVMe, PCIex1)
SD Card 1 x MicroSD slot

Power

Power Supply Power adaptor: 12/24 VDC (12A-6A)
Power Type M16, 6-pin male
LED
LED Indicator 1 x Power, 1 x Storage, 2 x LAN

Environment

Operational Temperature -25 ~ 60 °C with 0.7 m/s air flow (Max-P ARM mode)
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Mechanical

Dimensions (W x D x H) 275 x 220 x 80 mm (10.8 x 8.7 x 3.2")
Weight 4.5 kg
Installation Desktop

Operating System

Linux Ubuntu 18.04 with JetPack
Certifications CB/UL/CE/FCC/CCC (No RED certification)
