Compact 2U rack-mount industrial server with 2 Intel Xeon E5-2600V3 processors, 7 expansion slots Advantech HPC-7242

Price and avalability

Partnumber Description Price VAT incl Avalability
HPC-7242-BTO3/ASMB-815T2/RPS500W/3647P/96G/2SATAx2Tb Промисловий сервер в корпусі 2U Advantech, процесор Intel Xeon XEON 2.1G 33M 3647P 24C 8160T, відмовостійке ДЖ 500 Вт, оперативна пам'ять 96G RAM, 2SATAx2Tb, 5 PCIe x8 or 2 PCIe x16 and 1 PCIe x8, 8 SATA3.0, 6 USB3.0, Dual 10GbE, IPMI  217 997,0
HPC-7242-BTO3/ASMB-815T2/500W/3647P/96G/2SATAx2Tb Промисловий сервер в корпусі 2U Advantech, процесор Intel Xeon XEON 2.1G 33M 3647P 24C 8160T, ДЖ 500 Вт, оперативна пам'ять 96G RAM, 2SATAx2Tb, 5 PCIe x8 or 2 PCIe x16 and 1 PCIe x8, 8 SATA3.0, 6 USB3.0, Dual 10GbE, IPMI  217 997,0

Compact industrial server with 2 processors in a 2U rack-mount chassis on Intel Xeon E5-2600V3.

Compact high-performance solution for installation in a 19 " 600 mm deep locker.

24 cores when using 2 Intel Xeon E5-2680 V3 processors with 30MB cache and a frequency of 2.5 GHz. Maximum flexibility in configuration for user requirements. Support for long-term projects through the use of embedded components - Intel Xeon processors and the C612 system controller.

Features

  • 2 LGA 2011-R3 sockets for installing 3rd generation Xeon Intel E5-2600 processors
  • 6 slots for installing 192 GB of high-performance DDR-4 memory with error correction
  • 9 internal 6Gb / s SATA3 ports for connecting high-speed solid-state drives and high-capacity hard drives, including 4 ports with RAID 0/1/10/5 support
  • 4 power supplies to choose from - dual fail-safe 700 W and 500 W for maximum reliability and single 350 and 500 W for cost-effective solutions.

Design

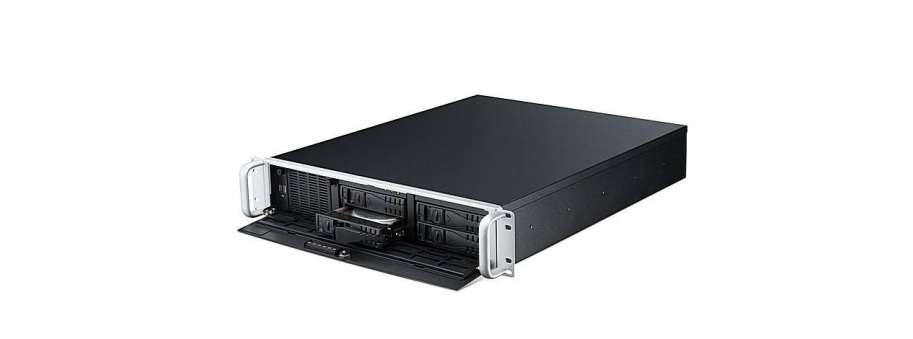

  • Compact rack-mounted enclosure 2U high and 523 mm deep
  • 4 universal bays for installing 3.5 " or 2.5 " drives with hot swapping, 2 internal bays for 2.5 " drives.
  • 3 horizontal expansion slots for installing full-size cards - 2 PCI-E x8 and 1 PCI slots
  • 7 vertical low-profile expansion slots on the board - 4 PCI-E x16 slots, 2 PCI-E x8 slots and 1 PCI-E x4
  • Front cover with dust filter
  • Advanced LED indication and audible alarm for easy maintenance and troubleshooting
  • 2 front USB 3.0 ports

Operating temperature and vibration

  • Operating temperature 0 ° - 40 ° C
  • Vibration (5 ~ 500 Hz) 1 Grms
  • Shock 10 G (duration 11 ms, half-wave sine wave)
