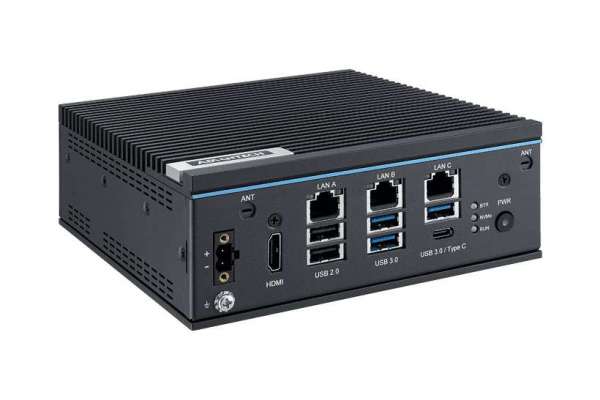

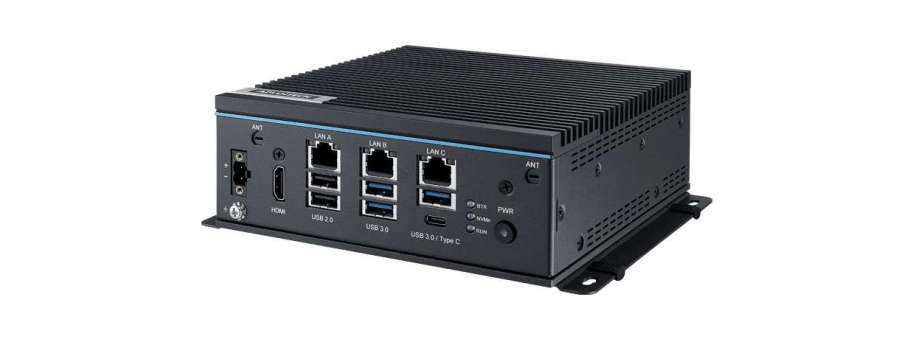

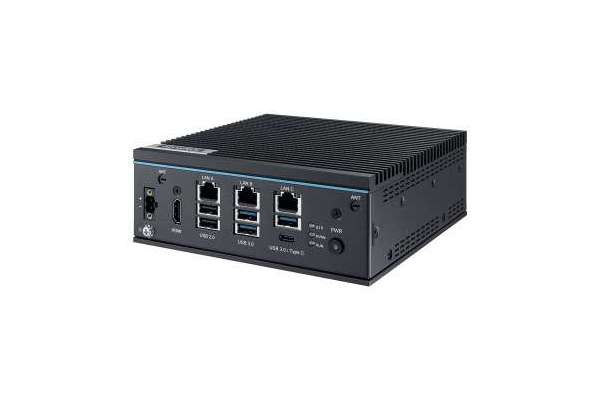

Edge AI Compact Box PC with Intel® Core™ Ultra Processor Advantech UNO-258

Manufacturer: Advantech
Facebook Twitter Linkedin Mail
  • Intel® Core™ Ultra series 3 processors (Panther Lake H) with 25W and 45W TDP support
  • Integrated AI acceleration providing up to 180 TOPS total AI performance (120 GPU + 50 NPU + 10 CPU)
  • Xe3 GPU architecture providing up to 2× the graphics performance compared to Arrow Lake-H
  • Dual-channel DDR5 SO-DIMM memory supporting up to 128GB (64GB per channel)
  • M.2 E-Key, B-Key, M-Key (supports NVMe) expansion for storage, LTE/5G, and Wi-Fi
  • Built-in 1000Mbps & 2500Mbps LAN ports with TCC and TSN support
  • Modular I/O board design offering dual LAN or isolated DIO/CANBUS/COM

Additional information

General
Certification CE, FCC Class A, UL, CCC, BSMI
Dimensions (W x D x H) 160 x 160 x 60 mm (6.30 x 6.30 x 2.36 in)
Form Factor Compact Box PC
Enclosure Aluminum housing
Mount Options Stand, Wall mount, VESA (Optional), DIN-rail (Optional).
Weight (Net) 2.5kg (5.5lb)
Power Requirement 12-24VDC
Power Consumption LAN: 55W; Iso: TBD
OS Support Windows 11 LTSC, Ubuntu 24.04

System Hardware
BIOS AMI EFI (256 Mbit)
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
TPM TPM 2.0
Processor
  • Intel® Core™ Ultra 7 358H (16 cores), up to 4.8 GHz
  • Intel® Core™ Ultra 5 325 (8 cores), up to 4.5 GHz
Memory 2 slots for DDR5 7200 (up to 64GB max per slot)
Graphics Engine Intel® ARC Graphics (Xe3)
Ethernet
  • LAN A: Intel® i219-LM, 10/100/1000Mbps
  • LAN B/C: Intel® i226-LM, 10/100/1000/2500Mbps
  • LAN D/E (optional): Intel® i226-LM, 10/100/1000/2500Mbps
LED Indicators Power, Battery, NVMe, Run
Storage 1 x M.2 M-key 2280 (PCIe x4, Gen 4 NVMe)
Expansion
  • 1 x M.2 B-key 3052 (USB 3.2, Gen 2)
  • 1 x M.2 E-key 2230 (PCIe x1/USB2.0)
  • 1 x M.2 M-key 2280 (PCIe x4, Gen 4 NVMe, share with storage)
SIM Slot Yes (1 x Nano size)

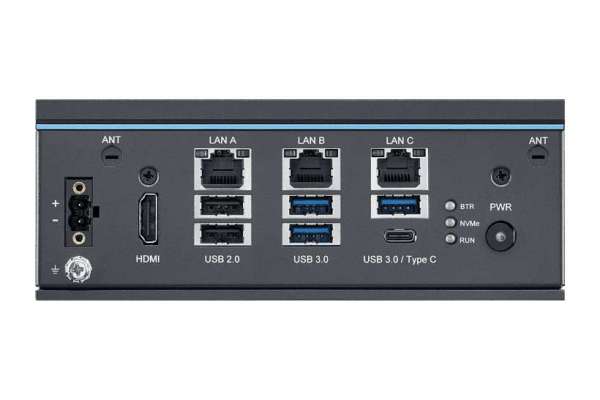

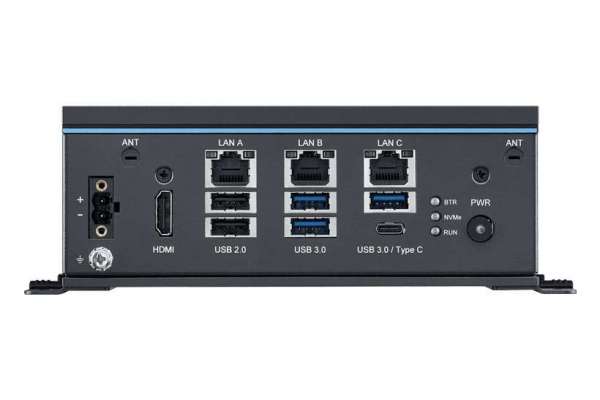

Front I/O
Display 1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
Ethernet
  • LAN A: Intel® i219-LM, 10/100/1000Mbps
  • LAN B/C: Intel® i226-LM, 10/100/1000/2500Mbps
USB 2 x USB 2.0 3 x USB 3.2 (Gen2) 1 x USB Type-C (Supports DisplayPort 1.4a, up to 4096 x 2160 @60Hz)
Power connector
  • 1 x 2-Pin Terminal block
  • 2 x RS-232/422/485 (Optional isolated)
  • 2 x CAN 2.0 (Optional isolated)

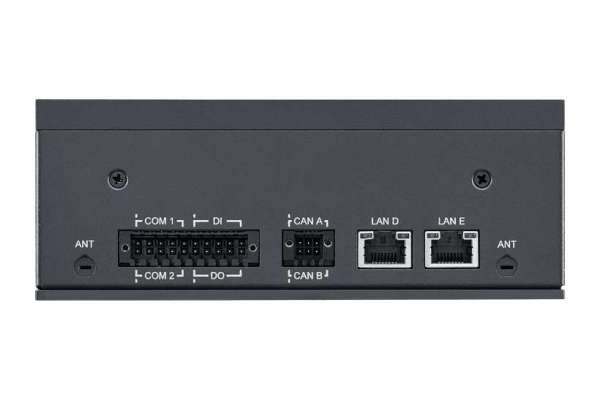

Rear I/O - LAN
Ethernet LAN D/E: Intel® i226-LM, 10/100/1000/2500Mbps
Serial Ports 2 x RS-232/422/485
GPIO GPIO x 8 bit
CANbus 2 x CAN 2.0

Rear I/O – Isolated
Serial Ports 2 x RS-232/422/485 (Isolated)
CANbus 2 x CAN 2.0 (Isolated)
DI/O
  • 4 x Digital input channels with 2500 VDC isolation protection - Wet contact: Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC - Dry contact: Logic 0: Shorted to GND/ Logic 1: Open
  • 4 x Digital output channels - Output voltage: 5 ~ 30 VDC - Output capability sink: 500 mA max./channe

Environment
Operating Temperature -20 ~ 60°C (-4 ~ 140°F) with 0.7 m/s airflow
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Relative Humidity Operating, 95% RH @ 40°C, non-condensing Non-operating, 95%RH @ 60°C, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis
Ingress Protection IP20
