AI Inference System Advantech MIC-720AI based on NVIDIA Jetson® Tegra X2 256 CUDA Cores

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-720AI-00A1 NVIDIA Jetson TX2 AI Inference System  79 727,0

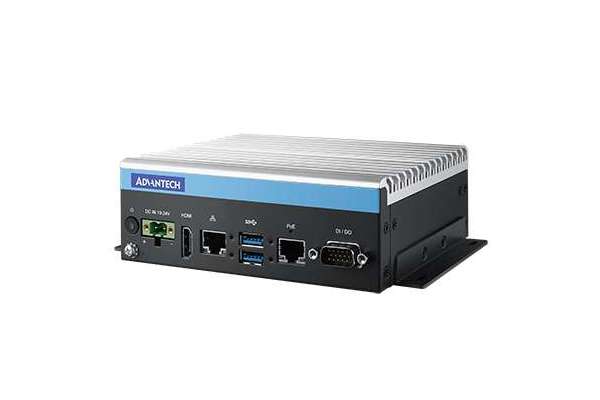

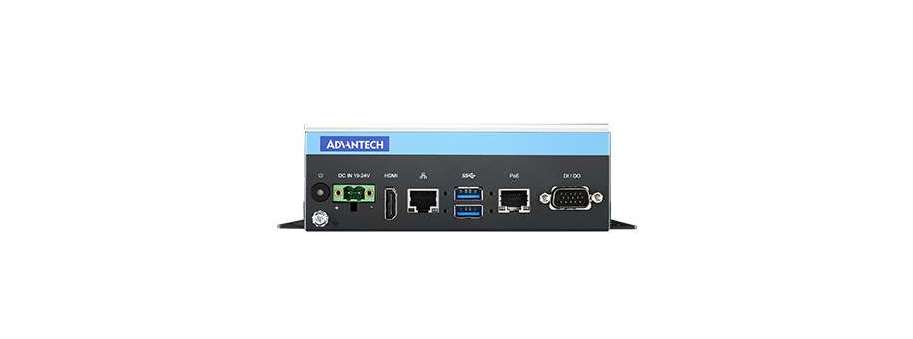

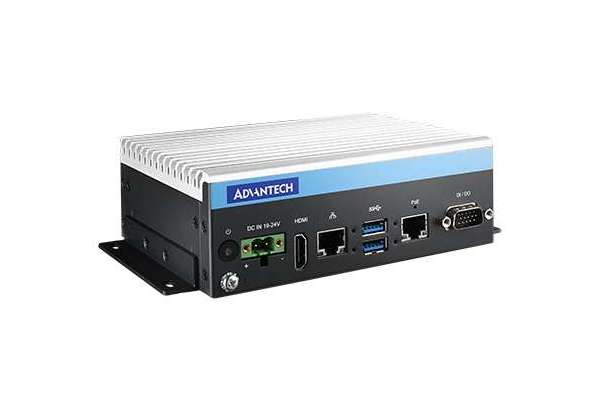

MIC-720AI is the ARM based system which integrated NVIDIA® Jetson™ Tegra X2 System-on-Module processor, providing 256 CUDA® cores on the NVIDIA® Pascal™architecture. It is designed for the edge applications support rich I/O with low power consumption. The system has 4GB LPDDR4 memory, 4K video decode/encode, 2 USB3.0,POE and mSATA expansion. With wall mount brackets and fanless design which can help you easily install in rugged environment. This small embedded system is an ideal system for AI inference edge and deep learning applications.

  • Fanless and compact design
  • Supports NVIDIA Jetson® Tegra X2
  • 2 USB 3.0 ports and 1 internal USB 2.0
  • 1 IEEE 802.3af POE port
  • Linux OS with BSP (board support package)
  • Support deep learning trained models
  • Wide operating temperature

Additional information

Processor System

CPU nVIDIA TX2 Dual Core nVidia Denver2.0 + Quad Core ARM Cortex A57
Memory 8GB LPDDR4
Flash 32G of eMMC

Ethernet

Interface RJ-45
Controller Intel® i210IT
Speed 1 x Gigabit Ethernet (10/100/1000 Mbps)

I/O

Display HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
  • 2 x USB 3.0
  • 1 x USB 2.0 (Internal)
DI/DO 8 bit
Button 1 x Power on/off switch

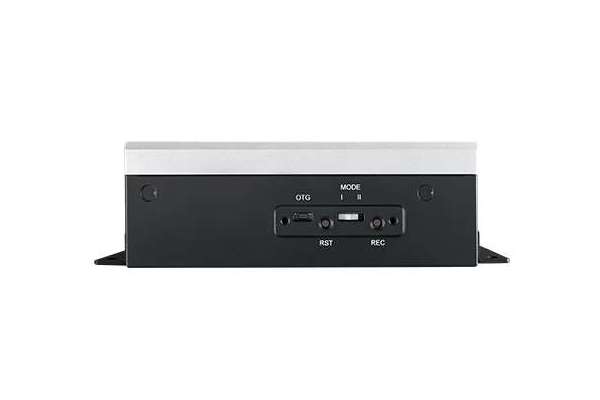

OTG USB
  • 1 x Micro USB
  • Mode I: Enable OTG
  • Mode II: Enable Internal USB

Expansion

Storage 1 x mSATA slot

Camera Interface PoE

Controller MICROSEMI_PD69101ILQ-TR
Compliant IEEE 802.3af
Power Output 15.4W

Power

Power Supply Voltage 19-24V (3A~2A)
Power Type DC Jack

Environment

Operational Temperature -10 ~ 60 °C with 0.7 m/s air flow (Max-P ARM mode)
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Mechanical

Dimensions (W x D x H) 147 x 118 x 52 mm (5.7" x 4.6" x 2.4")
Weight 1.2 kg
Installation Desktop/wall mount

Certifications

CE/FCC/CB/UL/BSMI/CCC (No RED certification)
