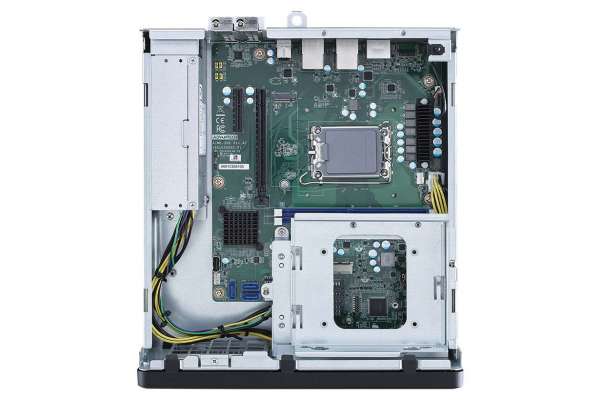

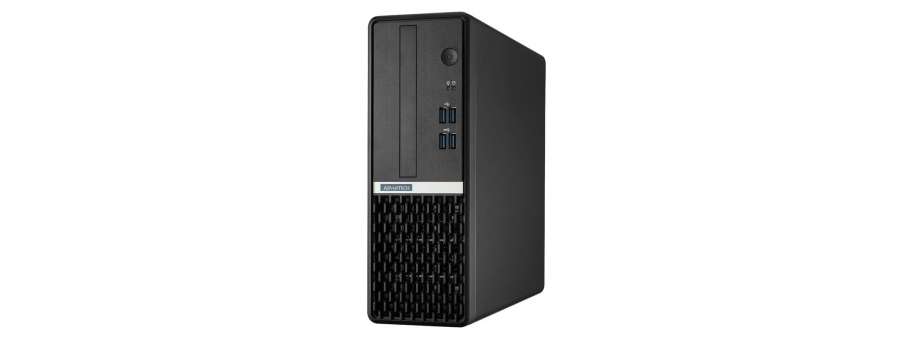

Compact Size Tower IPC with 12th / 13th Gen Intel® Core™ i CPU Socket (LGA 1700) and 250W PSU Advantech IPC-320
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IPC-320-25A | IPC-320 chassis w/250W PSU | 19 562,6 | |
| AIMB-308H-00A1 | LGA1700 Propitiatory H610E/2LAN/HDMI/DP | 20 295,2 |
- Intel® 12th / 13th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H610E chipset
- Design for operator IPC and application with space limit
- Dual USB 3.2 and dual USB 2.0 port on both front and rear side
- Dual Independent Display (HDMI/ DP)
- 2 low profile Expansion slots (PCIe x16 and PCIe x4)
- Built in with 250W 12V and 5V output only single power supply
- Qualified for Amazon Web Service(AWS) IoT Greengrass
13th Generation Processors |
|||||||||||||
| CPU | i9- 13900(E) | i9- 13900TE | i7- 13700(E) | i7- 13700T(E) | i5- 13500(E) | i5- 13500T(E) | i5- 13400(E) | i3- 13100(E) | i3- 13100T(E) | ||||
| P-core Base Frequency (Up to) | 2.0 GHz | 1.1 GHz | 2.1 GHz | 1.4 GHz | 2.5 GHz | 1.6 GHz | 2.5 GHz | 3.4 GHz | 2.5 GHz | ||||
| L3 Cache | 36 MB | 36 MB | 30 MB | 30 MB | 24 MB | 24 MB | 20MB | 12 MB | 12 MB | ||||
| Cores | 24 | 24 | 16 | 16 | 14 | 14 | 10 | 4 | 4 | ||||
| Processor Base Power | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 60 W | 35 W | ||||
12th Generation Processor |
|||||||||||||
| CPU | i9- 12900(E) | i9- 12900TE | i7- 12700(E) | i7- 12700TE | i5- 12500(E) | i5-12400 | i5- 12500TE | i3- 12100(E) | i3- 12100TE | Pentium G7400E | Pentium G7400TE | Celeron G6900E | Celeron G6900TE |
| Base Frequency | 2.4GHz | 2.3GHz | 2.1 GHz | 1.4 GHz | 2.9 GHz | 2.5GHz | 1.9 GHz | 3.2 GHz | 2.1 GHz | 3.6 GHz | 3.0 GHz | 3.0 GHz | 2.4 GHz |
| L3 Cache | 30MB | 30MB | 25MB | 25MB | 18 MB | 18 MB | 18 MB | 12 MB | 12 MB | 6 MB | 6 MB | 4 MB | 4 MB |
| Cores | 16 | 16 | 12 | 12 | 6 | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
| TDP | 65W | 35W | 65W | 35W | 65W | 35W | 35W | 65W | 35W | 46W | 35W | 46W | 35W |
Additional information
| Socket | LGA 1700 |
| Temperature | 0 ~ 40 °C |
| Chipset | H610E |
| BIOS | AMI 256MB SPI Flash |
Expansion slot |
|
| PCIeX4 (Gen 3) | 1 (Max. card length 170 mm) |
| PCIeX16 (Gen 4) | 1 (Max. card length 170 mm) |
Memory |
|
| Technology | Dual Channel (Non-ECC) DDR4 3200 MHz |
| Max Capacity | 64 GB |
| Sockets | 2 x 288-pin DIMM |
Graphics |
|
| Controller | Chipset integrated Intel HD Graphics |
| VRAM | Shares system memory is subjected to OS |
Ethernet |
|
| Interface | 10/100/1000/2.5G Mbps (2.5G for LAN2 only) |
| Controller | GbE LAN1: Intel I219-V; GbE LAN2: Intel I226-V |
| Connector | 2 x RJ-45 |
SATA |
|
| Max. Data Transfer Rate | 600 MB/s |
| Channel | 3 |

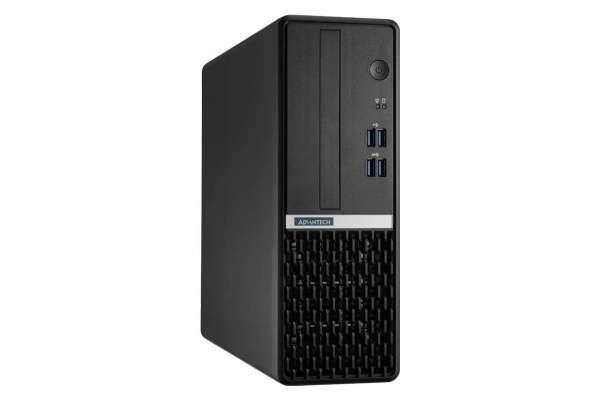

Front Panel I/O and Miscellaneous |
|
| USB | 4 (2 x USB 3.2 Gen1 and 2 x USB 2.0) |
| LED Indicators | PWR, HDD |

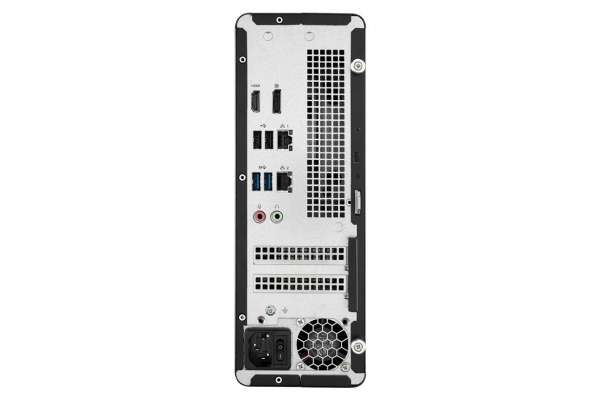

Rear I/O |
|
| HDMI | 1 (Resolution up to 4096 x 2160 @ 60Hz) |
| DP 1.2 | 1 (Resolution up to 4096 x 2304 @ 60Hz) |
| Ethernet | 2 |
| USB | 4 (2 x USB 3.2 Gen 1, 2 x USB 2.0) |
| Audio | 2 (Line-out , Mic-in ) |
Internal connectors |
|
| USB type A | 1 |
| SATA | 3 |
| M.2 | M key(link x2) |
Drive bay |
|
| Slim Optical Drive | 1 |
| 3.5" | 1 (For single 2.5" or 3.5" HDD/SSD, no need 989K008734 bracket) (For dual T: 9.6mm 2.5" HDD/SSD, order 989K008734 bracket) |
Cooling |
|
| Fan | NA (Optional as 98R) |
| Air filter | NA (Optional as 98R) |
Environment |
|
| Temperature |
|
| Humidity |
|
| Vibration (5-500Hz) |
|
| Shock | Operating: 10G (with 11ms duration, hal sine wave) |
System security monitoring |
|
Physical Characteristics |
|
| Dimension (W x H x D) | 95 x 270 x 300 mm (3.74 x 10.63 x 11.81 inch) |
| Weight | 3.306 kg (7.289 lb) |
| EMC Emission Class | EMI class B |
