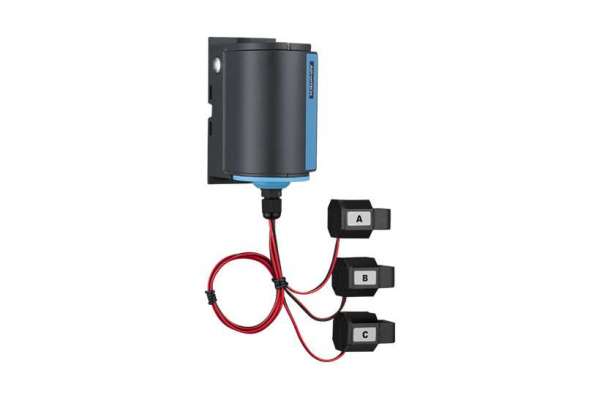

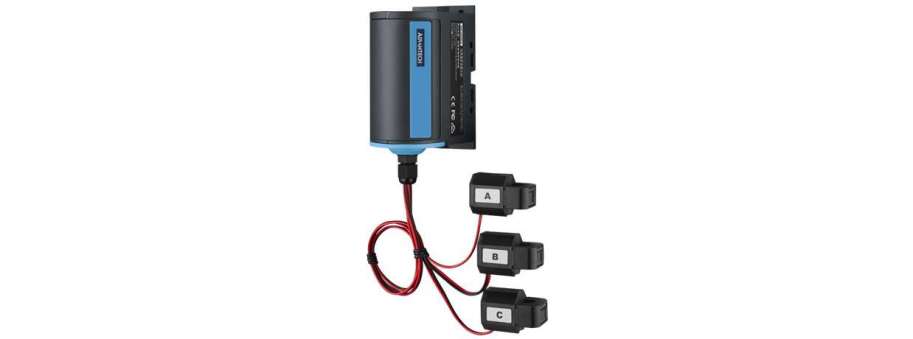

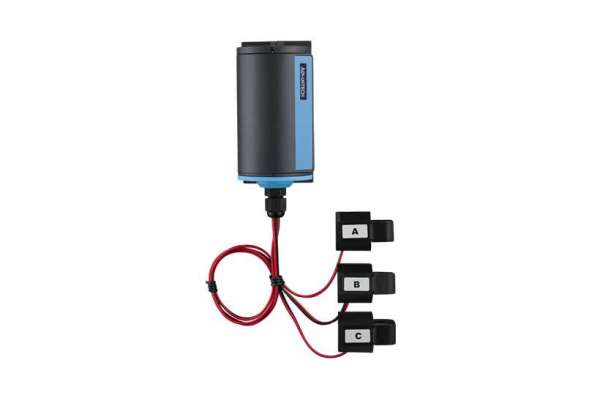

LoRaWAN 3-Phase Current Meter with 3 x 75A Clamp-On CT Advantech EVA-2210
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EVA-2210-NA | LoRaWAN 3-Phase Current Meter@75A NA915 | 13 281,8 | |
| EVA-2210-EA | LoRaWAN 3-Phase Current Meter@75A EU868 | 13 281,8 | |
| EVA-2210-TA | LoRaWAN 3-Phase Current Meter@75A AS923 | 13 281,8 | |
| EVA-2210-ZA | LoRaWAN 3-Phase Current Meter@75A AU915 | 13 281,8 |
EVA-2210 is capable to measure equipment current at different kinds of application, such like pumps, fan motors, compressors, computers, servers, etc.With it’s wide range, high penastration rate LoRa connectivity, the data transmission range can up till hundred or thousand meters away. EVA-2210 can be installed directly on the walls, metal box or poles. EVA-2310 is powered by 2 AA 3.6v Li-ion batteries, battery life can up till 3.5 years basing on certain condition
- LoRaWAN wireless connectivity
- 3 x 75A Clamp-On CT
- Battery life up till 3.5 years@25 °C, 60mins interval setting
- Easy to deploy and maintain
Additional information
Wireless Communication |
|
| Frequency Band | EU 863-870 (MHz) / US 902-928 (MHz) / AU 915-928 (MHz) / AS 919-924 (MHz) |
| Spreading Factor | 7~12 |
| Transmit Power | Up to 20dBm |
| Topology | Star (LoRa/LoRaWAN) |
| Sensitivity | -148dB |
General |
|
| Power Input | 3.6V AA Battery *2pcs (Not included) |
| Battery Life | 3.5 years@25 °C, 60mins interval setting |
| LED Indicator | Power on, TX, reset to default |
| Configuration Interface | Wireless downlink commands |
| IP Class | IP30 |
| Mounting | Wall, Magnetic, Pole |
| Dimension (H x W x D) | 112 x 51 x 71.5 mm |
| Certification | CE (RED), FCC, TELEC, RCM, NCC |
Environment |
|
| Operating Temperature | -20°C to 55 °C |
| Operating Humidity | 0% ~ 90% RH |
| Storage Temperature | -40°C ~ 85°C |
| Storage Humidity | 0% ~ 90% RH |
Clamp-On CT |
|
| Measurement Range | 100mA to 75A |
| Ratio | 3000:1 |
| Operating Temperature | -40°C ~ 85°C |
| Accuracy | <±1% (300mA to 75A) |
| Sample rate | 8kHz |
| Detection period | 3 seconds |
