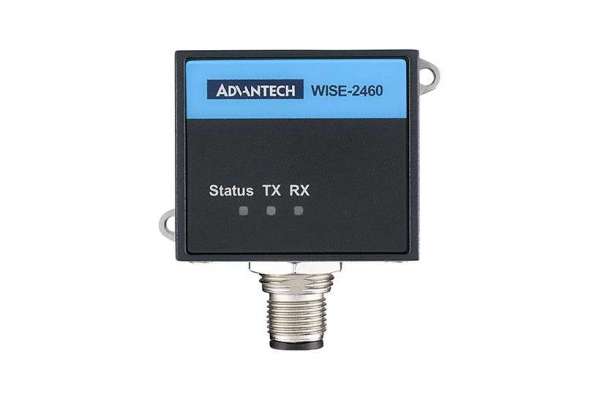

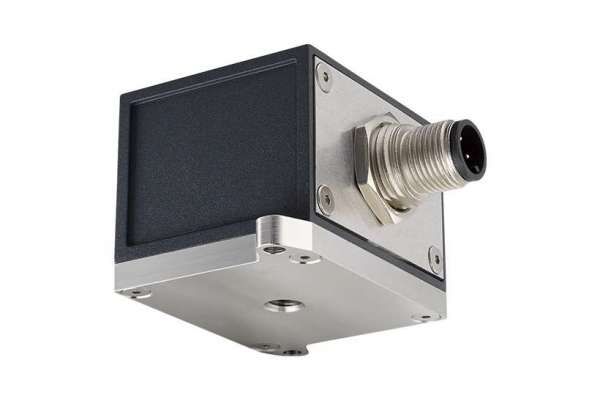

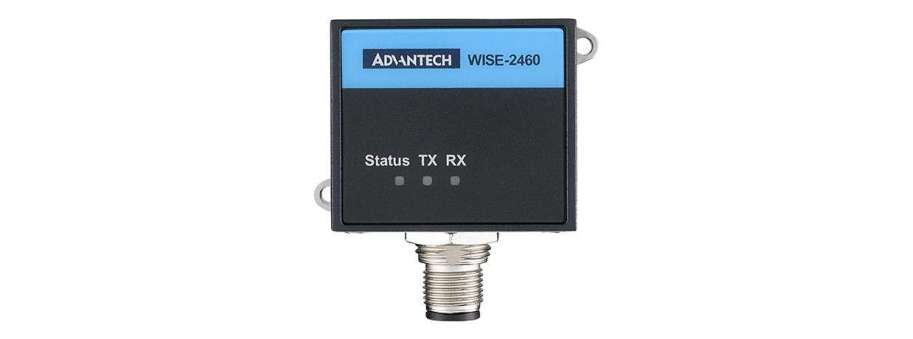

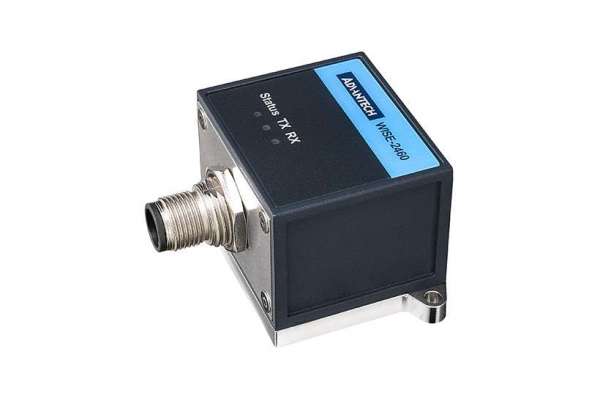

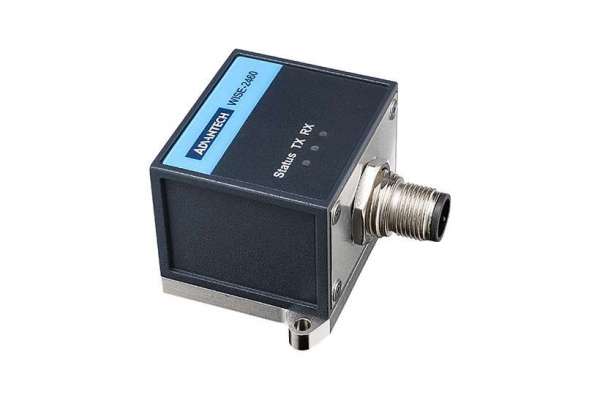

IP68 10KHz@1-axis Smart Vibration Sensor -20 ~ 105°C Advantech WISE-2460

Price and avalability

Partnumber Description Price VAT incl Avalability
WISE-2460-MA Smart Vibration Sensor(10Khz, wRS-485)  26 278,0

WISE-2460 is a robust RS-485 smart vibration sensor integrated with an ARM Cortex-M7 processor, 10KHz@1-axis high detection range accelerometer and temperature sensor. This powerful computing device balances the bandwidth between edge devices and the application service on the user side. WISE-2460 builds-in several measurements of vibration, such like velocity RMS, acceleration RMS, acceleration Peak, displacement and so on. By using Advantech WISE Studio utility, users can easily config all the setting, like ISO 10816 alarm threshold setting, customize the 10 detection ranges between 5 ~ 10,000Hz and others.

  • RS-485 Serial communication through Modbus/RTU protocols
  • 10KHz@1-axis frequency detection range
  • Velocity RMS, acceleration RMS, acceleration Peak, displacement, several measurement vibration data
  • Support max 10 customize detection ranges between 5 ~ 10,000Hz
  • ISO 10816 compliant
  • Supports wide temperature -20 ~ 105°C
  • IP68 enclosure design

Additional information

General

Power Input 10 ~ 30VDC
LED Indicator Status, TX, RX
Configuration Interface RS-485 (Modbus/RTU)
IP Class IP68
Mounting Stud mount, mounting pad and adhesives
Dimension (W x H x D) 58.4 x 36.7 x 40 mm
Certification CE

Environment

Operating Temperature -20°C ~ 105°C
Operating Humidity 10% ~ 95% RH
Storage Temperature -25°C ~ 120°C
Storage Humidity 5% ~ 95% RH

1-Axis Accelerometer Sensor

Axis Z
Frequency Range 5~10000Hz
Amplitude Range ±50g
Statistical Time-Domain Velocity RMS
Output Data Rate 32768Hz
Accuracy 5-4000Hz (5%); 4001~10000Hz (35%)
Noise 25 μg/√Hz in ±50 g range
Sensitivity Change Due to Temperature ±5%
