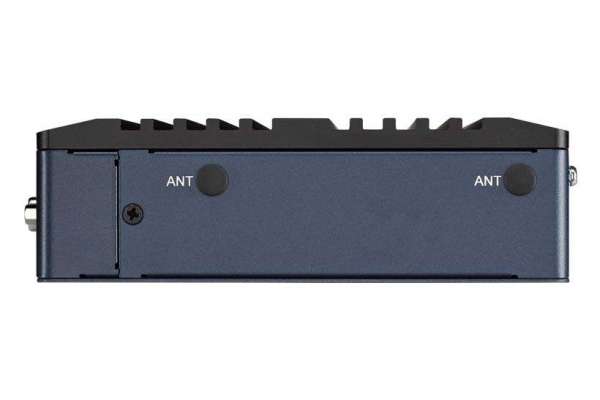

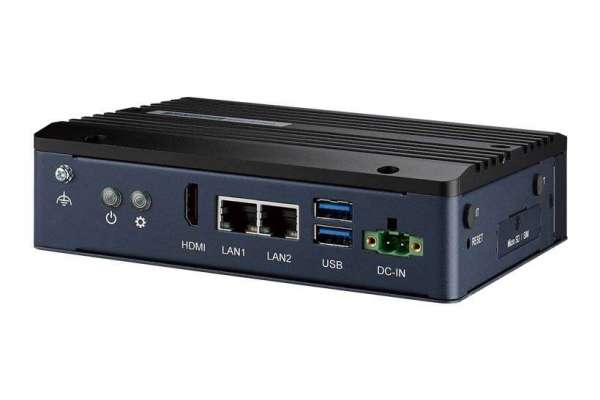

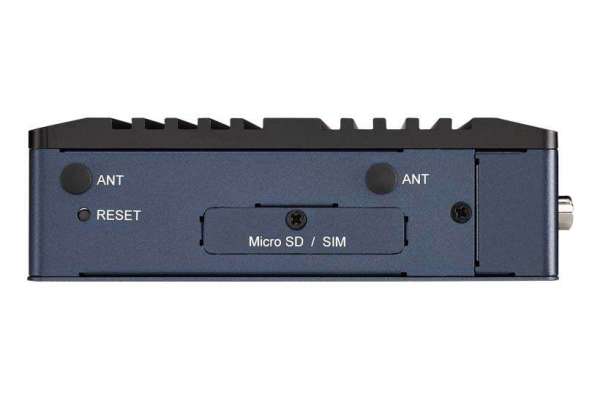

Edge AI Box PC Advantech EPC-R7200

Industrial-Grade Nvidia Jetson Barebone Box PC Advantech EPC-R7200

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EPC-R7200IJ-ALA1NN	NVIDIA Jetson Barenbone PC w/o UIO Expansion	18 916,9
EPC-R7200IJ-ALA100	NVIDIA Jetson Barenbone PC w/ UIO-4030	25 654,3
EPC-R7200IJ-ALA120	NVIDIA Jetson Barenbone PC w/ UIO-4032	25 253,1
EPC-R7200IJ-ALA140	NVIDIA Jetson Barenbone PC w/ UIO-4034	25 220,8
EPC-R7200IJ-ALA160	NVIDIA Jetson Barenbone PC w/ UIO-4036	26 664,1

• NVIDIA Jetson Module compatible Barebone PC
• Industrial and Expandable Design
• HDMI up to 3840 x 2160 at 60Hz resolution
• Dual GbE LAN, 2 USB3.2 Gen 1
• 1 Micro SD Socket & 1 Nano SIM Slot
• 1 M.2 3042 Key B Slot, 1 M.2 2230 Key E Slot
• 4 Kinds of Rear I/O for Each Vertical Focus: IEM, Self Service, Automation and Networking
• Qualified for Edge AI SRP of WISE-DeviceOn

Additional information

Model	EPC-R7200IJ-ALA100	EPC-R7200IJ-ALA120	EPC-R7200IJ-ALA140	EPC-R7200IJ-ALA160
Compatible Modules
NVIDIA Jetson Series	Nano / TX2 NX / Xavier NX	Nano / TX2 NX / Xavier NX	Nano / TX2 NX / Xavier NX	Nano / TX2 NX / Xavier NX
Graphics
HDMI	1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz	1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz	1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz	1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz
Graphics Engine	NVIDIA Maxwell GPU / Pascal GPU / Volta GPU on Jeston Modules	NVIDIA Maxwell GPU / Pascal GPU / Volta GPU on Jeston Modules	NVIDIA Maxwell GPU / Pascal GPU / Volta GPU on Jeston Modules	NVIDIA Maxwell GPU / Pascal GPU / Volta GPU on Jeston Modules
H/W Video Codec	Up to 4K encode/decode	Up to 4K encode/decode	Up to 4K encode/decode	Up to 4K encode/decode
Ethernet
Chipset	NVIDIA Jetson integrated RGMII and Intel 1GbE Controller	NVIDIA Jetson integrated RGMII and Intel 1GbE Controller	NVIDIA Jetson integrated RGMII and Intel 1GbE Controller	NVIDIA Jetson integrated RGMII and Intel 1GbE Controller
Speed	2 10/100/1000 Mbps	2 10/100/1000 Mbps	2 10/100/1000 Mbps	2 10/100/1000 Mbps
Indicator
LED	1 x Power LED; 1 x programmable LED	1 x Power LED; 1 x programmable LED	1 x Power LED; 1 x programmable LED	1 x Power LED; 1 x programmable LED

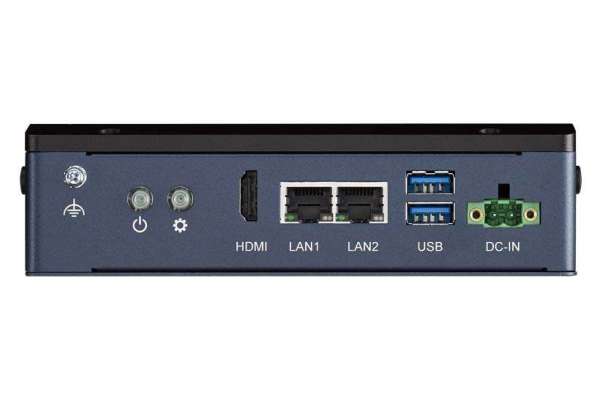

Front I/O
USB	2 x USB3.2 Gen 1 Type A	2 x USB3.2 Gen 1 Type A	2 x USB3.2 Gen 1 Type A	2 x USB3.2 Gen 1 Type A
GbE	2 x RJ45 for GbE	2 x RJ45 for GbE	2 x RJ45 for GbE	2 x RJ45 for GbE
Rear I/O	1 x RS-485, 1 x 2 wires RS-232 4 x DIs, 4 x DOs	2 x 2 wires RS-232 1 x GbE, 2 x USB 2.0	2 x 2 wires RS-232 1 x CAN Bus 2.0B	4 X GbE (Hub)
Expansion
M.2	1 M.2 2230 Key E Slot (USB2.0/PCIe/UART/I2S) 1 M.2 3042 Key B Slot (USB3.0/I2C)	1 M.2 2230 Key E Slot (USB2.0/PCIe/UART/I2S) 1 M.2 3042 Key B Slot (USB3.0/I2C)	1 M.2 2230 Key E Slot (USB2.0/PCIe/UART/I2S) 1 M.2 3042 Key B Slot (USB3.0/I2C)	1 M.2 2230 Key E Slot (USB2.0/PCIe/UART/I2S) 1 M.2 3042 Key B Slot (USB3.0/I2C)
SD Socket	1 Micro SD Socket	1 Micro SD Socket	1 Micro SD Socket	1 Micro SD Socket
SIM	1 Nano SIM Slot	1 Nano SIM Slot	1 Nano SIM Slot	1 Nano SIM Slot
Antenna Holes	4	4	4	4
Power
Power Supply Voltage	9-24V	9-24V	9-24V	9-24V
Power Type	2-pole lockable DC-in	2-pole lockable DC-in	2-pole lockable DC-in	2-pole lockable DC-in
Power Consumption	5 ~ 15 W (Depends on Module Selection)	5 ~ 15 W (Depends on Module Selection)	5 ~ 15 W (Depends on Module Selection)	5 ~ 15 W (Depends on Module Selection)
5 ~ 15 W (Depends on Module Selection)
Operating Temperature	-20~60 / -20~70*	-20~60 / -20~70*	-20~60 / -20~70*	-20~60 / -20~70*
Operating Humidity	5% ~ 95% relative humidity, non-condensing	5% ~ 95% relative humidity, non-condensing	5% ~ 95% relative humidity, non-condensing	5% ~ 95% relative humidity, non-condensing
Mechanica
Dimensions	152 x 138 x 42 mm	152 x 138 x 42 mm	152 x 138 x 42 mm	152 x 138 x 42 mm
Mounting	Wall mount, DIN Rail mount	Wall mount, DIN Rail mount	Wall mount, DIN Rail mount	Wall mount, DIN Rail mount
Weight	925g	925g	925g	925g
Operating System
Linux	Ubuntu	Ubuntu	Ubuntu	Ubuntu
Certifications	CE/FCC Class B	CE/FCC Class B	CE/FCC Class B	CE/FCC Class B
