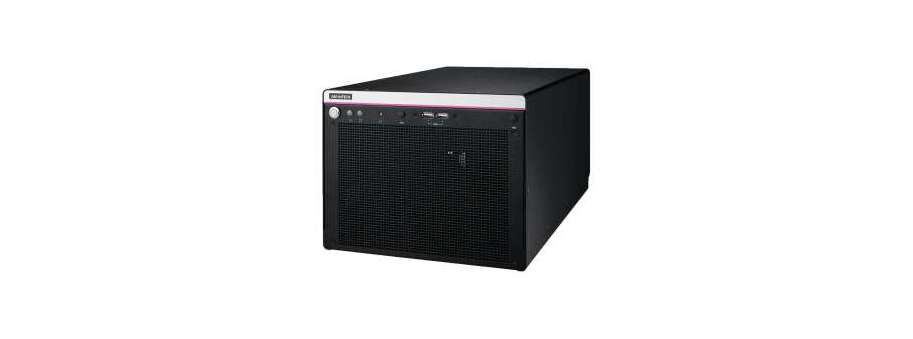

Edge AI system powered by Intel Bartlett Lake S Advantech AIR-411
- Powered by Intel Bartlett Lake S up to 65W TDP
- SPARKLE Intel® Arc™ Pro B60 supported
- Dual channel memory up to 96GB DDR5 5600MT/s
- Multiple I/O Expansion: 1x PCIe Gen 4, 1 x M.2 M Key (NVME) and 1x M.2 E Key (WiFi)
- High-performance Computing Architecture
- Supports High-Wattage GPUs (up to 400W/FHFL)
- Plug-n-play , HW/SW bundled for easy deployment
- Enterprise lifecycle & validation
Additional information
Processor System |
|
| CPU | Intel Bartlett Lake S Processors |
| Base Frequency | 1.6 GHz |
| Max, Turbo Frequency | 5.6 GHz |
| L3 Cache | 36 MB Intel® Smart Cache |
| TDP | Up to 65W |
| Up to 65W | Q670E / H610E |
Memory |
|
| Technology | Dual Channel DDR5, up to 5600 MHz (non-ECC) |
| Max. Capacity | 96GB (up to 48GB per SODIMM) |
| Socket | 2 x 262pin SODIMM |
Network |
|
| ETHERNET | up to 2500 Mb/s |
| Controller | LAN1: Intel i219 (GbE) LAN2: Intel i226 (2.5GbE) |
| Connector | 2 x RJ45 |
Display |
|
| HDMI | 1 x HDMI2.0b, supports max. resolution 4096 x 2160 @ 60 Hz |
| Display Port | 2 x DP++, DP1.4a, supports max. resolution 4096 x 2304 @ 60 Hz |
IO Ports |
|
| USB |
|
| Serial | 2 x ports (COM1 RS232, COM2 RS232/422/485) |
| GPIO | 1 x 8bit GPIO (optional) |
| Audio | 1 x (Line in/Line out/Mic in) |
Expansion |
|
| M.2 | 2230 E Key (PCIE x1; USB2.0) for Wi-Fi/BT |
| Add on Slot | PCIe x16 Gen4 (16GT/s) for discrete GPU card and storage devices |
Storage |
|
| M.2 | 1 x M.2 M Key NVME |
| SATA | 2 x 2.5" SATA SSD (Max Height 7mm) |
Power Requirements |
|
| Power Type | ATX/AT mode (Default ATX) |
| Power Input Voltage | 100-240V AC |
| Power Adapter | 850W power supply built-in |
Environment |
|
| Operational Temperature | 0 ~ 45 °C (w/o PCIe Card), 0~ 40 °C (w/ PCIe Card) |
| Storage Temperature | -40 ~ 85 °C |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
Mechanical |
|
| Dimensions (W x H x D) | 240 x 190 x 380.7 mm |
| Weight | 6.9 kg |
Operating System |
|
| OS | Windows 11 / Ubuntu 24.04 |
Software Support |
|
| Software API | Advantech Edge AI SDK compatible |
Certifications |
|
| EMC/Safety | CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate) |
