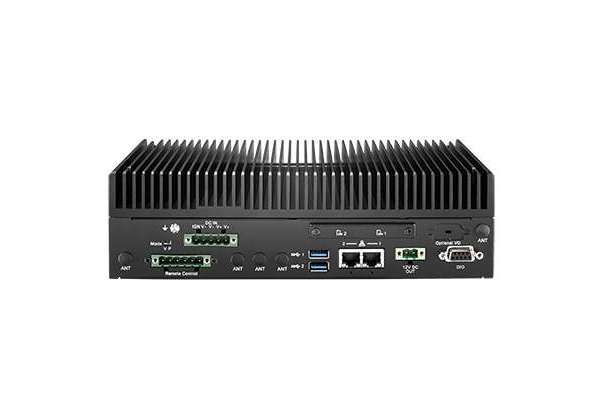

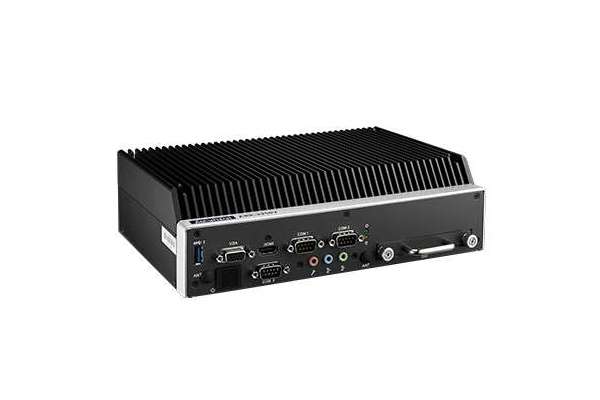

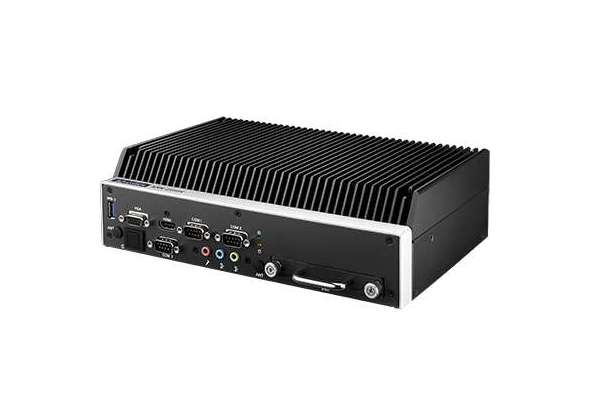

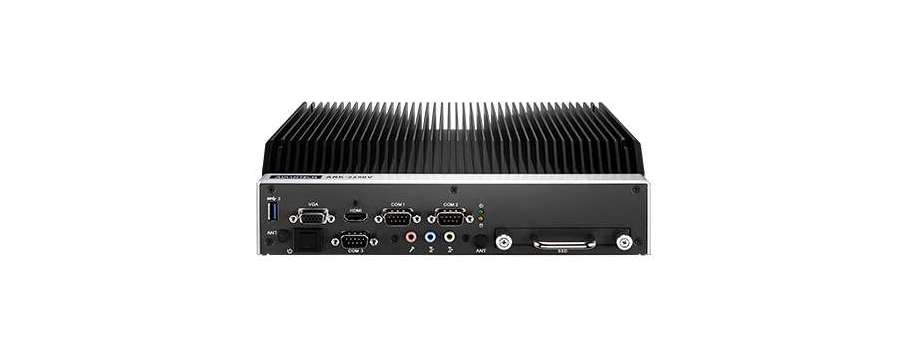

Rugged Embedded PC on 6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC FullHD NVR Advantech ARK-2250S
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-2250S-S9A1E | Компактний промисловий комп'ютер Advantech ARK-2250S для транспорту Ultra Rugged PC, Core i5-6442EQ 1.9G, HDMI+HDMI | 92 856,7 | |
| ARK-2250S-U0A1E | Компактний промисловий комп'ютер Advantech ARK Ultra Rugged PC, Core i7-6822EQ 2.0G, HDMI+HDMI | 112 766,0 |
6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC Rugged FullHD NVR
- Intel i7-6822EQ QC/ Intel i5-6442EQ QC SoC
- Extreme graphic performance, support up to 1080p 240fps video encode&decode
- Stackable extension design, option extension kit for applications
- Isolated 12 ~ 24VDC wide-range power input
- Built-in G-Sensor for tamper protection
- Option GPS for GIS application
- Diversity Communication Extensible, ex. WLAN, WWAN
- Anti-vibration & shock proof, certified by MIL-STD-810G
- Wide operating temperature support, up to -20 ~ 70 °C
- Certified for general standard, CE, FCC, CB, UL, CCC and BSMI
- Built-in Advantech remote management software WISE-PaaS/RMM
Additional information
| Part Number | ARK-2250S-S9A1E | ARK-2250S-U0A1E |
Processor |
||
| CPU | Intel i5-6442EQ QC SoC | Intel Core i7-6822EQ |
| Core Number | 4 | 4 |
| Frequency | 1.9 GHz | 2.0 GHz |
| L2 Cache | 6 MB | 8 MB |
| BIOS | AMI EFI | AMI EFI |
Memory |
||
| Technology | DDR4 2133MHz | DDR4 2133MHz |
| Max. Capacity | 32 GB | 32 GB |
| Socket | 2 x 260 pin SO-DIMM | 2 x 260 pin SO-DIMM |
Graphics |
||
| Chipset | QM170 | QM170 |
| Graphic Engine | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 |
| VGA | Up to 1920 x 1200 at 60 Hz | Up to 1920 x 1200 at 60 Hz |
| HDMI | HDMI 1.4a for HD video playback, 1080P at 60Hz | HDMI 1.4a for HD video playback, 1080P at 60Hz |
| Dual Display | VGA + HDMI (Std.) or Dual HDMI (by project) | VGA + HDMI (Std.) or Dual HDMI (by project) |
Ethernet |
||
| LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio |
||
| Interface | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
I/O |
||
| Serial port | 3 x RS-232/422/485 port with auto flow control | 3 x RS-232/422/485 port with auto flow control |
| USB | 3 x USB3.0 Type A |
3 x USB3.0 Type A |
| GPIO | 8-bit Programmable DIO |
8-bit Programmable DIO |
| CANBus | Optional | Optional |
Other |
||
| Watchdog Timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
| TPM | TPM2.0 (Infineon SLB9665) | TPM2.0 (Infineon SLB9665) |
Expansion |
||
| Mini PCIe | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key |
| Storage | ||
| 2.5" HDD/SSD | 1 x 2.5" SATA drive bay | 1 x 2.5" SATA drive bay |
| mSATA | 1 x full size mSATA socket (Mini PCIe #1) | 1 x full size mSATA socket (Mini PCIe #1) |
Software Support |
||
| Microsoft Windows | Windows 10, Windows 8.1, WES7, Windows 7 | Windows 10, Windows 8.1, WES7, Windows 7 |
| Linux | Support by project | Support by project |
Power |
||
| Power Type | ATX | ATX |
| Input Voltage | 12 ~ 24 VDC | 12 ~ 24 VDC |
Mechanical |
||
| Construction | Aluminum housing | Aluminum housing |
| Mounting | Wall mounting kit | Wall mounting kit |
| Dimensions | 260 x 73 x 160.2mm |
260 x 73 x 160.2mm |
| Weight | 3.2 Kg | 3.2 Kg |
Environment |
||
| Operational Temperature | -20 ~ 70 °C (-4 ~ 158 °F) with 0.7m/s air flow | -20 ~ 70 °C (-4 ~ 158 °F) with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Vibration during Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6 |
IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6 |
| Shock During Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 | IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 |
Certification |
||
| EMC | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI |
| Safety Certifications | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI |
