Workstation RCX-1400FR-RTX2080

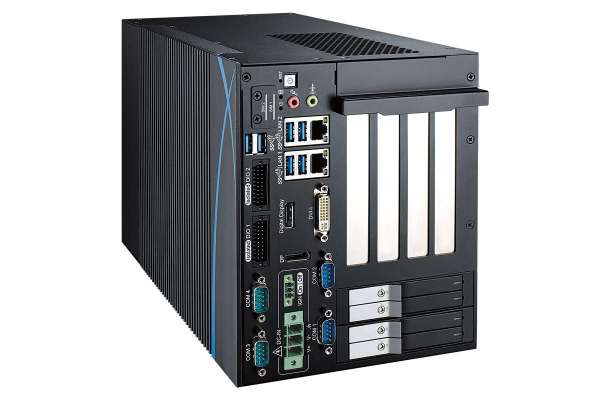

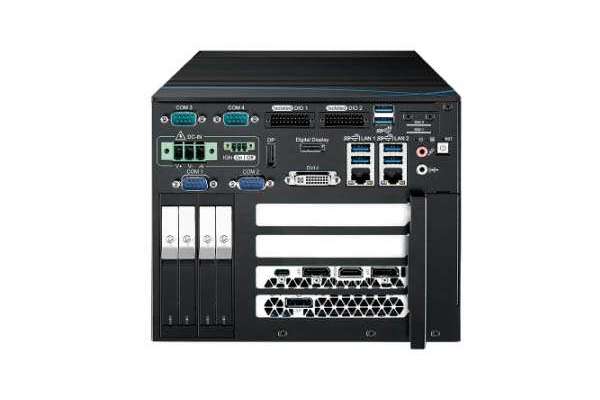

Graphics workstation Vecow RCX-1400FR-RTX2080

Industrial Computer >> Visualization embedded computers

Manufacturer: Vecow

Overview

Powered by 8th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake), workstation-grade Intel® C246 chipset, max 4352 CUDA® cores NVIDIA® GeForce RTX™ series geaphics engine supports new generation NVIDIA Turing™ GPU architecture, up to 8K resolution and 600% graphics performance enhanced than the former generation graphics engine. Featuring leading performance, system-oriented integration, multiple 10G USB 3.1 Gen 2 connections, 2 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS, multiple PCI/PCIe and M.2 expansions, Isolated DIO, smart manageability, 24V to 36V power input with 80V surge protection, ignition power control. Vecow RCX-1000 RTX Series GPU Computing System is your new generation solution for AI Computing applications.

Features

  • 6 cores 8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) processor with workstation-grade Intel® C246 Chipset
  • 4 DDR4 2666MHz memory, up tp 128GB (ECC/Non-ECC)
  • 6 external 10G USB 3.1 Gen 2, up to 10Gbps SuperSpeed data transfer
  • Powered by advanced NVIDIA Turing™ GPU architecture and all-new RTX platform, NVIDIA® GeForce RTX™ series graphics engine supports up to 6X the performance of previous generation graphics cards for real-time AI computing
  • 7 displays: 1 DVI, 1 HDMI, and 5 DisplayPort, up to 8K resolution
  • 2 independent GigE LAN support iAMT 12.0
  • 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
  • 4 front-access 2.5" SSD/HDD trays, RAID 0, 1, 5, 10 supported
  • 32 Isolated DIO, 4 COM RS-232/422/485
  • Storage : 4 SATA III, 1 CFast, 1 M.2
  • Expansion : 2 PCI/PCIe, 2 Mini PCIe/mSATA, 1 M.2
  • 24V to 36V DC Power Input with 80V Surge Protection
  • Configurable Ignition Power Control

Feature Highlights

New Generation AI Computing

  • Workstation-grade Platform : 6-core Intel Xeon/Core i7/i5/i3 + Intel C246 chipset (Coffee Lake), max 10% system performance enhanced than Intel Kaby Lake
  • 4 SO-DIMM sockets, up to 128GB DDR4 memory (ECC/Non-ECC), 4 times system productivity
  • NVIDIA GeForce RTX series graphics, max 600% graphics performance enhanced than former generation NVIDIA GeForce GTX graphics engine
  • High-speed data transfer : USB 3.1 Gen 2 (10G), PCIe 3.0 (8GT/s), SATA III (6G), USB 3.0 (5G), GigE LAN (1G)

System-oriented Integration

  • 7 independent displays, up to 8K Resolution
  • High-speed data transfer : USB 3.1 Gen 2 (10G), PCIe 3.0 (8GT/s), SATA III (6G), USB 3.0 (5G), GigE LAN (1G)
  • Optimized power budget for independent graphics operation
  • Wide range power input with Surge Protection
  • Programmable Ignition Power Control
  • Smart Circuit Protection
  • Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch

Versatile Configurations

  • Multiple DVI, HDMI and DisplayPort interfaces, max 7 independent HD displays
  • 2 independent GigE LAN, 6 external 10G USB 3.1 Gen 2
  • 2 SIM sockets for multiple WiFi/4G/3G/LTE/GPRS/UMTS
  • 32 Isolated DIO, 4 COM RS-232/422/485
  • Storage : 4 front-access 2.5” SSD trays, 1 M.2
  • Expansion : 2 PCI/PCIe slots, 2 Mini PCIe/mSATA, 1 M.2

Trusted Reliability

  • RAID 0, 1, 5, 10 Data Protection
  • 24V to 36V DC-in with 80V Surge Protection
  • 16-mode Ignition Power Control
  • -25°C to 45°C Operation
  • Always-on non-stop wireless data transfer
  • Anti-shock, Anti-vibration
  • EN50155 & EN50121-3-2 compliant

Additional information

System
Processor

6 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake-S)

Chipset Intel® C246 Chipset
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/ 422/ 485 (ESD 8KV)
USB

- 6 USB 3.1 Gen 2 (External)

- 1 USB 2.0 (Internal)

Isolated DIO

32 Isolated DIO : 16 DI, 16 DO

LED Power, HDD
SIM Card  2 External SIM Socket
Expansion
Mini PCIe

2 Full-size Mini PCIe sockets for PCIe/USB/External SIM Card/mSATA

M.2 1 M.2 Key E Socket
PCI/PCIe Up to 2 PCI/PCIe Slot, by request
Graphics
Graphics Processor

- Intel® UHD graphics P630/630

- NVIDIA® GeForce RTX™ 2080 Graphics

Interface

7 independent displays :

- 1 DVI : Up to 1920 x 1080 @60Hz

- 3 DisplayPort : Up to 7680 x 3840 @60Hz

- 1 DisplayPort : Up to 4096 x 2304 @60Hz

- 1 Digital Display : Up to 4096 x 2304 @60Hz

- 1 HDMI : Up to 4096 x 2160 @60Hz

Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA

2 SATA III (Mini PCIe type, 6Gbps)

Storage Device

- 4 Front-access 2.5" SSD/HDD Tray

- 1 M.2 Key M Socket

Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input

- 24V to 36V DC-in

- 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L x H) 330mm x 210mm x 172mm (12.99" x 8.27" x 6.77")
Weight 6.8 kg (15 lb)
Mounting

Wallmount by mounting bracket

Environment
Operating Temperature 25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/Vibration

- IEC 61373 : 2010

- Railway Applications : Rolling Stock Equipment, Shock and Vibration Test

EMC CE, FCC, EN50155, EN50121-3-2
