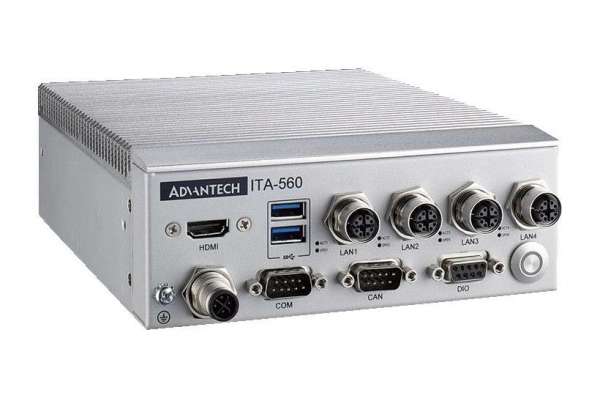

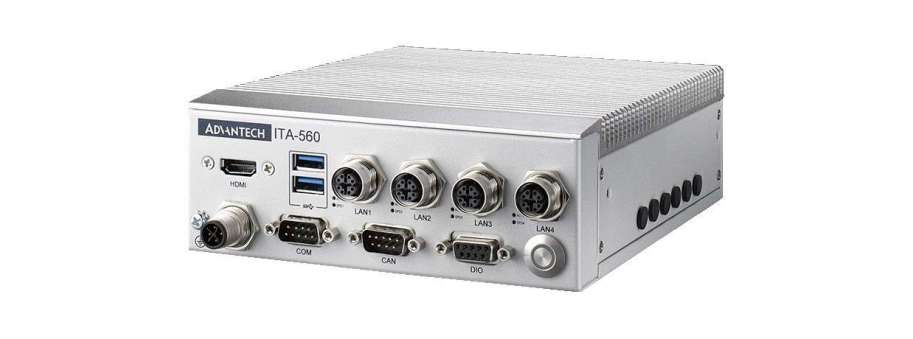

AI Inference Box Computer Powered by NVIDIA® Jetson Orin™ NX for Railway Applications Advantech ITA-560NX
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ITA-560NX-LOA1 | ITA-560 NV Jetson Orin NX_16G AI computing 24V | 171 695,0 |
- Fanless box computer designed for AI inference
- Embedded NVIDIA® Jetson Orin™ NX platform
- Compliant with EN 50155 OT1 and EN 50121-3-2 EMC standards
- Rugged M12 connectors suitable for harsh, industrial environments
- 1 x Mini PCIe, 1 x M.2 (E-key),1 x M.2 (M-key) and 1 x M.2 (B-key) for easy expansion
- Bundled with Linux Ubuntu 20.04 operating system
Additional information
System |
|
| GPU |
|
| CPU |
|
| DLA | 20 TOPS each (Sparse INT8) |
Memory |
|
| Max. Capacity | 16 GB 128-bit LPDDR5 102.4 GB/s |

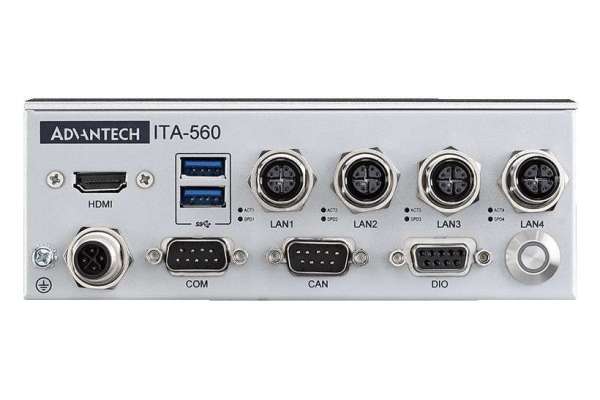

I/O - External |
|
| Display | 1 x HDMI |
| CAN | 1 x CAN, DB9 |
| USB | 2 x USB 3.0 type A |
| Serial Port | 1 x RS-232/RS-422/RS-485, DB9 |
| DI/O | 1 x 8bit (4in/4out), DB9 |
I/O - Internal (Pin Header) |
|
| CAN | 1 x CAN, DB9 (optional) |
| OTG USB | 1 x Micro USB |
| Serial Port | 1 x RS-232/RS-422/RS-485, DB9 (optional) |
Ethernet |
|
| Controller | Intel® I210-IT |
| Interface | 10/100/1000 Mbps |
| Connector | 4 x M12 (X-coded) |
Expansion |
|
| Mini PCIe | 1 x Mini PCIe slot |
| M.2 |
|
| SIM | 1 x Nano SIM card slot |

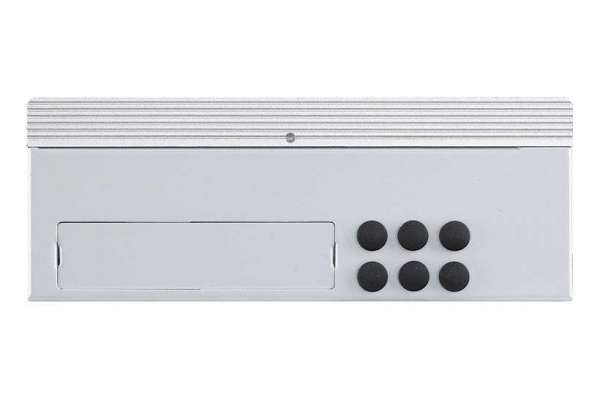

| Antenna | 6 |
Power |
|
| Input Range | 24/110VDC |
| Connector | 1 x M12 (S-coded) |
Environmental |
|
| Operating Temperature | -25 ~ 55 °C/-13 ~ 131 °F |
| Storage Temperature | -40 ~ 85 °C/-40 ~ 185 °F |
| Humidity | 5% ~ 95% @ 40 °C/104 °F (non-condensing) |
Mechanical |
|
| Dimensions (W x H x D) | 190 x 60 x 160 mm/7.48 x 2.36 x 6.29 in |
| Mount Options | Wall mount |
Certification |
|
| EMC | CE, FCC, BSMI, CCC |
| Satety | CE, FCC, BSMI, CCC |
EN50155 Compliance |
|
| Ambient Temperature | -25 ~ 55 °C/-13 ~ 131 °F (EN 50155 OT1) |
| Shock and Vibration | IEC 61373 body mount class B |
| Voltage Interruptions | Class S2 |
| Supply Change Over | Class C1 |
| EMC | EN 50121-3-2 |
