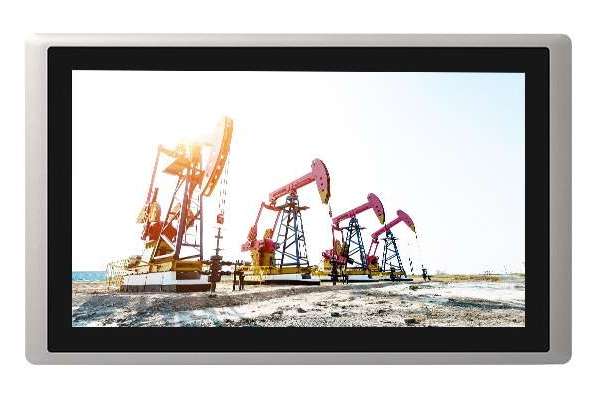

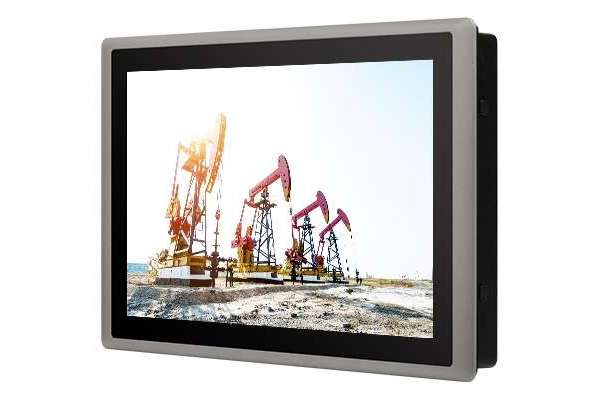

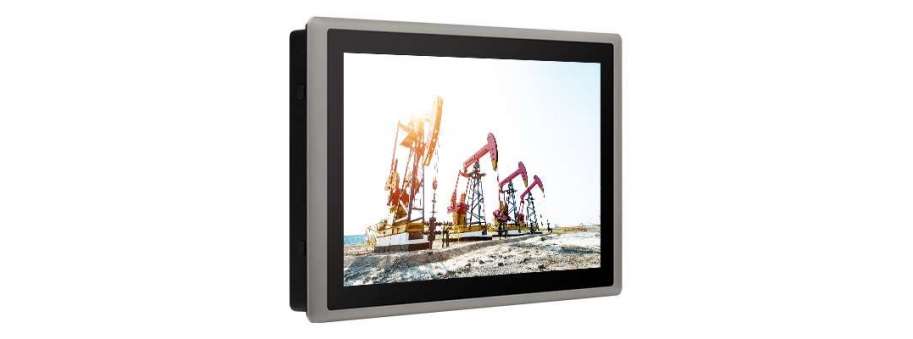

15.6" TFT-LCD Full HD 16:9 Sunlight Readable Modular with 12th Gen. Intel® Core™ i5 / i3 Processor & Projected Capacitive Touch Cincoze CS-W115FH/P2202
The CS-100/P2202 series is a sunlight-readable high-performance panel PC that provides ultra-high brightness of up to 1,800 nits. It is equipped with an Intel® Core™ U-series (Alder Lake-P) processor that provides a complete selection of screen sizes, ratios, and brightnesses. Rich I/O, flexible expansion, rugged, easy on-site maintenance, and other features make the CS-100/P2202 series the best choice for outdoor kiosk or HMI applications.
- 15.6” TFT-LCD 1920x1080 (Full HD) Resolution with Projected Capacitive Touch
- Onboard Intel® Alder Lake-P U-Series Core™ Processor
- 2x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
- Ultra High Brightness up to 1,200 nits
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- Designed with Aluminum Die-cast Front Bezel
- Front Panel IP65 Compliant
Additional information
Display |
|
| LCD Size | 15.6" (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) |
| Brightness (cd/m2) | 1200 |
| Contrast Ratio | 800 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) |
| Viewing Angle (H-V) | 178 / 178 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touch Screen | Projected Capacitive |
Physical |
|
| Dimension ( W x D x H ) | 420 x 254 x 66.2 mm |
| Weight Information | 3.58 kg |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel |
Power |
|
| Power Consumption | 25W |
Environment |
|
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow) |
| Storage Temperature | -40°C to 80°C |
| Relative Humidity | 90% RH @ 39°C (non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
System |
|
| Processor |
Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 1 |
| Memory | 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB |
| BIOS | AMI BIOS |
Graphics |
|
| Graphics Engine |
|
| Maximum Display Output | Supports Quad Independent Display |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) |
| DP | 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz |
| HDMI | 1x HDMI Connector (3840 x 2160 @30Hz) |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) |
I/O |
|
| LAN |
2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB |
|
| DIO | 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block |
Storage |
|
| SSD/HDD | 2x 2.5” SATA HDD/SSD Bay (SATA3.0) |
| RAID | Support RAID 0/1 |
Expansion |
|
| Mini PCI Express | 2x Full-size Mini-PCIe Socket |
| PCI Express |
1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 16 for P2202E |
| SIM Socket | 1x SIM Socket |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
Power |
|
| Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block |
| Max. Power Consumption |
i5-1245UE CPU: 95.06W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load duri |
Operating System |
|
| Windows | Windows®11, Windows®10 |
| Linux | Ubuntu Desktop 22.04 LTS |
Physical |
|
| Dimension( W x D x H ) |
254.5 x 190 x 41.5 mm (for P2202) 254.5 x 190 x 61 mm (for P2202E) |
| Weight Information |
2.22 kg (for P2202) 2.74 kg (for P2202E) |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / VESA / CDS / DIN Rail |
| Physical Design |
|
Environment |
|
| Operating Temperature | 40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock | Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) |
| Vibration |
|
| EMC |
|
